Waveshare RM500U-CN 5G HAT Quad Antennas LTE-A Multi Band Module Board for Raspberry Pi
Waveshare RM500U-CN 5G HAT Quad Antennas LTE-A Multi Band Module Board for Raspberry Pi
In Stock
Processed in 0–3 calendar days
Regular price
R 3,889.00
Regular price
Sale price
R 3,889.00
Free shipping on this item
Pay monthly with
Pay with Mobicred
Mobicred is a revolving credit facility. One monthly account payment covers your purchases.
- Interest and fees apply. Your repayment amount, interest rate and applicable fees are set out in your Mobicred agreement.
- Credit is subject to approval and an affordability assessment. You need an approved Mobicred account and sufficient available credit.
Choose Payfast at checkout, then select Mobicred on the Payfast payment page where it is available.
Mobicred credit is provided by RCS Cards Proprietary Limited, trading as Mobicred. RCS is a registered credit provider (NCRCP38). Read Mobicred terms and conditions
Quantity
Free Shipping over R750
R49 on orders of R750 or less. Duties included, no VAT collected. Read policy ›
Delivery timeline
1. Order processing (0–3 calendar days)
Order verified and dispatched from our International Fulfillment Center (China). Tracking details are provided by email.
2. Transit (8–14 business days)
Your package is shipped to South Africa through KifTech’s Delivered Duty Paid (DDP) delivery process. The shipping method is shown in your cart and confirmed at checkout.
Shipping protection Read full policy ›
Late Delivery
If your order arrives later than the estimated timeframe, you may request a R20 store credit after delay verification.
15-calendar-day tracking
If your order has not been delivered and tracking shows no movement for 15 consecutive calendar days after dispatch, contact us. After verification and investigation, we may offer a free reshipment or refund.
30-calendar-day non-delivery
If your order has not been delivered within 30 calendar days after dispatch, contact us. After verification, you may choose a refund to your original payment method or a replacement shipment.
Duties included at checkout, no VAT collected
Read shipping and duties policy ›KifTech uses a Delivered Duty Paid (DDP) delivery process for all orders. Applicable import duties and customs fees are included in the price shown at checkout and handled before delivery. No VAT is collected from you at checkout.
- Import duties – Included in the price shown at checkout where applicable
- Customs fees – Included in the price shown at checkout and handled before delivery
- Shipping – Free on orders over R750. R49 standard rate on orders of R750 or less.
✓ The checkout total shows the product amount and any shipping charge. Applicable import duties and customs fees are included in the price shown at checkout. No VAT is collected from you at checkout. No separate duties or customs-fee payment should be required on delivery.
30-day returns & 6-month fault cover
Read full return policy ›Refund timeline
Processed to your original payment method within 5 calendar days after your return is received and inspected.
Shipping fee
Return shipping support is provided for confirmed faulty items. Customers cover return shipping for change-of-mind returns. No restocking or handling fee is deducted from the refund of change-of-mind returns. The original shipping fee is not refunded for change-of-mind returns. For an approved faulty, damaged, or incorrect item, where a refund is given, the original shipping fee is refunded as well as the item price.
Exchanges
We do not process direct exchanges for change-of-mind returns. If you would like a different item, model, colour, size, or variant, return the original item under the Change-of-Mind Returns terms and place a new order for your preferred item. Faulty, damaged, or incorrect items may be replaced at no additional shipping cost once the return has been reviewed and approved. Where applicable, your rights to a repair, replacement, or refund remain unchanged.
Warranty
7-day cooling-off for online orders (refund of the price paid, less return costs; the original shipping fee is not refunded), 30 days for unused change-of-mind returns, plus a standard 6-month warranty for manufacturing faults.
Encrypted Checkout
Read privacy policy ›Checkout uses encrypted payment processing to help protect your personal and payment details.
Accepted payment methods:
Description
Features
1. Comes with RM500U-CN core module, supports 5G and LTE-A multi network types, supports 5G NSA and SA networking
2. Integrates extensive network protocols, with multi drivers and software support, compatible with different OS including Windows / Linux / Android

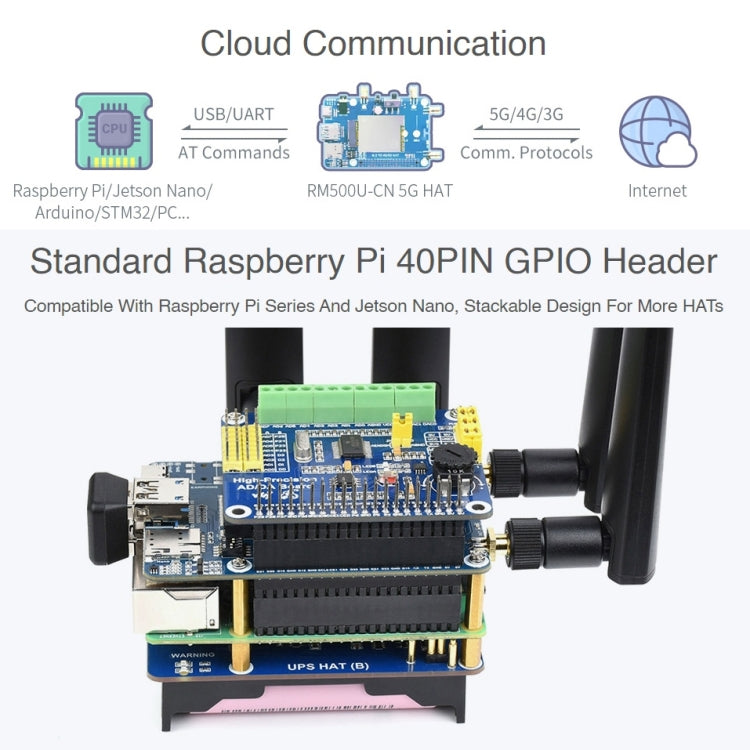

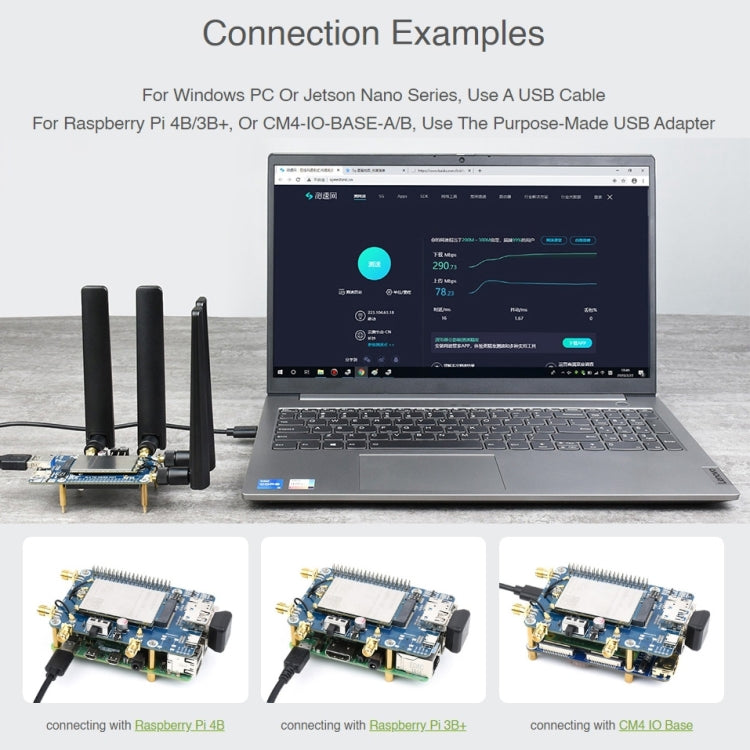

3. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication

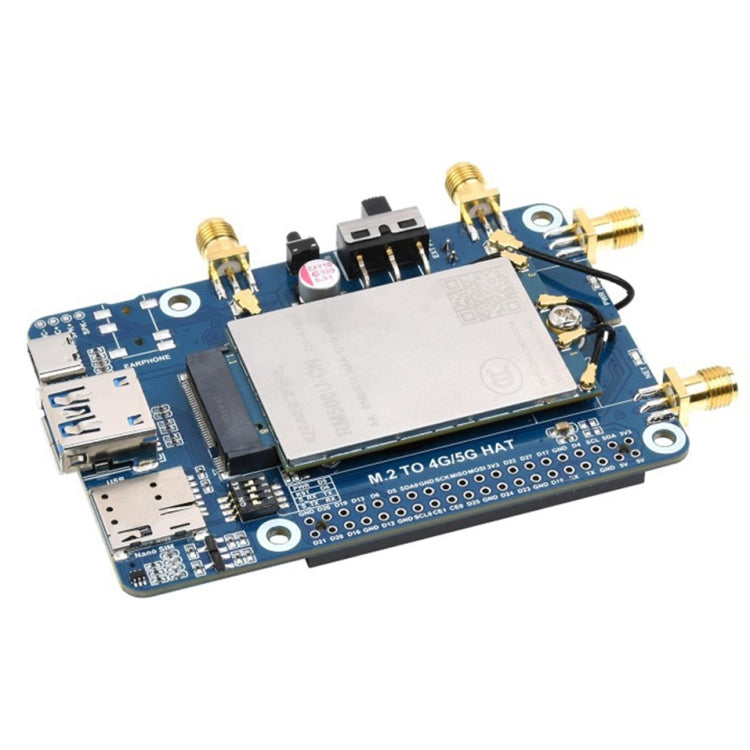

4. Standard M.2 B KEY slot, compatible with different 5G modules: RM500U-CN / RM500Q-CN / RM500Q-GL series
5. Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
6. Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
7. Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
8. 2x SIM card slot, dual card single standby, switchable via AT command
9. High efficiency power supply circuit, up to 3A output current
Specifications
Frequency band:
1. 5G:
- 5G NR: 3GPP Release 15 NSA/SA operation, Sub-6 GHz
- 5G NR NSA: n41, n78, n79
- 5G NR SA: n1, n28, n41, n77, n78, n79
- Downlink: 4 x 4 MIMO n1, n41, n77, n78, n79
2. LTE:
- LTE Category: Downlink Cat 12, uplink Cat 13
- LTE-FDD: B1, B2, B3, B5, B7, B8, B20, B28
- LTE-TDD: B34, B38, B39, B40, B41
- Downlink 2 x 2 MIMO: B1, B2, B3, B5, B7, B8, B20, B28, B34, B38, B39, B40, B41
3. UMTS: WCDMA: B1, B2, B5, B8
Data rate:
1. 5G SA Sub-6: Downlink 2 Gbps; uplink 1 Gbps
2. 5G NSA Sub-6: Downlink 2.2 Gbps; uplink 575 Mbps
3. LTE: Downlink 600 Mbps; uplink 150 Mbps
4. UMTS: Downlink 42.2 Mbps; uplink 11 Mbps
Other:
1. Operating temperature: -30 degree C ~ +75 degree C
2. Extension temperature: -40 degree C ~ +85 degree C

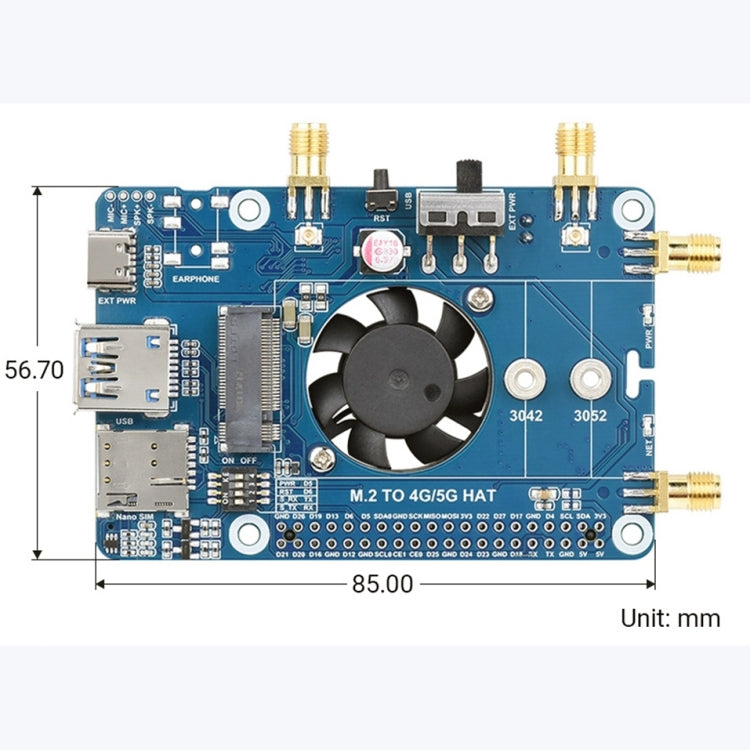

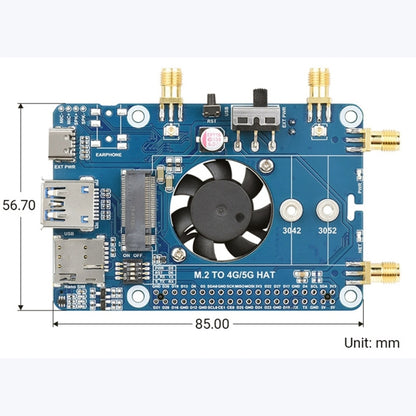

3. Module dimensions: 30.0 x 52.0 x 2.3 (mm)
4. Module weight: 8.9 (g)
Package List
1. M.2 TO 4G/5G HAT x 1
2. RM500U-CN x 1
3. Antenna 4pcs x 1
4. IPEX adapter cable 4pcs x 1
5. 2*20PIN pin header x 1
6. 5V 3A Type-C power adapter x 1
7. Dual plug USB3.0 cable x 1
8. USB3.0 adapter x 1
9. USB2.0 adapter x 1
10. SMA protective cap 4pcs x 1
11. Screws pack x 1
1. Comes with RM500U-CN core module, supports 5G and LTE-A multi network types, supports 5G NSA and SA networking
2. Integrates extensive network protocols, with multi drivers and software support, compatible with different OS including Windows / Linux / Android
3. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
4. Standard M.2 B KEY slot, compatible with different 5G modules: RM500U-CN / RM500Q-CN / RM500Q-GL series
5. Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
6. Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
7. Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
8. 2x SIM card slot, dual card single standby, switchable via AT command
9. High efficiency power supply circuit, up to 3A output current
Specifications
Frequency band:
1. 5G:
- 5G NR: 3GPP Release 15 NSA/SA operation, Sub-6 GHz
- 5G NR NSA: n41, n78, n79
- 5G NR SA: n1, n28, n41, n77, n78, n79
- Downlink: 4 x 4 MIMO n1, n41, n77, n78, n79
2. LTE:
- LTE Category: Downlink Cat 12, uplink Cat 13
- LTE-FDD: B1, B2, B3, B5, B7, B8, B20, B28
- LTE-TDD: B34, B38, B39, B40, B41
- Downlink 2 x 2 MIMO: B1, B2, B3, B5, B7, B8, B20, B28, B34, B38, B39, B40, B41
3. UMTS: WCDMA: B1, B2, B5, B8
Data rate:
1. 5G SA Sub-6: Downlink 2 Gbps; uplink 1 Gbps
2. 5G NSA Sub-6: Downlink 2.2 Gbps; uplink 575 Mbps
3. LTE: Downlink 600 Mbps; uplink 150 Mbps
4. UMTS: Downlink 42.2 Mbps; uplink 11 Mbps
Other:
1. Operating temperature: -30 degree C ~ +75 degree C
2. Extension temperature: -40 degree C ~ +85 degree C
3. Module dimensions: 30.0 x 52.0 x 2.3 (mm)
4. Module weight: 8.9 (g)
Package List
1. M.2 TO 4G/5G HAT x 1
2. RM500U-CN x 1
3. Antenna 4pcs x 1
4. IPEX adapter cable 4pcs x 1
5. 2*20PIN pin header x 1
6. 5V 3A Type-C power adapter x 1
7. Dual plug USB3.0 cable x 1
8. USB3.0 adapter x 1
9. USB2.0 adapter x 1
10. SMA protective cap 4pcs x 1
11. Screws pack x 1
Specifications
- Brand
- WAVESHARE
- Product type
- LCD & LED Display Module
- SKU
- DIY0255
- Dispatch facility
- International Fulfillment Center (China)
