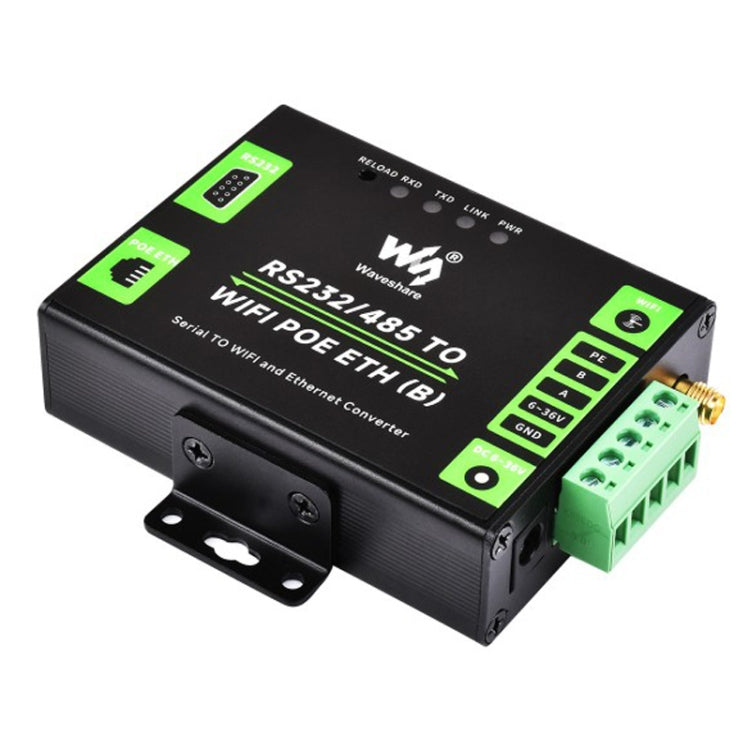

Waveshare Industrial Grade Serial Server RS232/485 to WiFi / Ethernet RJ45 Network Port with POE Support
Waveshare Industrial Grade Serial Server RS232/485 to WiFi / Ethernet RJ45 Network Port with POE Support
In Stock
Processed in 0–3 calendar days
Regular price
R 1,009.00
Regular price
Sale price
R 1,009.00
Free shipping on this item
Pay monthly with
Pay with Mobicred
Mobicred is a revolving credit facility. One monthly account payment covers your purchases.
- Interest and fees apply. Your repayment amount, interest rate and applicable fees are set out in your Mobicred agreement.
- Credit is subject to approval and an affordability assessment. You need an approved Mobicred account and sufficient available credit.
Choose Payfast at checkout, then select Mobicred on the Payfast payment page where it is available.
Mobicred credit is provided by RCS Cards Proprietary Limited, trading as Mobicred. RCS is a registered credit provider (NCRCP38). Read Mobicred terms and conditions
Quantity
Free Shipping over R750
R49 on orders of R750 or less. Duties included, no VAT collected. Read policy ›
Delivery timeline
1. Order processing (0–3 calendar days)
Order verified and dispatched from our International Fulfillment Center (China). Tracking details are provided by email.
2. Transit (8–14 business days)
Your package is shipped to South Africa through KifTech’s Delivered Duty Paid (DDP) delivery process. The shipping method is shown in your cart and confirmed at checkout.
Shipping protection Read full policy ›
Late Delivery
If your order arrives later than the estimated timeframe, you may request a R20 store credit after delay verification.
15-calendar-day tracking
If your order has not been delivered and tracking shows no movement for 15 consecutive calendar days after dispatch, contact us. After verification and investigation, we may offer a free reshipment or refund.
30-calendar-day non-delivery
If your order has not been delivered within 30 calendar days after dispatch, contact us. After verification, you may choose a refund to your original payment method or a replacement shipment.
Duties included at checkout, no VAT collected
Read shipping and duties policy ›KifTech uses a Delivered Duty Paid (DDP) delivery process for all orders. Applicable import duties and customs fees are included in the price shown at checkout and handled before delivery. No VAT is collected from you at checkout.
- Import duties – Included in the price shown at checkout where applicable
- Customs fees – Included in the price shown at checkout and handled before delivery
- Shipping – Free on orders over R750. R49 standard rate on orders of R750 or less.
✓ The checkout total shows the product amount and any shipping charge. Applicable import duties and customs fees are included in the price shown at checkout. No VAT is collected from you at checkout. No separate duties or customs-fee payment should be required on delivery.
30-day returns & 6-month fault cover
Read full return policy ›Refund timeline
Processed to your original payment method within 5 calendar days after your return is received and inspected.
Shipping fee
Return shipping support is provided for confirmed faulty items. Customers cover return shipping for change-of-mind returns. No restocking or handling fee is deducted from the refund of change-of-mind returns. The original shipping fee is not refunded for change-of-mind returns. For an approved faulty, damaged, or incorrect item, where a refund is given, the original shipping fee is refunded as well as the item price.
Exchanges
We do not process direct exchanges for change-of-mind returns. If you would like a different item, model, colour, size, or variant, return the original item under the Change-of-Mind Returns terms and place a new order for your preferred item. Faulty, damaged, or incorrect items may be replaced at no additional shipping cost once the return has been reviewed and approved. Where applicable, your rights to a repair, replacement, or refund remain unchanged.
Warranty
7-day cooling-off for online orders (refund of the price paid, less return costs; the original shipping fee is not refunded), 30 days for unused change-of-mind returns, plus a standard 6-month warranty for manufacturing faults.
Encrypted Checkout
Read privacy policy ›Checkout uses encrypted payment processing to help protect your personal and payment details.
Accepted payment methods:
Description
Features:
1. RS232/485 device data collector/IoT gateway specially designed for industrial environments.

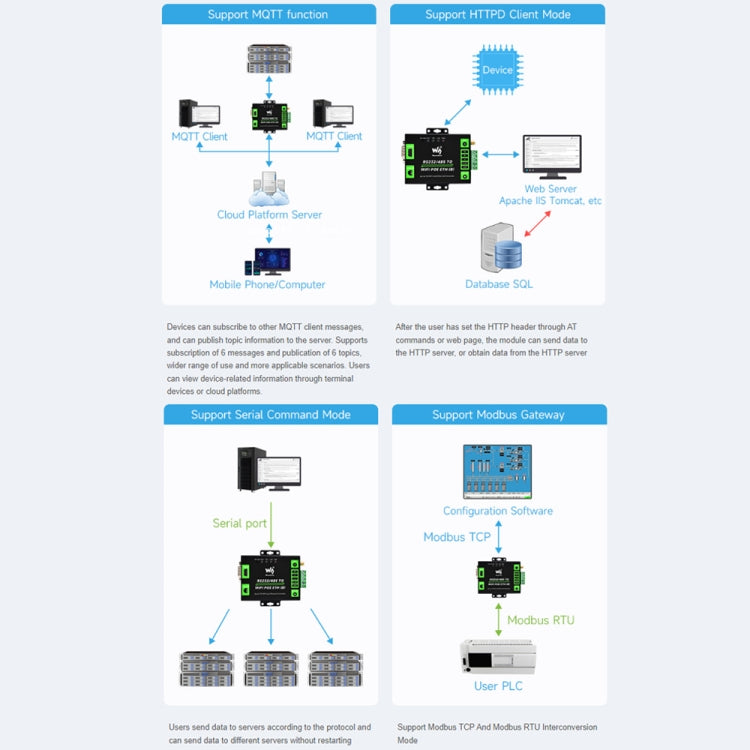

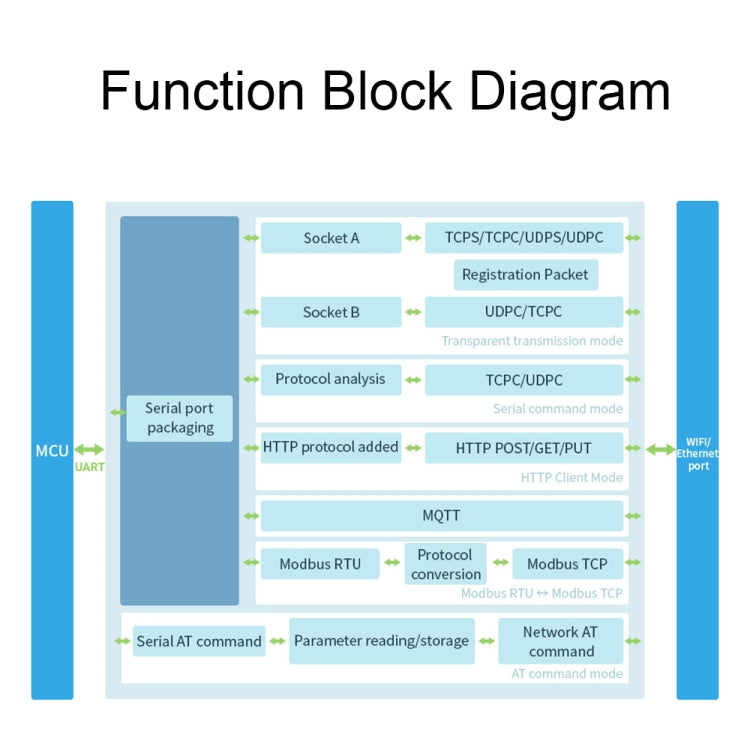

2. Integrate multiple functions into one, including serial port server, Modbus gateway, MQTT gateway, serial port to HTTPD client, etc.

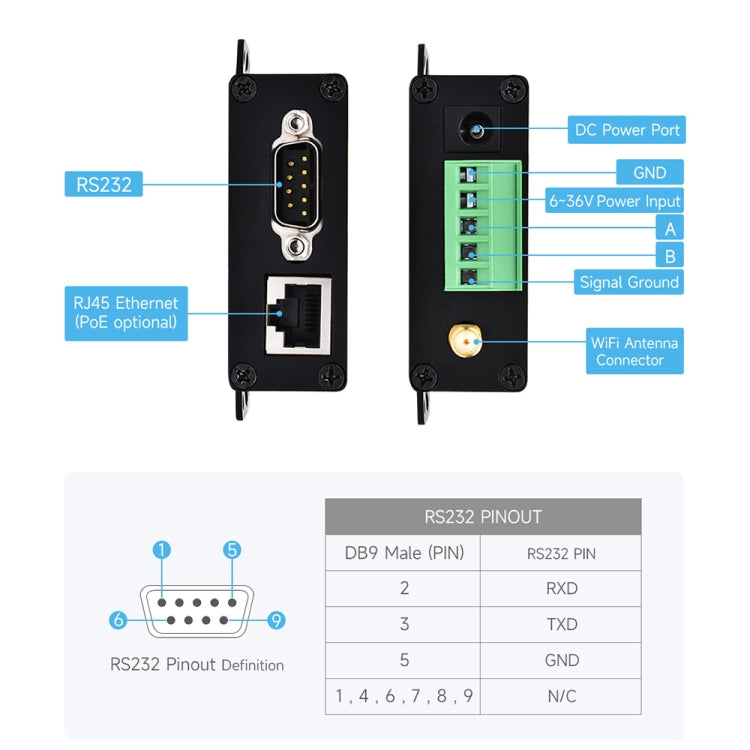

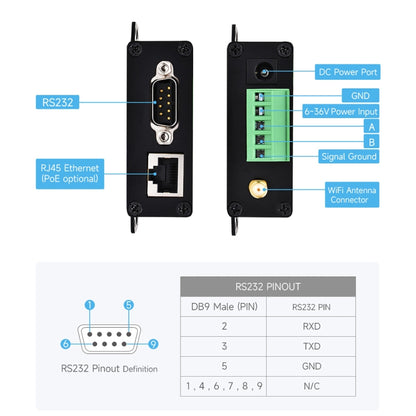

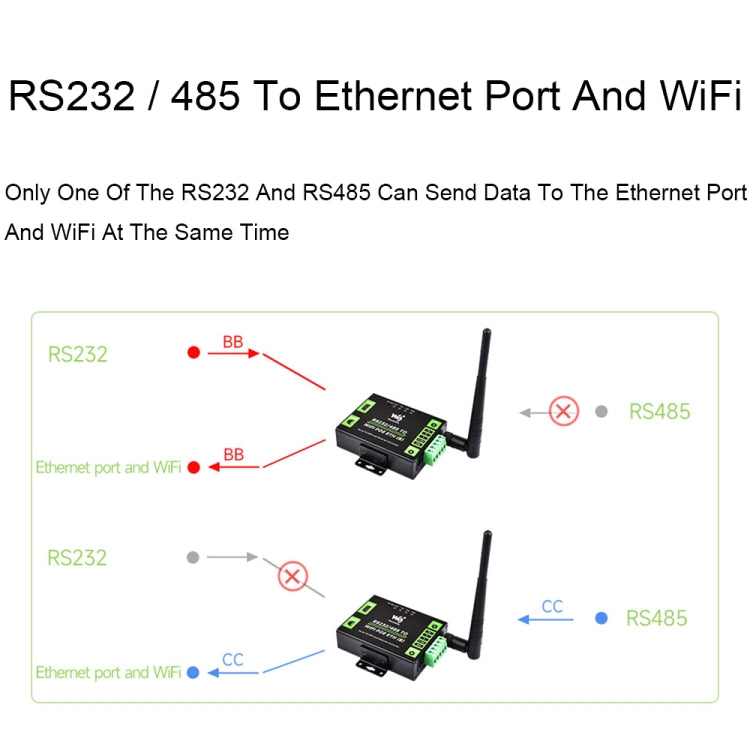

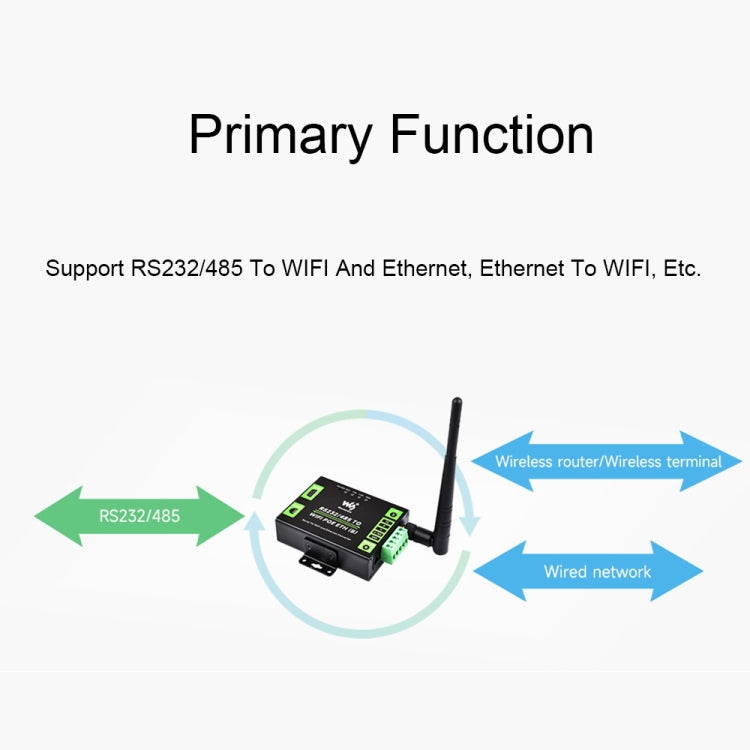

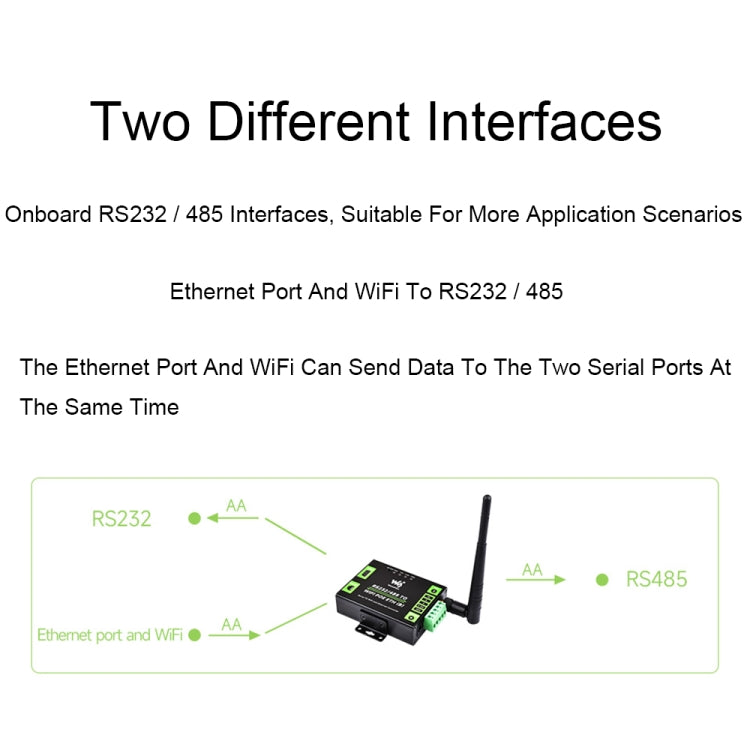

3. The module has RS232, RS485, WIFI, and Ethernet interfaces, which can realize serial to WIFI, serial to WIFI and other functions; Ethernet, Ethernet to WIFI, etc.

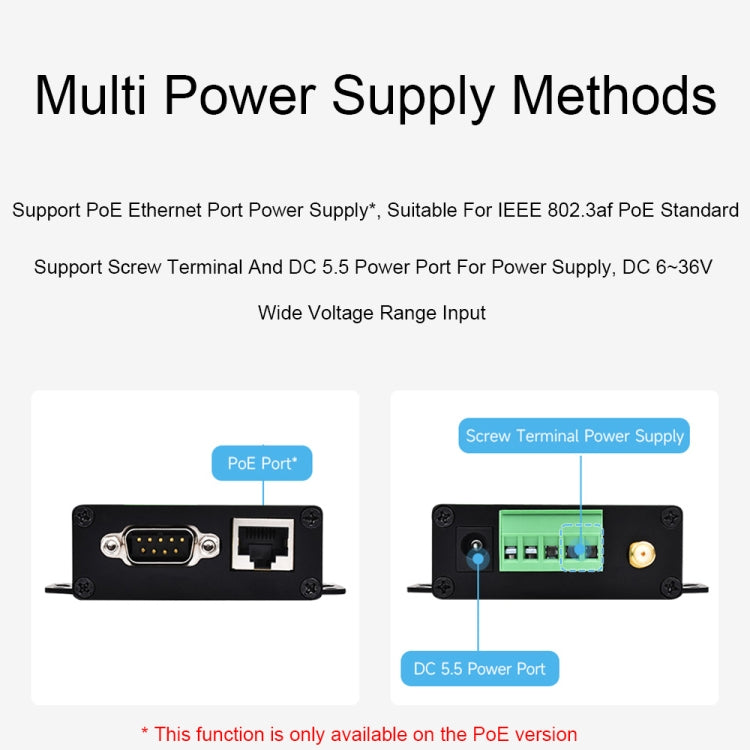

4. Multiple onboard power interfaces support a wide range of 6~36V power supply, and can be equipped with PoE function.

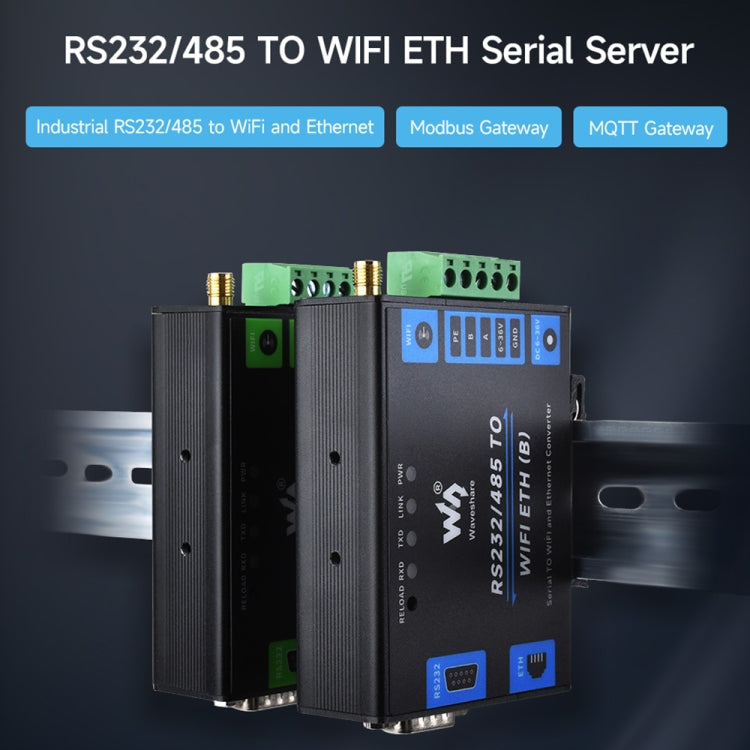

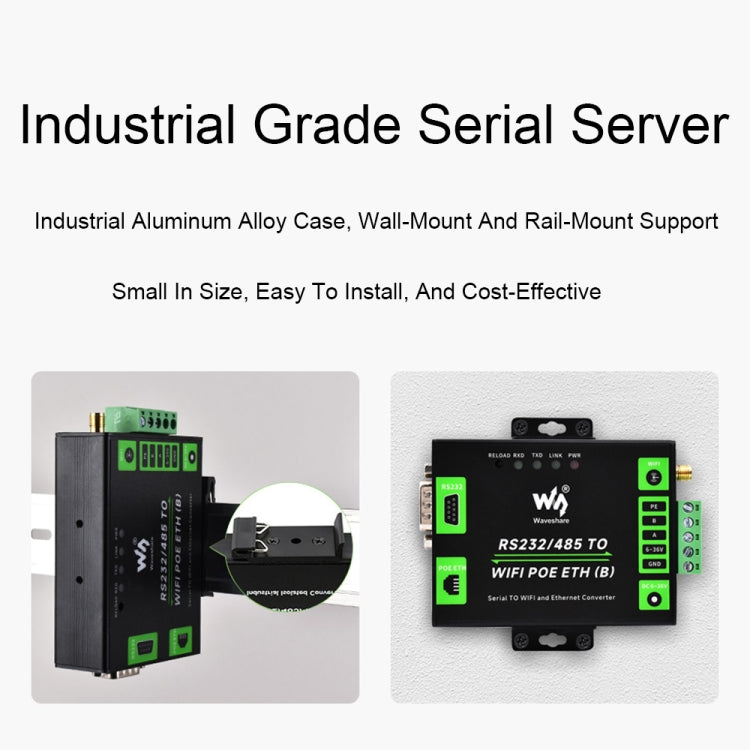

5. Industrial-grade metal shell design supports wall-mounted and rail-mounted installation. It is small in size and easy to install.
6. Suitable for data collection, IoT gateway, security IoT, smart instrument monitoring and other applications.
Product parameters:
1. Frequency band: 2.412-2.484 GHz

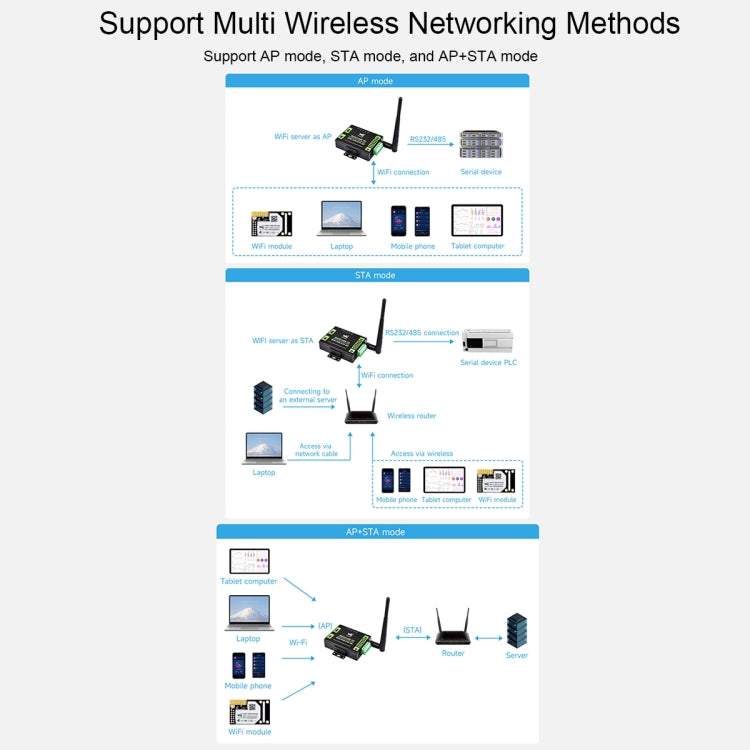

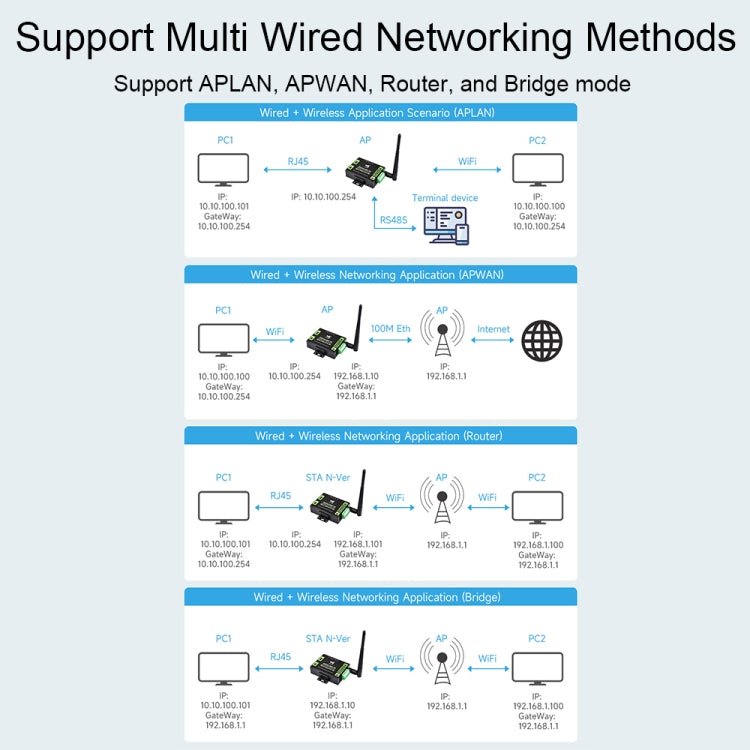

2. Wireless network: Station / AP / AP+Station mode
3. Security mechanism: WPA-PSK / WPA2-PSK
4. Encryption type: TKIP/AES
5. Transmission power:
802.11b: +19dBm (max @11Mbps)
802.11g: +18dBm (max @54Mbps)
802.11n: +17dBm (maximum @HT20, MCS7); +17dBm (maximum @HT40, MCS7)
6. Receiving sensitivity:
802.11b: -89dBm (@11Mbps)
802.11g: -81dBm (@54Mbps)
802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
7. Baud rate: 300-460800 bps
8. Check digit: none, odd, even, mark, space
9. Data bits: 5-9 bits
10. Flow control: RTS/CTS N/A
11. Protocol: TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP/MQTT

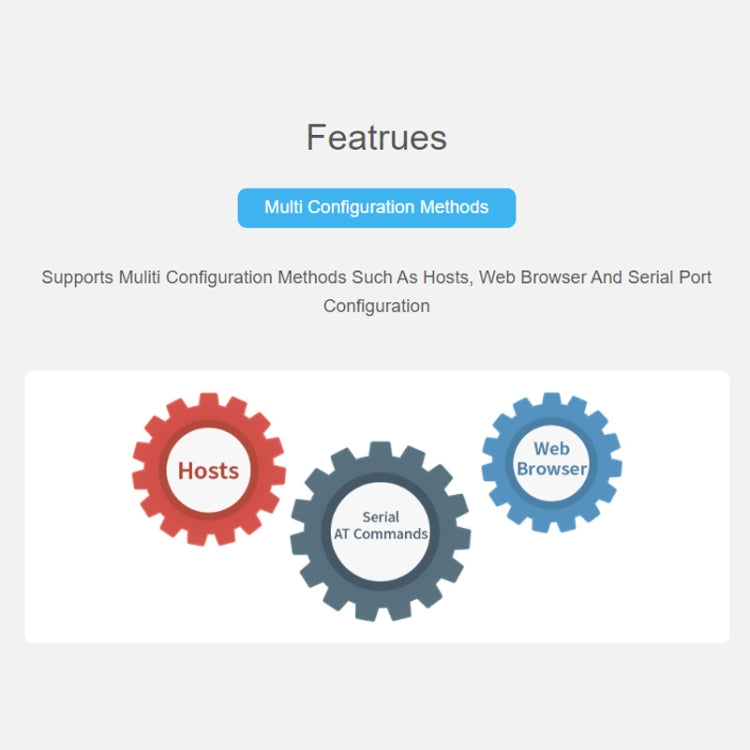

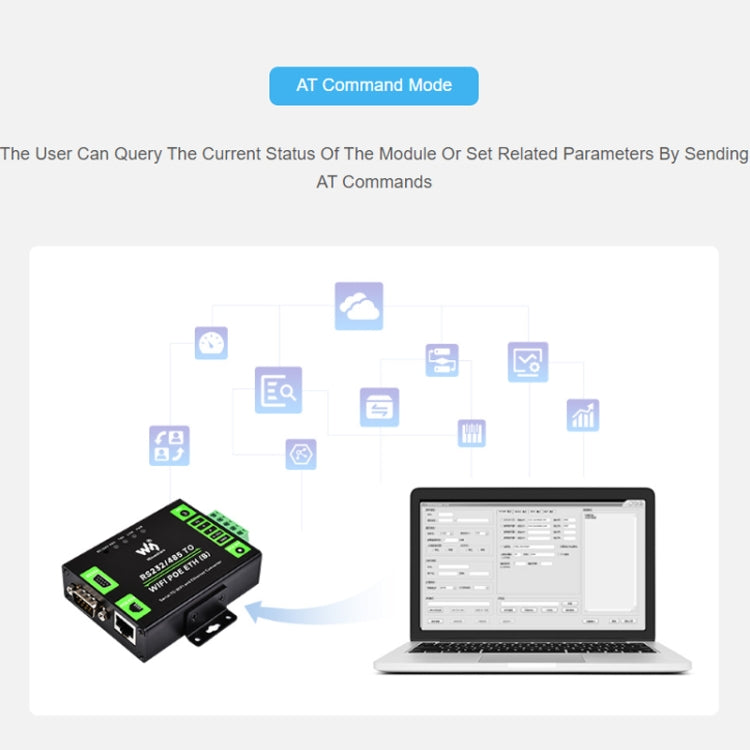

12. Configuration: host, browser, serial AT command
13. Communication method: TCP/IP direct communication, VCOM

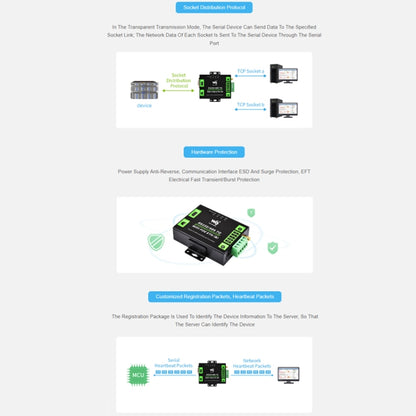

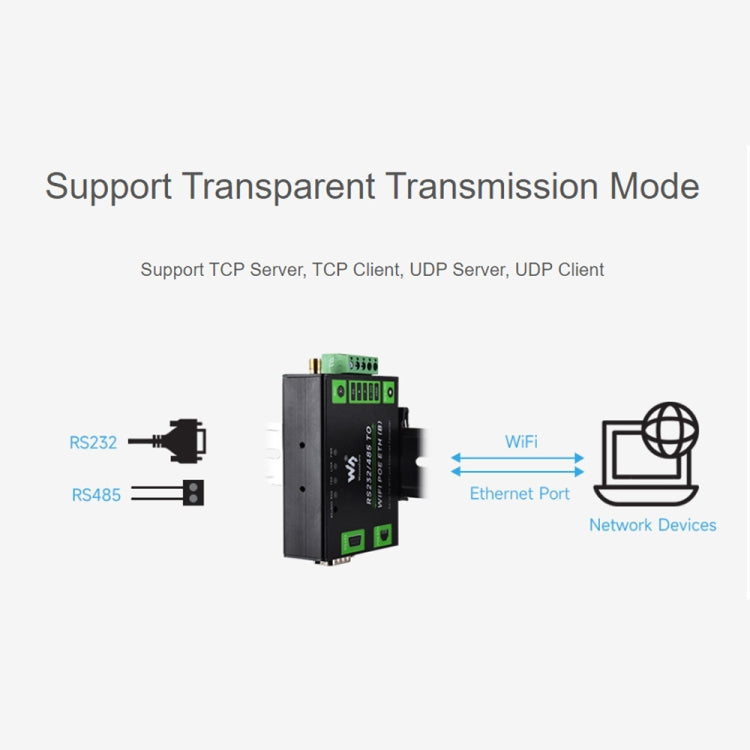

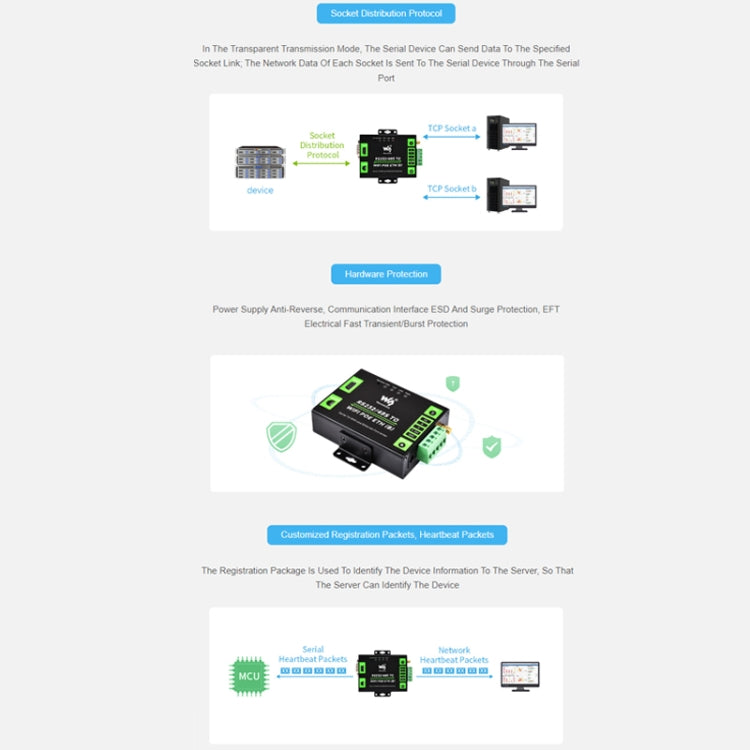

14. Working mode: transparent transmission, serial port command, HTTPD Client, Modbus TCP to Modbus RTU
15. Working temperature: minus 40 degrees Celsius - 85 degrees Celsius
16. Humidity range: 5%-95% relative humidity

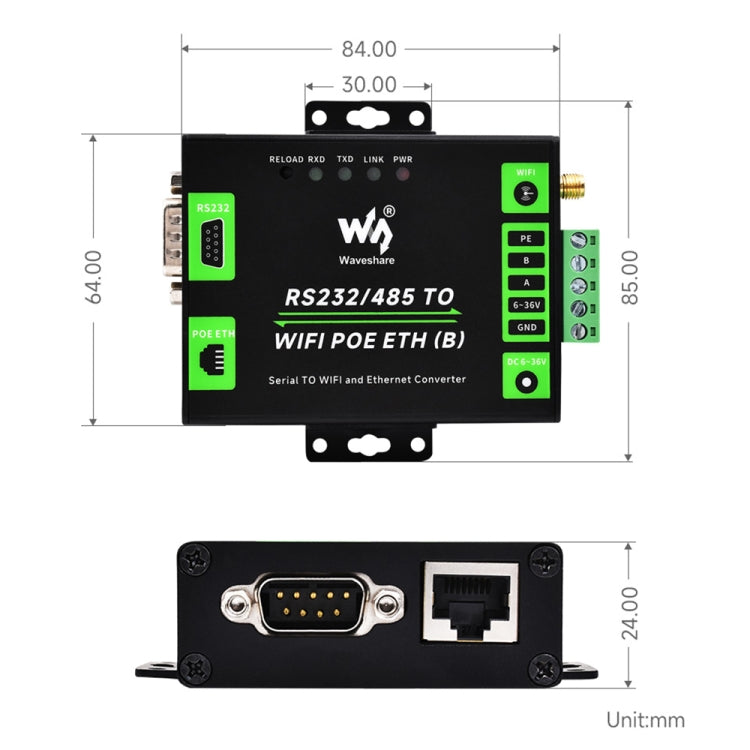

17. Product size: 85 x 84 x 24mm
18. Weight: 157g, 169g

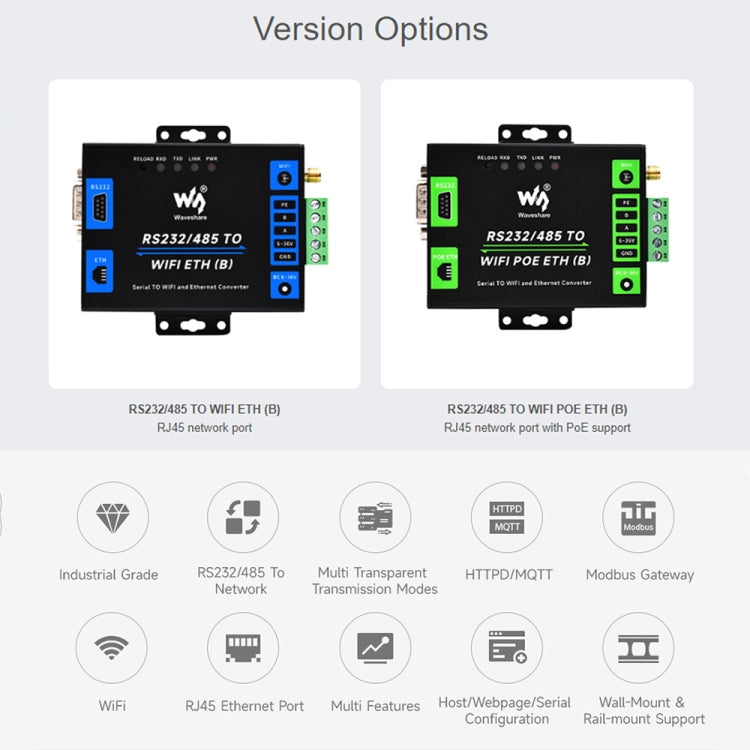

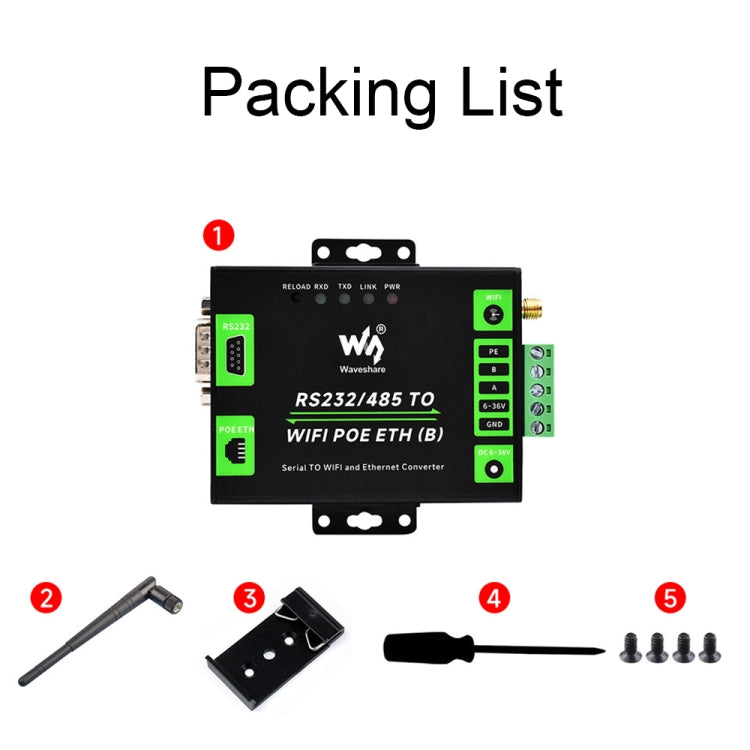

Packing list:
RJ45 network port:
-RS232/485 to WIFI Ethernet (B) x1
-2.4G WiFi antenna x1
-Rail mounting buckle x1
-Screwdriver x1
-Screw pack x1
RJ45 network port supporting POE:
-RS232/485 to WIFI POE ETH (B) x1
-2.4G WiFi antenna x1
-Rail mounting buckle x1
-Screwdriver x1
-Screw pack x1
