Waveshare ESP32-C5-Zero Mini Development Board With RISC-V 32-Bit Processor, Version: No Pin Header

1. The ESP32-C5-Zero is a compact multi-protocol development board based on the ESP32-C5-HF4, integrating wireless communication, USB interface and onboard peripherals, suitable for embedded and IoT applications.
2. Equipped with a 32-bit RISC-V processor with a maximum frequency of 240 MHz.
3. Integrated with 384KB SRAM, 320KB ROM and 4MB Flash.

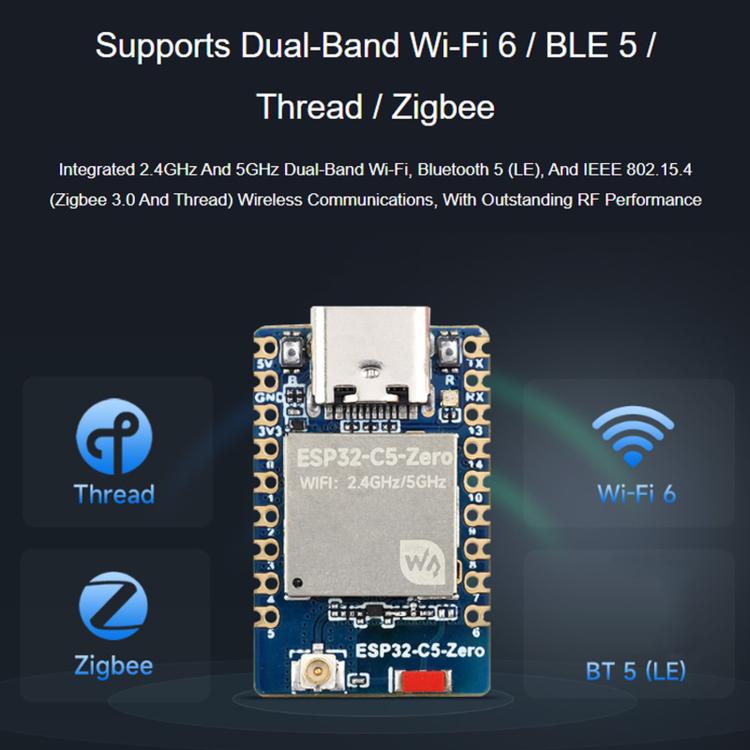

4. Equipped with dual-band Wi-Fi at 2.4GHz and 5GHz, Bluetooth 5.0 (LE), and IEEE 802.15.4 (supporting Zigbee 3.0 and Thread) wireless communication, featuring excellent RF performance.

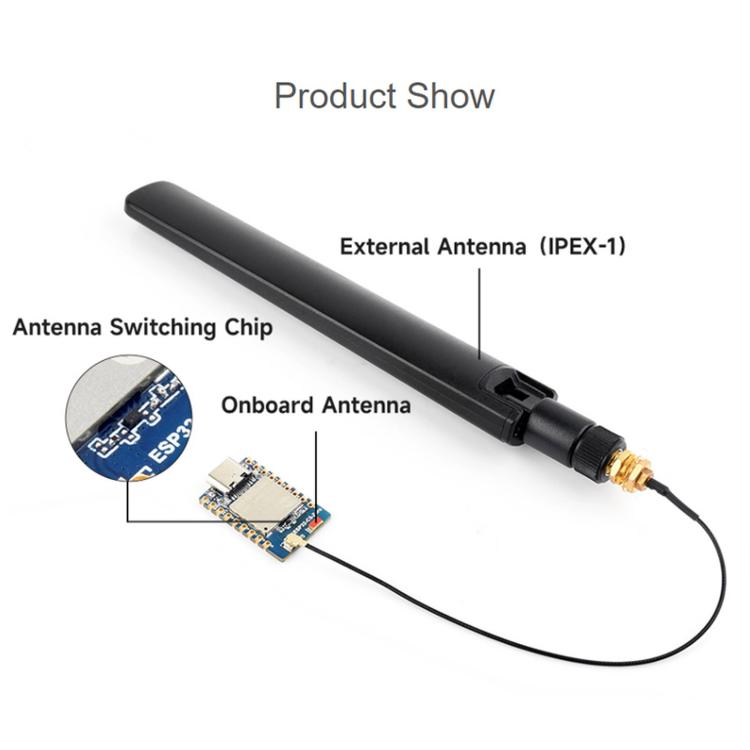

The board includes an onboard antenna switching chip, allowing the use of the onboard antenna or an external antenna (IPEX-1).
5. Utilizes a USB Type-C interface that is both front and back plug-and-play.
6. Exports a rich set of peripheral interfaces, with a stamp hole design, facilitating soldering and integration onto a user-designed baseboard.
7. Supports multiple low-power operating modes, enabling flexible adjustment of communication range, data rate, and power consumption balance to meet the power consumption requirements of various application scenarios.
8. Supports ESP-IDF, Arduino, and MicroPython, along with a complete SDK and open-source documentation tutorials, facilitating quick integration into applications.
