Product Overview
Raspberry Pi 4B main features:
1. BCM2711B0 64 bit 1.5GHz quad core processor with 4GB memory
2. It supports 4K 60fps high-resolution dual screen display by dual micro HDMI interface
3. Gigabit Ethernet port, Bluetooth 5.0 BLE, 2.4G / 5G dual-band WIFI
4. Dual USB2.0 interface, also with dual USB3.0 interface, faster transmission speed

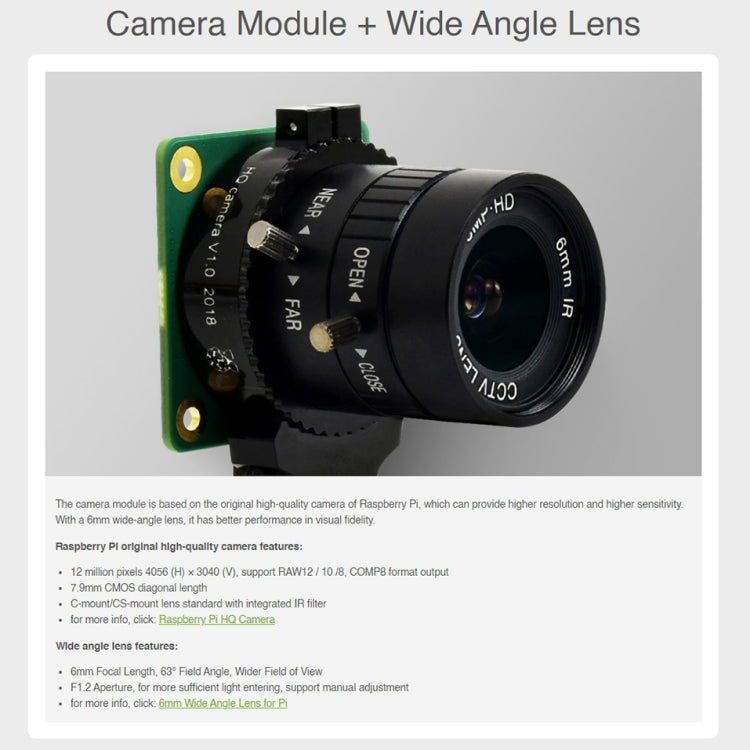

Camera Module + Wide Angle Lens:
The camera module is based on the original high-quality camera of Raspberry Pi, which can provide higher resolution and higher sensitivity. With a 6mm wide-angle lens, it has better performance in visual fidelity.
Raspberry Pi original high-quality camera features:
1. 12 million pixels 4056 (H) x 3040 (V), support RAW12 / 10 /8, COMP8 format output
2. 7.9mm CMOS diagonal length
3. C-mount/CS-mount lens standard with integrated IR filter
Wide angle lens features:
1. 6mm Focal Length, 63 degree field angle, wider field of view
2. F1.2 Aperture, for more sufficient light entering, support manual adjustment

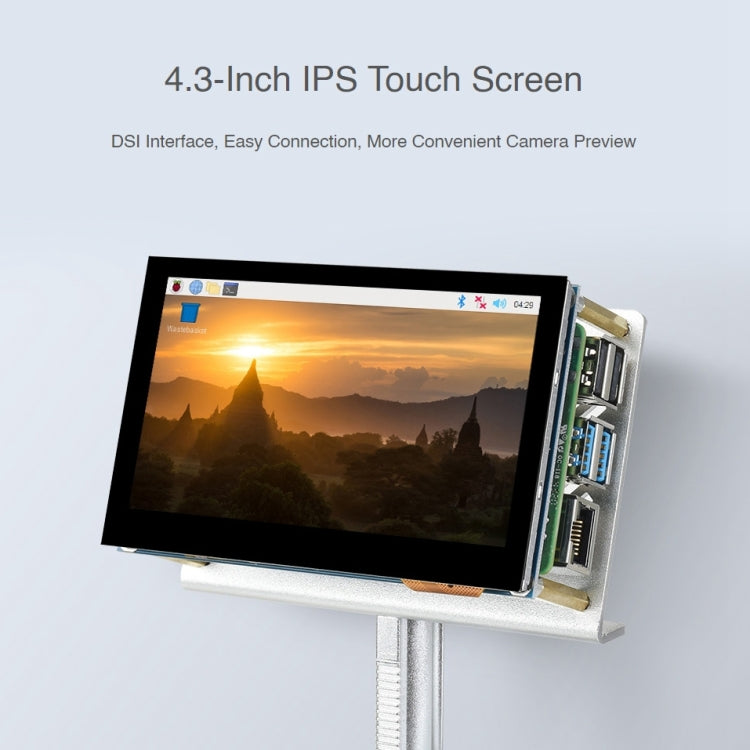

The 4.3-inch IPS screen has the advantages of true color and large viewing angle. At the same time, the DSI display has a high frame rate and does not occupy the Raspberry Pi 40pin GPIO interface. The Raspberry Pi system has good compatibility and is an ideal match for this kit.
4.3-inch capacitive touch screen features:
1. 800 x 480 pixels IPS screen, combined with tempered glass panel, supports 5-points touch, and the visual angle can up to 160??°
2. Support DSI display interface, high frame rate, good compatibility with Raspberry Pi system

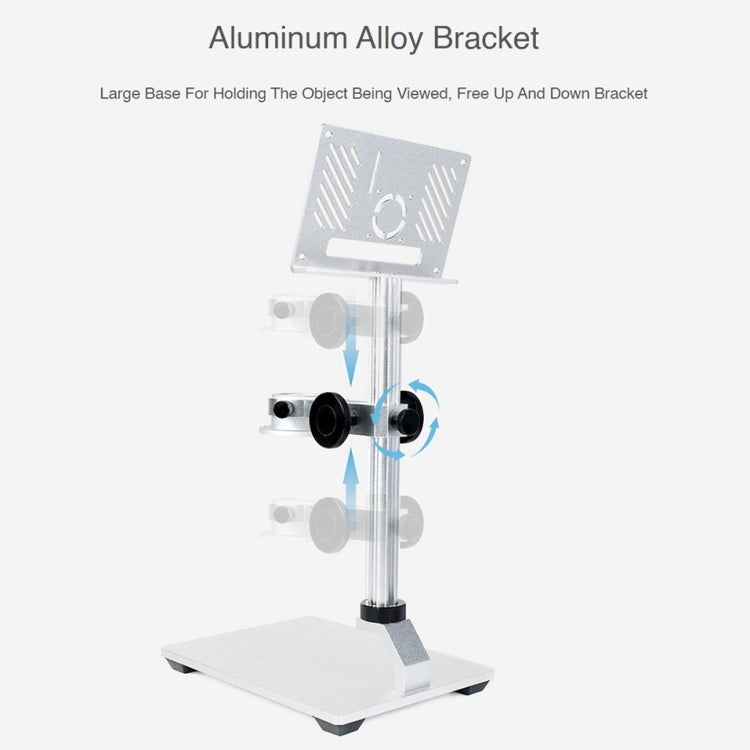

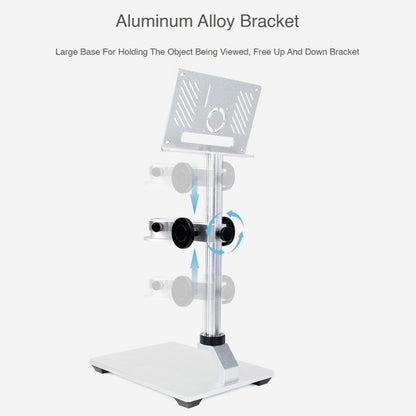

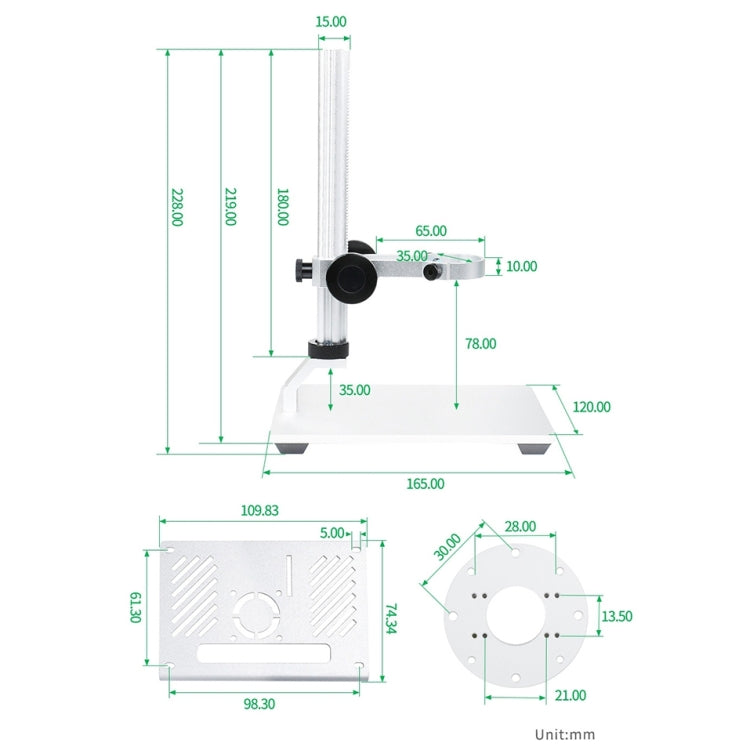

Aluminum Alloy Bracket
Large base for holding the object being viewed, free up and sown bracket
Package List
1. PI4B-4GB x 1
2. Micro SD Card 16GB x 1
3. 4.3-inch DSI LCD x 1
4. 6mm Wide Angle Lens x 1
5. Microscope Bracket Kit x 1
6. Raspberry Pi HQ Camera x 1
7. Camera holder x 1
8. 5V 4A Type C US plug power supply x 1
9. 15Pin FFC ~30cm x 1
10. Screws pack x 1
11. Card reader x 1
12. Cooling fan x 1
