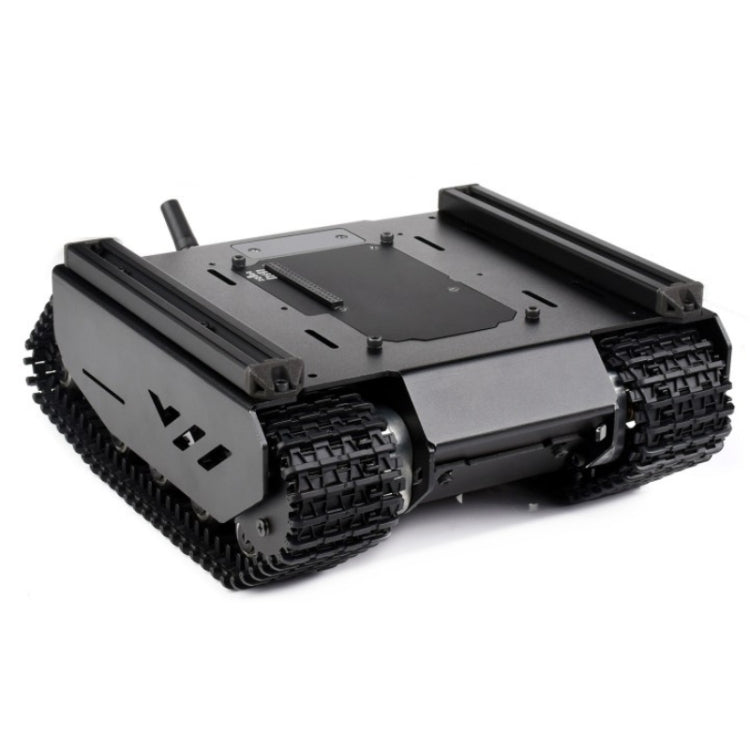

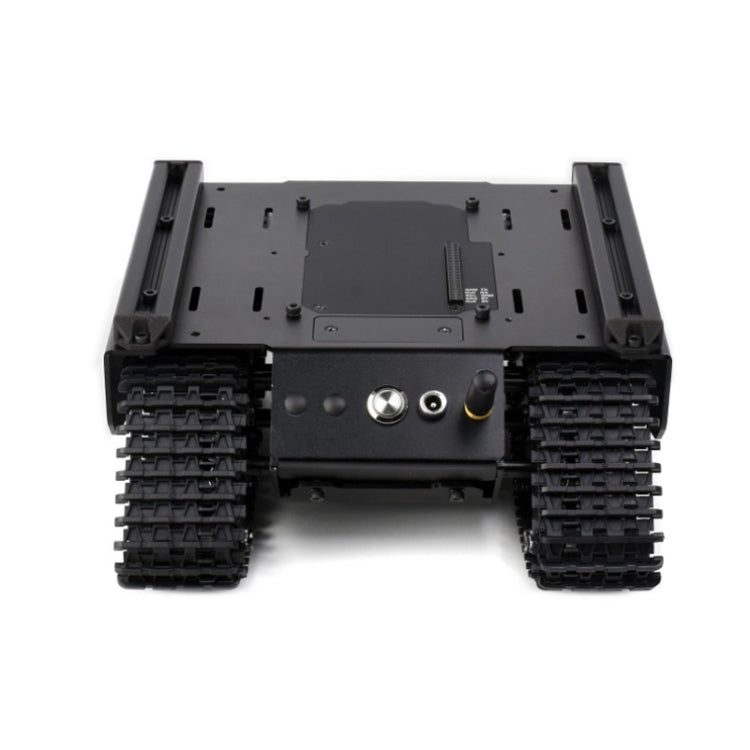

Waveshare 24019 Flexible And Expandable Off-Road Tracked UGV, Multiple Hosts Support, With External Rails and ESP32 Slave Computer
Waveshare 24019 Flexible And Expandable Off-Road Tracked UGV, Multiple Hosts Support, With External Rails and ESP32 Slave Computer
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R1750.62/mo 3 months
- R885.22/mo 6 months
- R467.19/mo 12 months
- From R1750.62/month over 3 months, or as low as R467.19/month over 12. Total repayable over 12 months: R5606.28. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes Included
Read shipping & tax policy ›This product is priced for DDP import handling. KifTech handles applicable import costs before delivery:
- Import duties – Included where applicable
- Customs fees – Handled before delivery
- Shipping – Free on orders over R750. R49 standard rate below R750.
✓ The checkout total shows the product and shipping amount you pay to KifTech. No separate import duty payment should be required on delivery.
Free Shipping over R750
R49 below R750. Taxes included. Read policy ›
Estimated Arrival
8–17 business days after order placement.
Delivery Timeline
Order Processing (0–3 days)
Order verified and dispatched. Tracking details provided by email.
Transit (8–14 business days)
Package is shipped internationally to South Africa via Buffalo Logistics.
30-day refund / replacement
Read full return policy ›Shipping Protection
Read full policy ›Encrypted Checkout
Read privacy policy ›Checkout uses encrypted payment processing to help protect your personal and payment details.
Accepted via PayFast:
Product Overview
1. Dimensions: 231x197x151mm
2. Suspension system: 4×2 (independent)
3. Chassis height: 26mm
4. Guide rail center distance: 170mm
5. Track width: 44mm
6. Running speed: 0.25~1m/s
7. Track horizontal ground length (no load): 115mm
8. Suspension material: 1.5mm (thickness) stainless steel
9. Track climbing ground length (with large load): 170 mm
10. Body material: 2 mm (thickness) 5052 aluminum alloy
11. Weight: 1.9 kg
12. Vertical obstacle clearance capability: 40mm
13. Driving Payload: 6.2kg
14. Climbing ability: 36 degrees
15. Battery holder: 18650 lithium battery x 3 (not included)
16. Turning radius (min): 0 meters (rotating in place)
17. Charging time: 1.5 hours
18. Battery life: 1 hour (full power continuous output)
19. Motor power: 5.2W×2

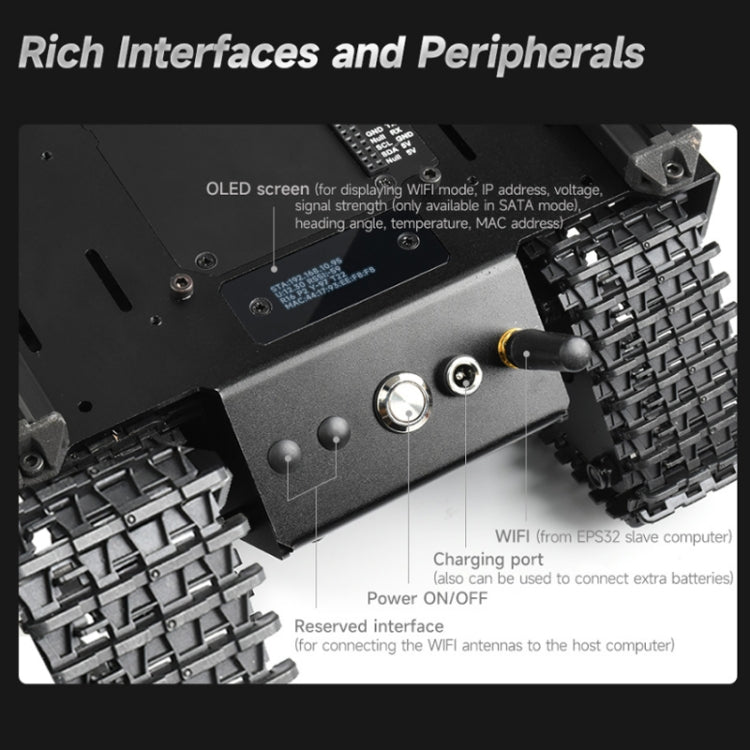

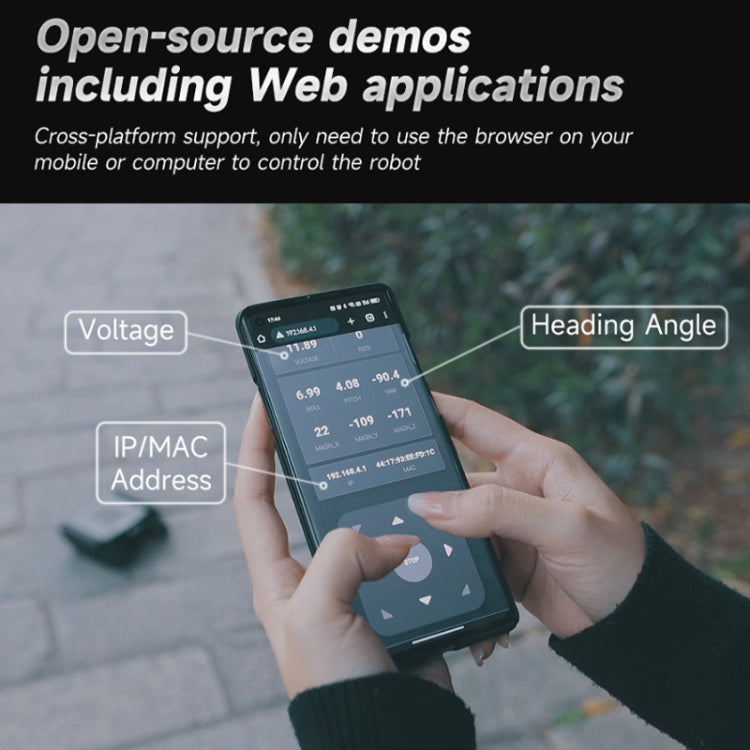

20. Remote control function: WIFI, AP/STA
21. Motor encoder: basic pulse 11PPR
22. Communication interface: UART/serial bus servo interface/IIC
23. The crawler-type mobile robot chassis has super off-road crossing ability and anti-seismic performance, and all codes are open source for secondary development

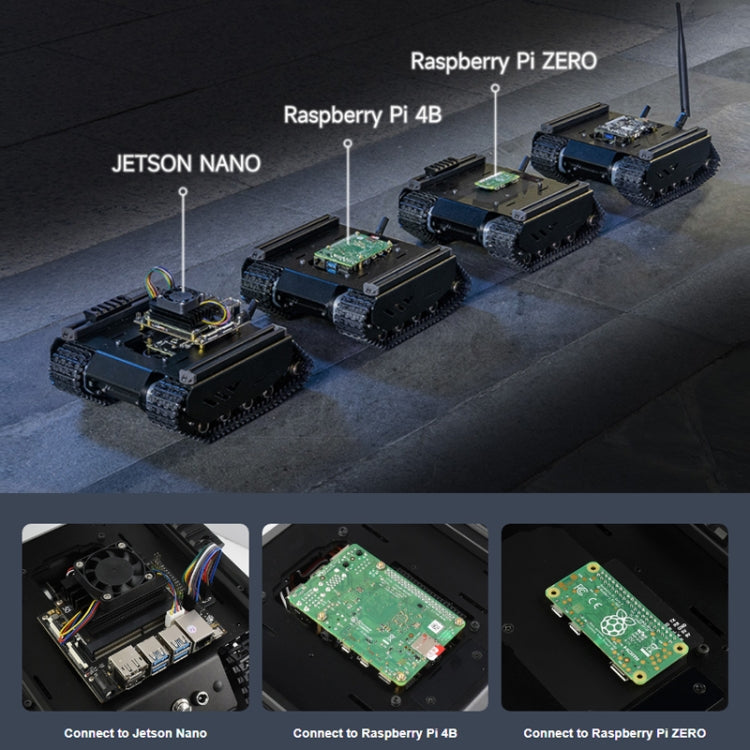

24. Support multiple host computers, can communicate with ESP32 slaves through the serial port
25. Motors with encoders can get speed feedback for closed-loop speed control

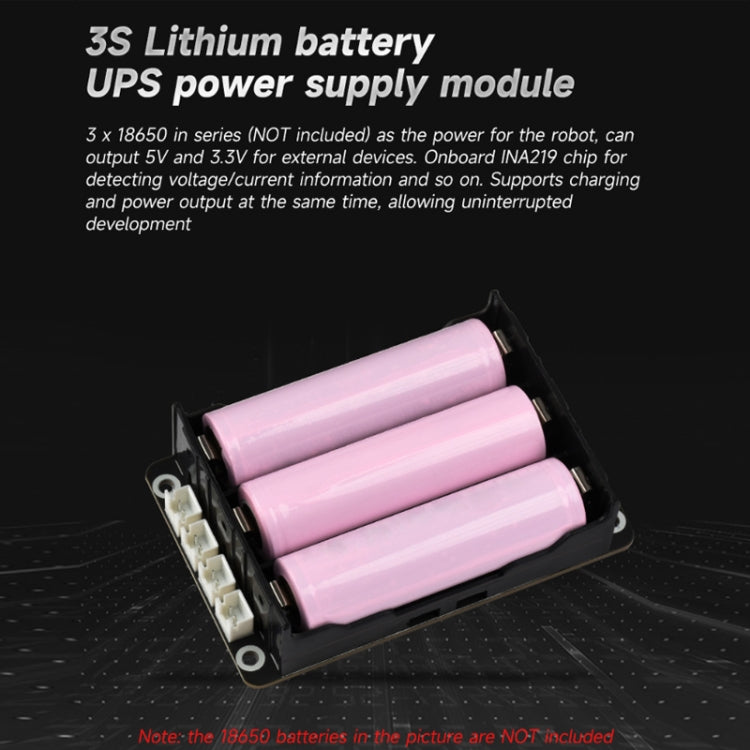

26. Built-in 3S UPS power supply module, supports 3 18650 lithium batteries (serial connection, not included), provides uninterrupted power supply for the robot, and supports charging and power output at the same time

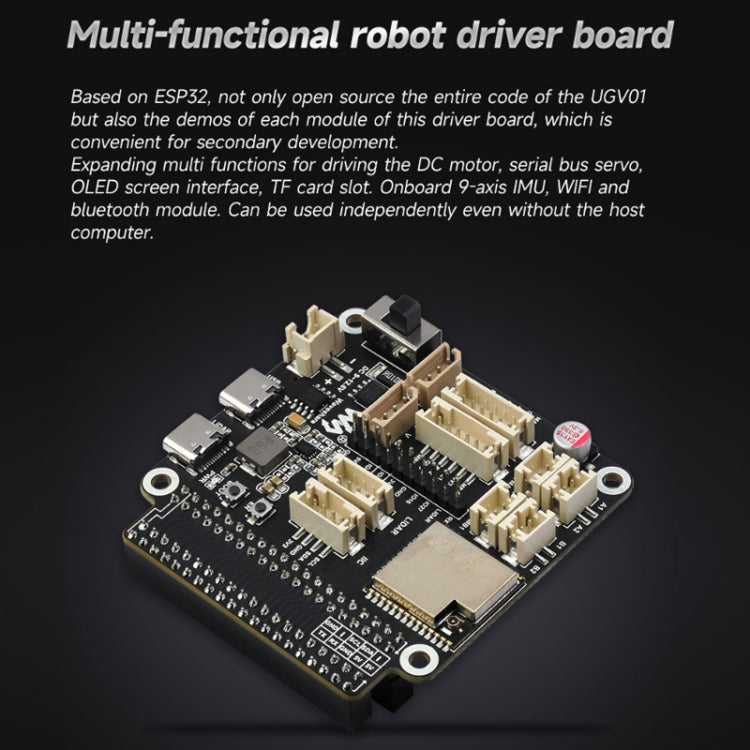

27. Built-in multifunctional robot driver board, based on ESP32, onboard WIFI and Bluetooth, used to drive serial bus servos, output PWM signals, expand TF card slots, etc.

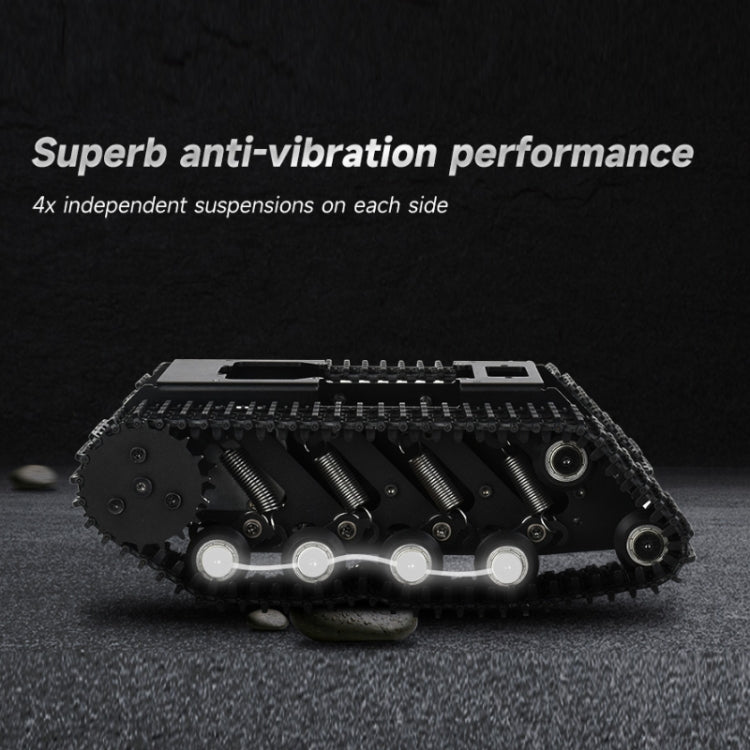

28. Multiple independent suspension systems are used to greatly reduce the impact of complex terrain and easily meet the needs of heavy loads, shock absorption, and off-road
29. And it comes with 2x 1020 European standard profile guide rails, providing more possibilities for secondary development
