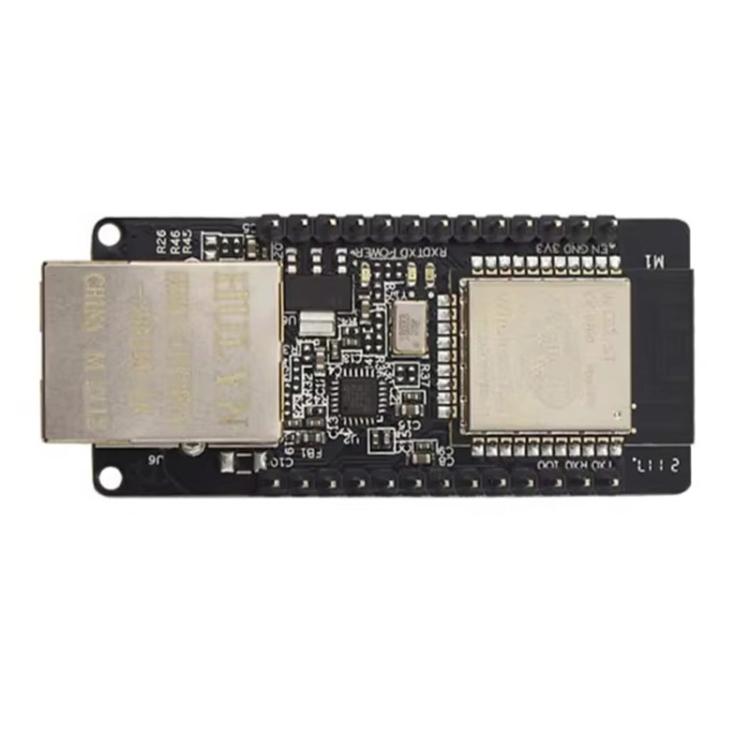

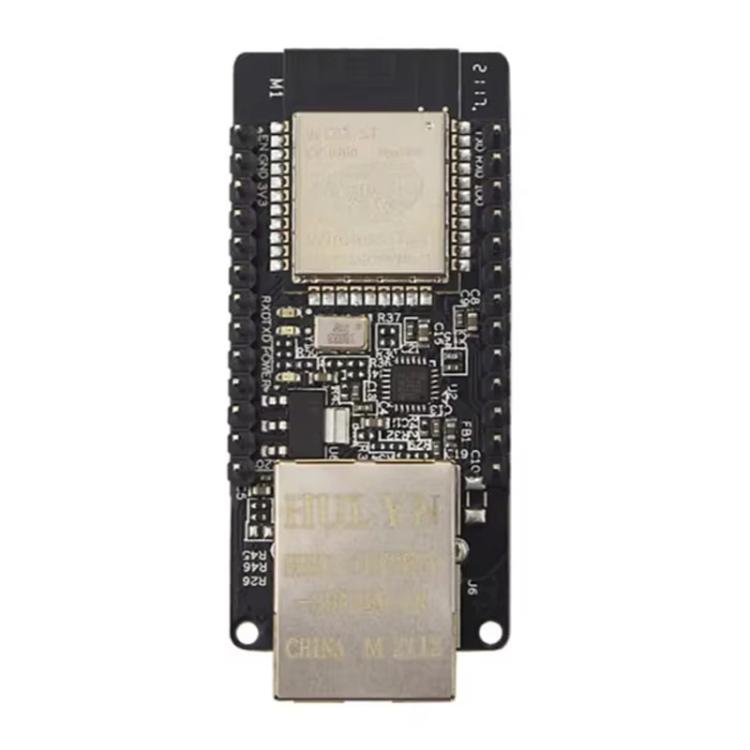

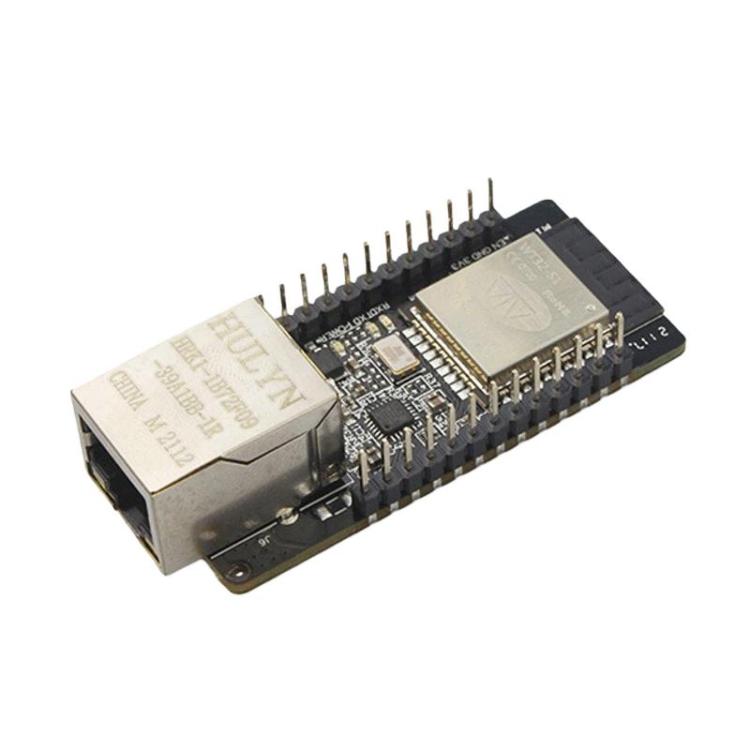

WT32-ETH01 Embedded Serial Port To Ethernet Module Bluetooth + WiFi Gateway Module, Spec: Soldered Pins
WT32-ETH01 Embedded Serial Port To Ethernet Module Bluetooth + WiFi Gateway Module, Spec: Soldered Pins
In Stock
Processed in 0–3 days
Regular price
R 319.00
Regular price
Sale price
R 319.00
Shipping R49 · free over R750
Pay monthly with
Pay with Mobicred
Mobicred is a revolving credit facility. One monthly account payment covers your purchases.
- Interest and fees apply. Your repayment amount, interest rate and applicable fees are set out in your Mobicred agreement.
- Credit is subject to approval and an affordability assessment. You need an approved Mobicred account and sufficient available credit.
Choose Payfast at checkout, then select Mobicred on the Payfast payment page where it is available.
Mobicred credit is provided by RCS Cards Proprietary Limited, trading as Mobicred. RCS is a registered credit provider (NCRCP38). Read Mobicred terms and conditions
Quantity
Free Shipping over R750
R49 on orders of R750 or less. Duties & import tax included. Read policy ›
Delivery timeline
1. Order processing (0–3 days)
Order verified and dispatched from our International Fulfillment Center (China). Tracking details are provided by email.
2. Transit (8–14 business days)
Your package is shipped to South Africa through KifTech’s Delivered Duty Paid (DDP) delivery process. The shipping method is shown in your cart and confirmed at checkout.
Shipping protection Read full policy ›
Late Delivery
If your order arrives later than the estimated timeframe, you may request a R20 store credit after delay verification.
15-calendar-day tracking
If your order has not been delivered and tracking shows no movement for 15 consecutive calendar days after dispatch, contact us. After verification and investigation, we may offer a free reshipment or refund.
30-calendar-day non-delivery
If your order has not been delivered within 30 calendar days after dispatch, contact us. After verification, you may choose a refund to your original payment method or a replacement shipment.
Duties & import tax included at checkout
Read shipping, duties & tax policy ›KifTech uses a Delivered Duty Paid (DDP) delivery process for all orders. Applicable import duties, import tax and customs fees are included in the amount shown at checkout and handled before delivery.
- Import duties – Included in the checkout amount where applicable
- Import tax & customs fees – Included in the checkout amount and handled before delivery
- Shipping – Free on orders over R750. R49 standard rate on orders of R750 or less.
✓ The checkout total shows the product amount, applicable import duties, import tax and customs fees, and any shipping charge. No separate import or customs payment should be required on delivery.
30-day returns & 6-month fault cover
Read full return policy ›Refund timeline
Processed to your original payment method within 5 calendar days after your return is received and inspected.
Shipping fee
Return shipping support is provided for confirmed faulty items. Customers cover return shipping for change-of-mind returns. A 25% handling fee is deducted from the refund of change-of-mind returns made after the 7-day cooling-off period.
Exchanges
We do not process direct exchanges for change-of-mind returns. If you would like a different item, model, colour, size, or variant, return the original item under the Change-of-Mind Returns terms and place a new order for your preferred item. Faulty, damaged, or incorrect items may be replaced at no additional shipping cost once the return has been reviewed and approved. Where applicable, your rights to a repair, replacement, or refund remain unchanged.
Warranty
7-day cooling-off for online orders (full refund less return costs), 30 days for unused change-of-mind returns, plus a standard 6-month warranty for manufacturing faults.
Encrypted Checkout
Read privacy policy ›Checkout uses encrypted payment processing to help protect your personal and payment details.
Accepted payment methods:
Description
1. The internal TCP/IP protocol stack has been optimized, making it easy for users to complete the networking function of embedded devices, significantly reducing the development time cost
2. The module is compatible with both through-hole and half-plate connectors. The board width is a universal width, allowing the module to be directly soldered onto the board card, or the connector can be soldered, or it can be used on a breadboard, facilitating users use in different scenarios
3. It integrates a 2.4GHz Wi-Fi and Bluetooth dual-mode SOC, featuring high radio performance, stability, universality, reliability, and low power consumption
WiFi
1. Protocol:
- 802.11 b/g/n/e/i (802.11n, with a speed of up to 150 Mbps)
- A-MPDU and A-MSDU aggregation, supporting 0.4s protection interval
2. Frequency range: 2.4 - 2.5 GHz
Bluetooth
1. Protocol: compliant with Bluetooth v4.2 BR/EDR and BLE standards
2. Radio frequency: With a -97dBm sensitivity NZIF receiver

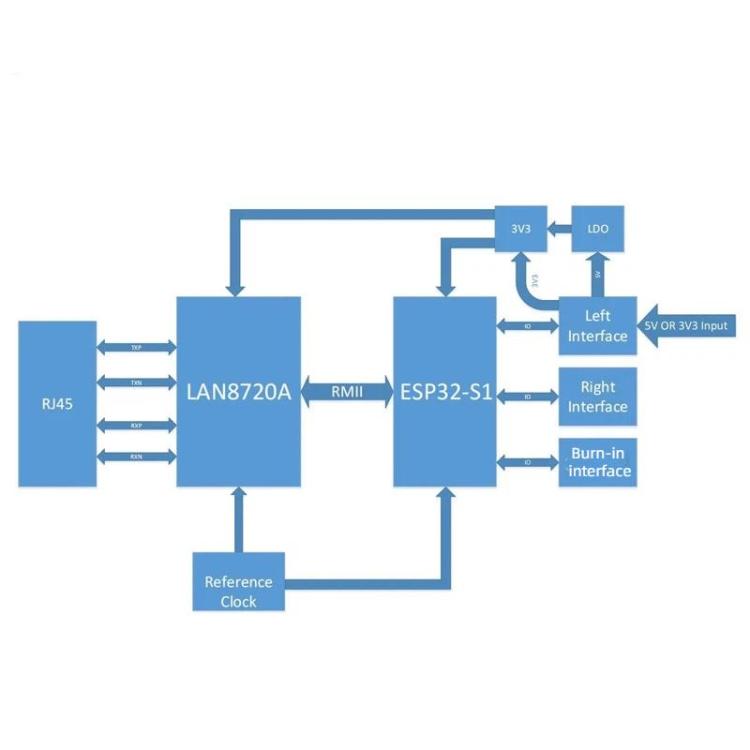

Hardware
1. Network port specification: RJ45, 10/100Mbps, cross-connection self-adaptive
2. Serial port baud rate: 80 - 5000000
3. Built-in Flash: 32Mbit
4. Operating voltage: 5V or 3.3V power supply
5. Operating current: average: 80mA
6. Supply current: minimum: 500mA
7. Operating temperature range: -40℃ + 85℃
8. Environmental temperature range: normal temperature
Software
1. WiFi mode: Station/softAP/SoftAP+station/P2P
2. WiFi security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
3. Encryption type: AES/RSA/ECC/SHA
4. Firmware upgrade: remote OTA upgrade via network
5. Software development: SDK for users secondary development
6. Network protocol: IPv4, TCP/UDP
7. IP acquisition method: Static IP, DHCP (default)
8. Simple transmission mode: TCP Server/TCP Client/UDP Server/UDP Client
9. User configuration: AT command set
Specifications
- Product type
- Module
- SKU
- TBD0606452201
- Dispatch facility
- International Fulfillment Center (China)
Compatibility & fit
Product checks
Check fit before you buy
Review model, version, connector, size, photos, specifications and package contents before checkout.
Compatibility checklist
- Match the exact product, device, model, size, colour and variant shown in this listing.
