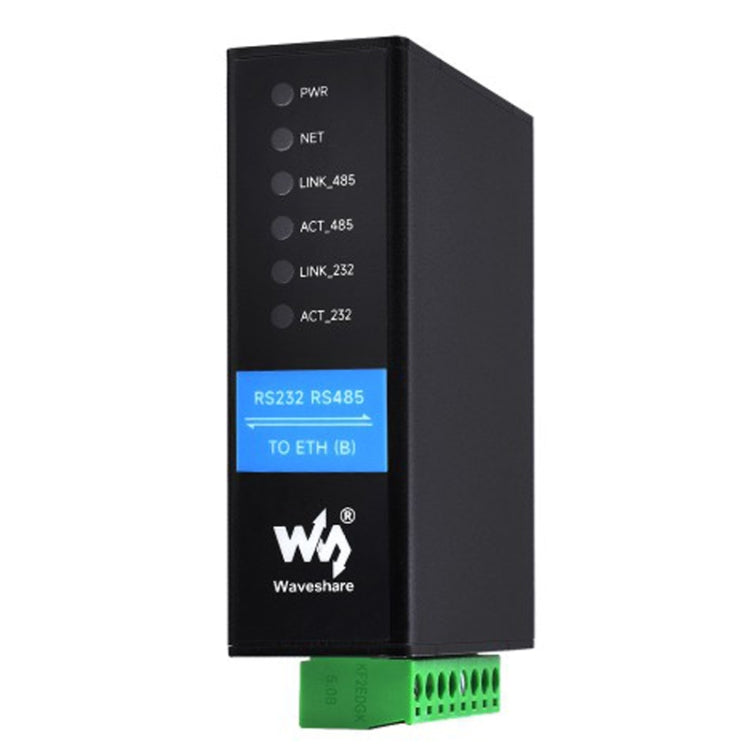

Waveshare RS232 RS485 To RJ45 Ethernet Serial Server, Spec: RS232 RS485 TO ETH (B)
Waveshare RS232 RS485 To RJ45 Ethernet Serial Server, Spec: RS232 RS485 TO ETH (B)
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R308.24/mo 3 months
- R155.86/mo 6 months
- R82.26/mo 12 months
- From R308.24/month over 3 months, or as low as R82.26/month over 12. Total repayable over 12 months: R987.12. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes Included
Read shipping & tax policy ›This product is priced for DDP import handling. KifTech handles applicable import costs before delivery:
- Import duties – Included where applicable
- Customs fees – Handled before delivery
- Shipping – Free on orders over R750. R49 standard rate below R750.
✓ The checkout total shows the product and shipping amount you pay to KifTech. No separate import duty payment should be required on delivery.
Free Shipping over R750
R49 below R750. Taxes included. Read policy ›
Estimated Arrival
8–17 business days after order placement.
Delivery Timeline
Order Processing (0–3 days)
Order verified and dispatched. Tracking details provided by email.
Transit (8–14 business days)
Package is shipped internationally to South Africa via Buffalo Logistics.
30-day refund / replacement
Read full return policy ›Shipping Protection
Read full policy ›Encrypted Checkout
Read privacy policy ›Checkout uses encrypted payment processing to help protect your personal and payment details.
Accepted via PayFast:

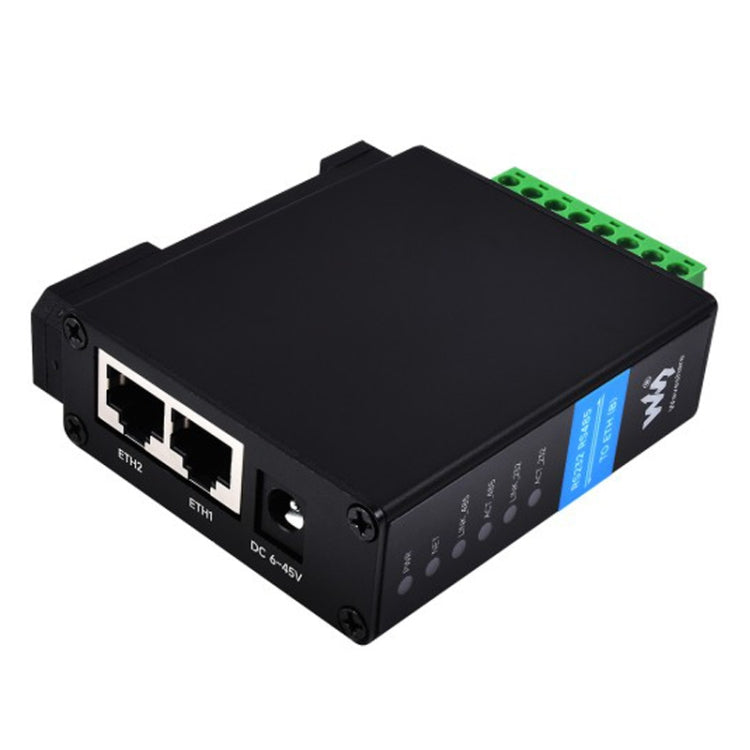

Product Overview
Features:

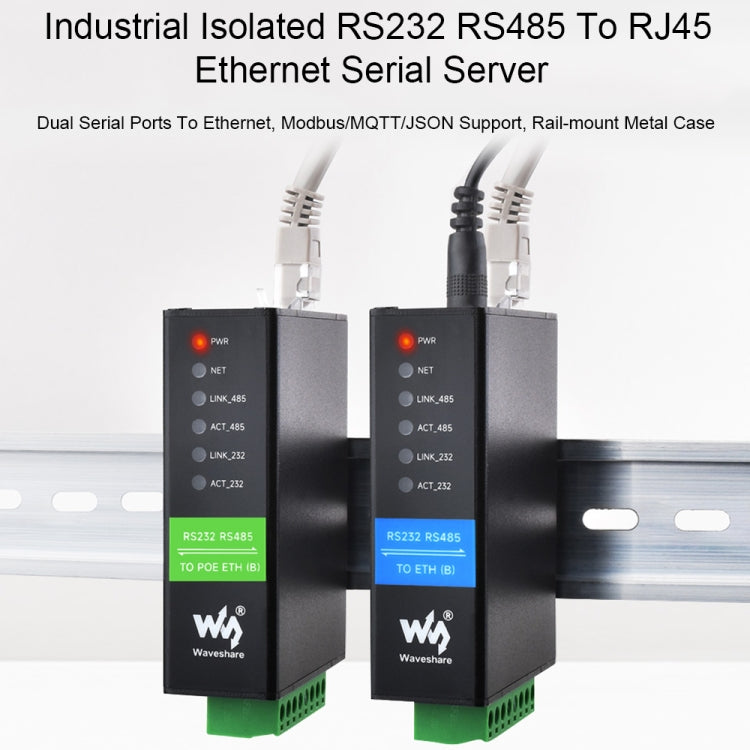

1. A dual serial port device data collector/IoT gateway designed for industrial environments. One RS232 and one RS485 can work simultaneously using one network cable without interfering with each other.

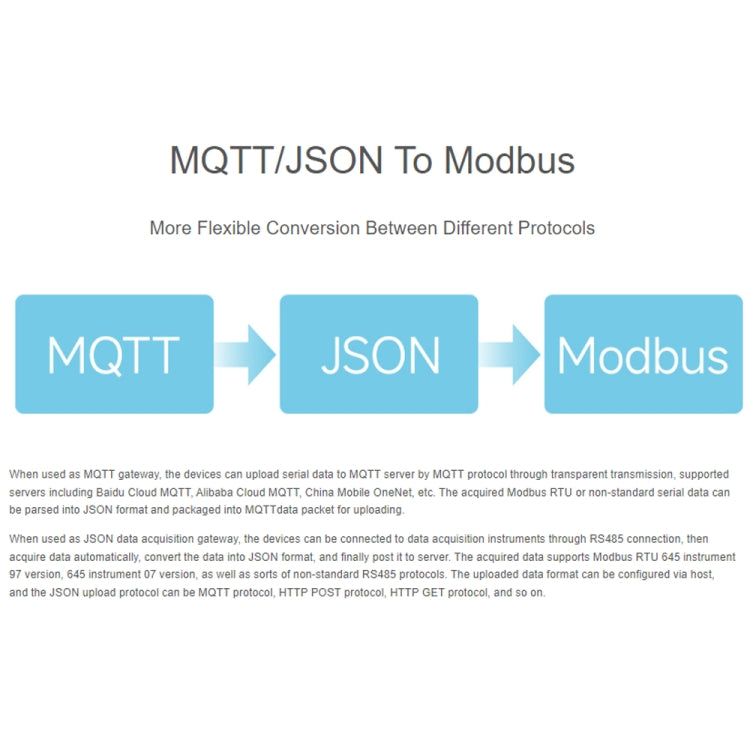

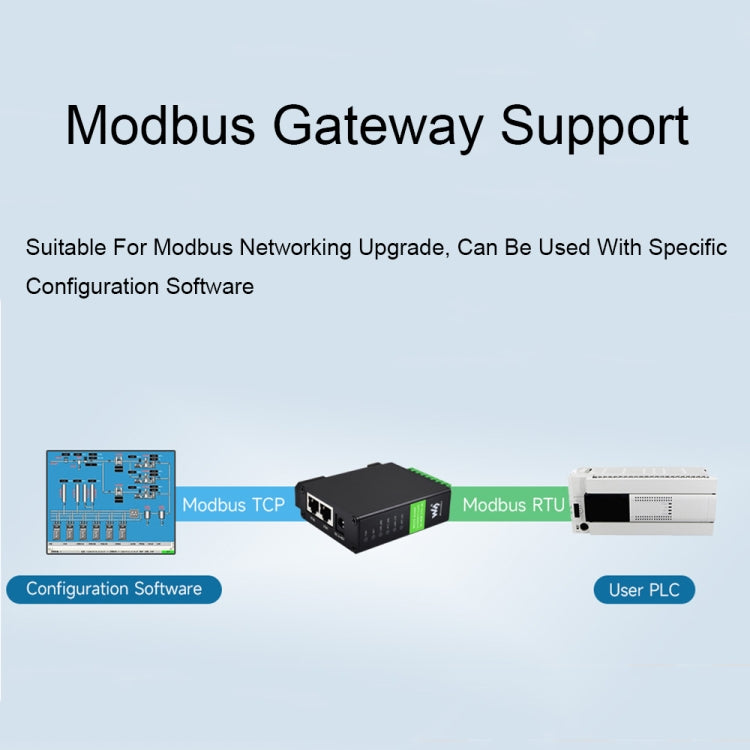

2. It integrates multiple functions, including serial port server, Modbus gateway, MQTT gateway, RS232 and RS485 to JSON, etc.

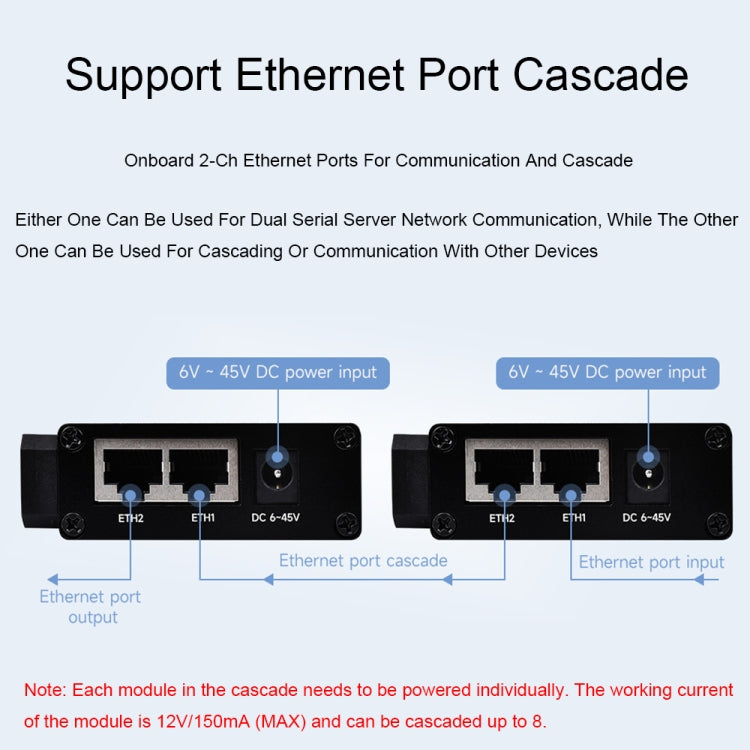

3. The other Ethernet port can be used as a network switch or cascade, and the PoE function can be equipped with dual power supply.

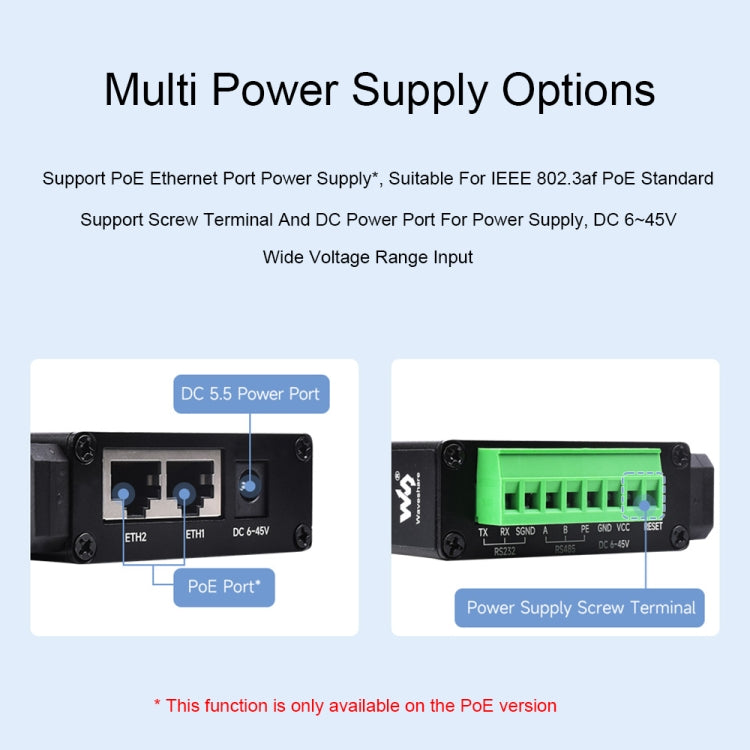

4. The Ethernet port provides two power supply methods: DC port (outer diameter 5.5mm, inner diameter 2.1mm) and screw terminal.

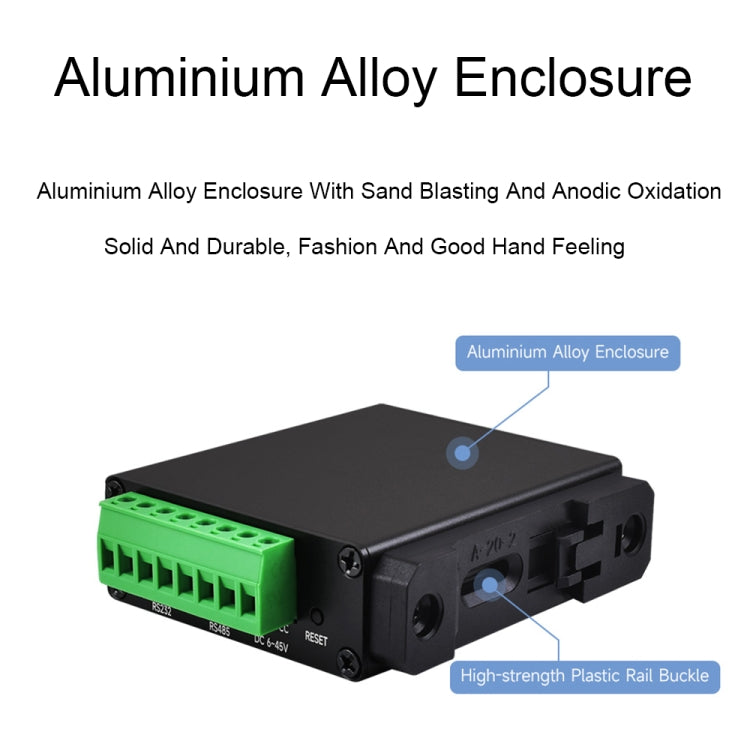

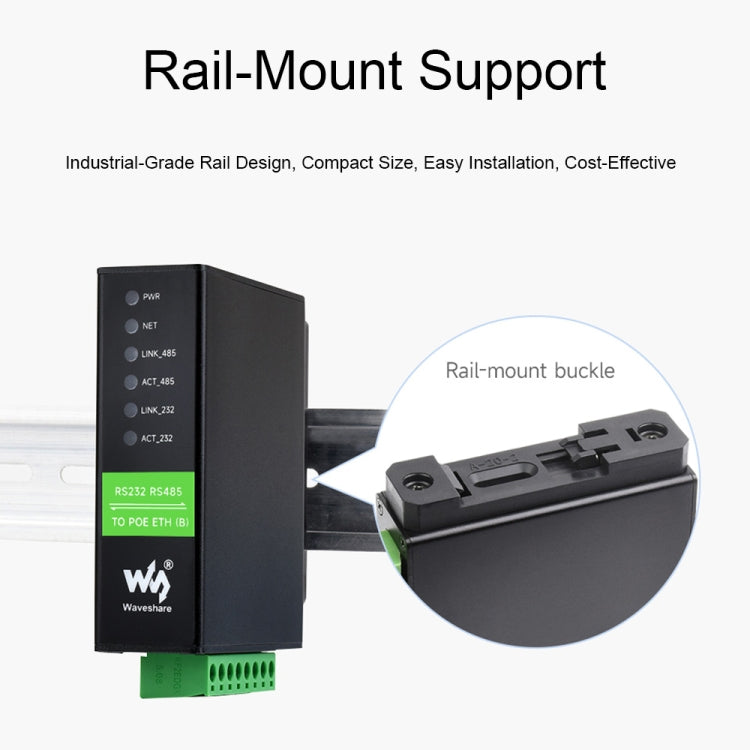

5. The chassis adopts guide rail support, which is small in size, easy to install and cost-effective. 6. Suitable for data collection, IoT gateway, security IoT, smart instrument monitoring and other applications.
7. This product is a PoE receiving device (PD) and needs to be connected to a PoE power supply and obtain power from the PSE device to work properly.
Product parameters:
1. Product type: serial server, Modbus gateway, MQTT gateway

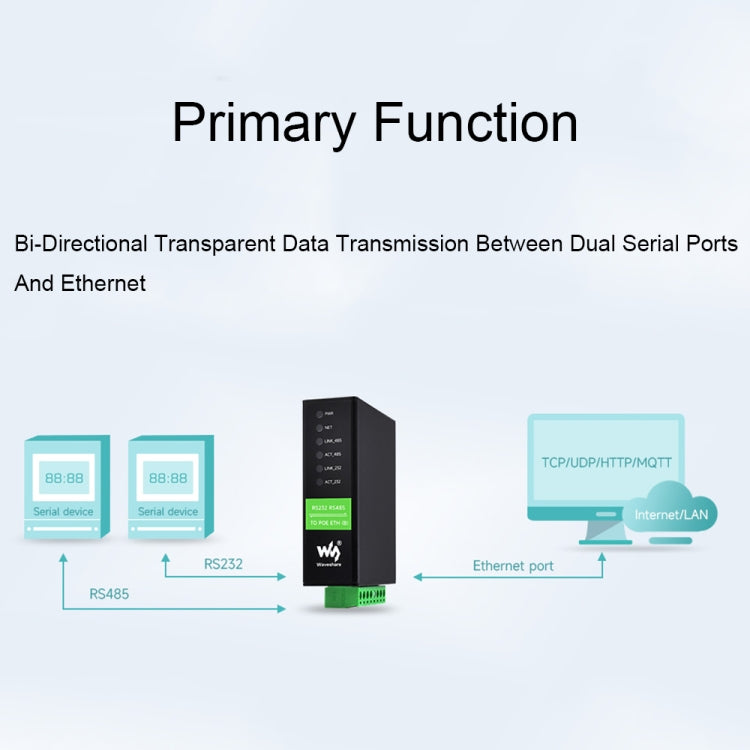

2. Basic functions: two-way transparent transmission of data between RS232, RS485 and Ethernet

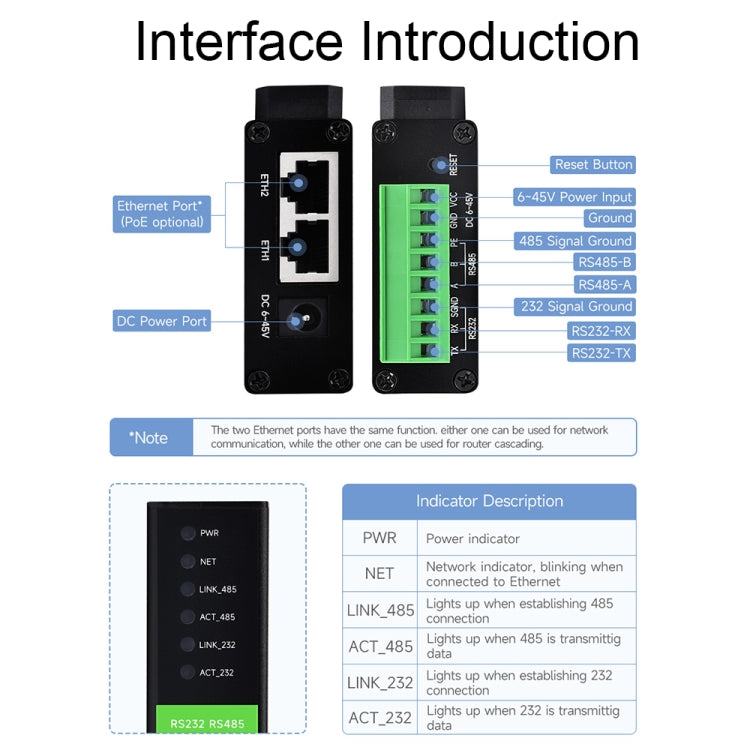

3. Communication interface: RS232 port × 1, RS485 port × 1, Ethernet port × 2
4. Power supply:

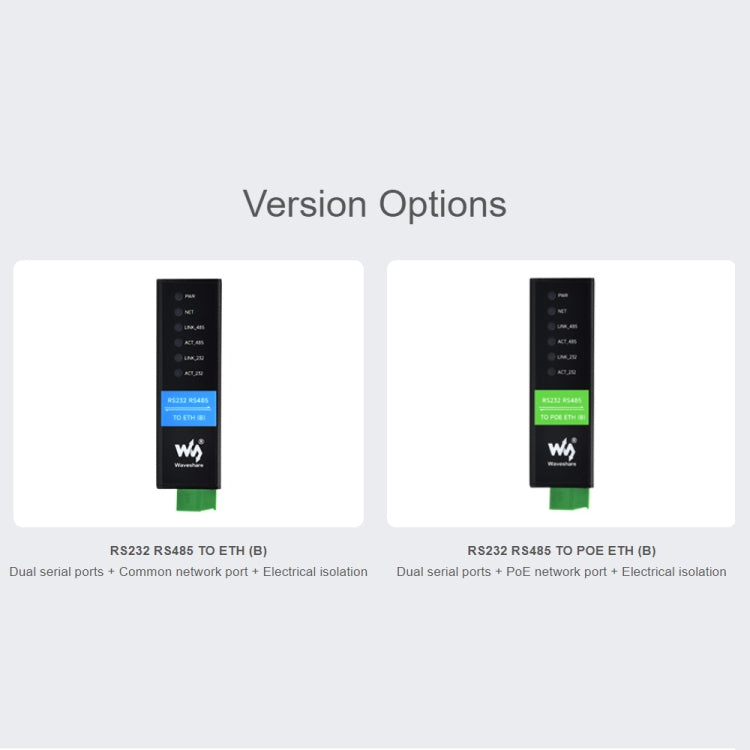

TO ETH (B): DC 5.5 power interface, 6~45V DC screw terminal
TO POE ETH (B): DC 5.5 power interface, 6~45V DC screw terminal, or PoE interface

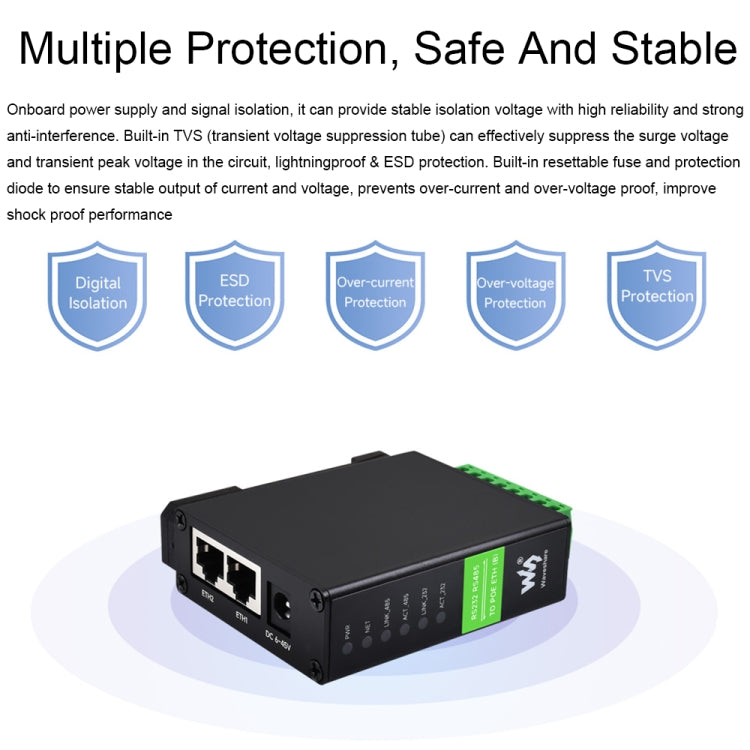

5. Isolation protection: power isolation, signal isolation
6. Ethernet:
TO ETH (B)：RJ45
TO POE ETH (B): RJ45 with PoE support, IEEE 802.3af compliant
10/100M self-negotiating RJ45 connector, 2KV surge protection
7. Serial port: Isolated RS232 and RS485 (2 channels can receive and send independently at the same time)
8. Baud rate: 300-115200 bps
9. Check digit: none, odd, even, mark, space
10. Data bits: 5-9 bits
11. Flow control: Not applicable
12. Protocol: Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS

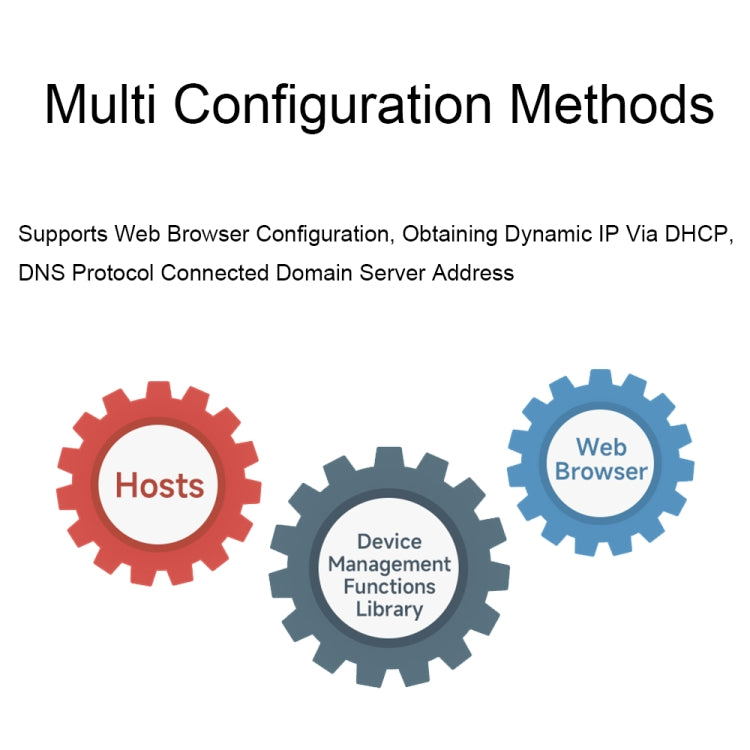

13. Configuration: host, browser, device management function library
14. Communication method: TCP/IP direct communication, VCOM

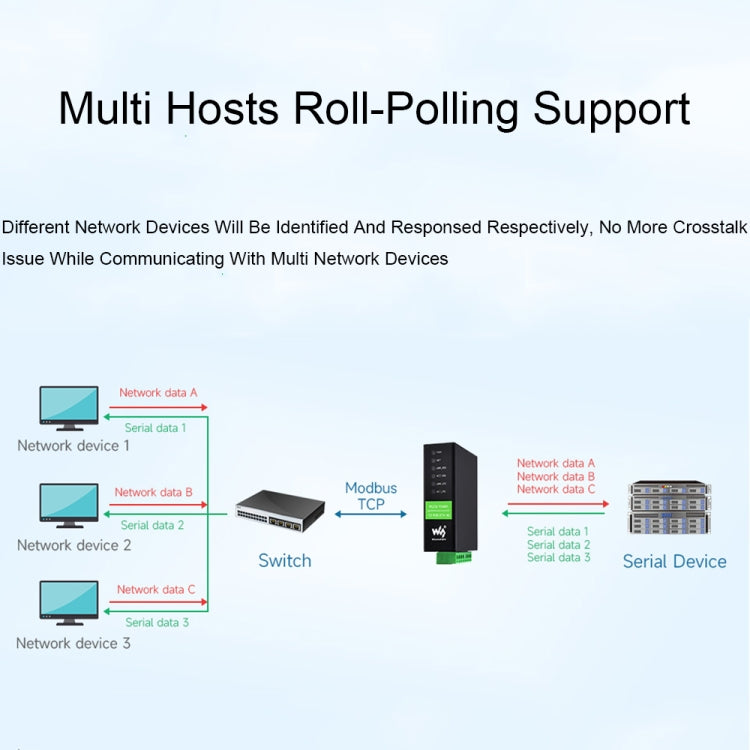

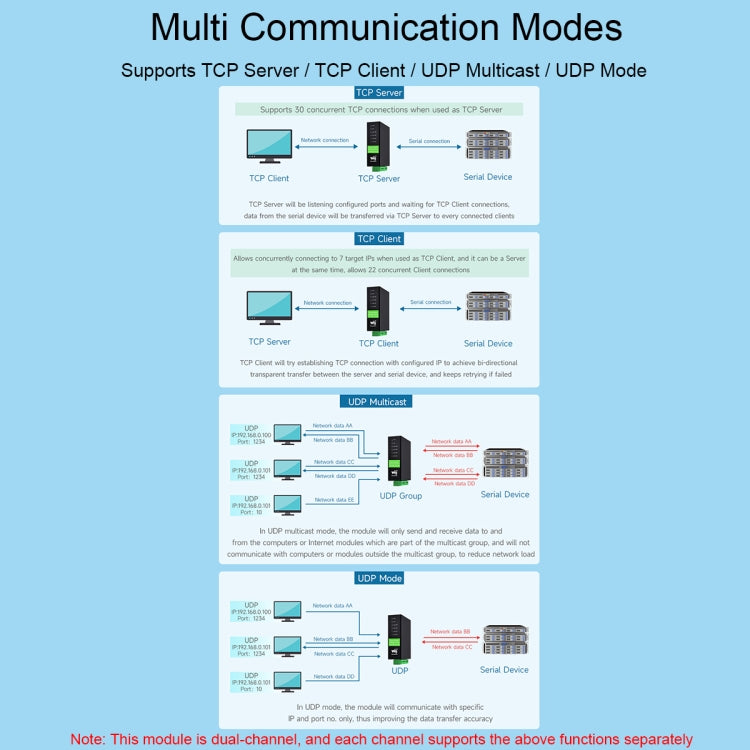

15. Working mode: TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
16. Working temperature: minus 40 degrees Celsius - 85 degrees Celsius
17. Humidity range: 5%-95% relative humidity

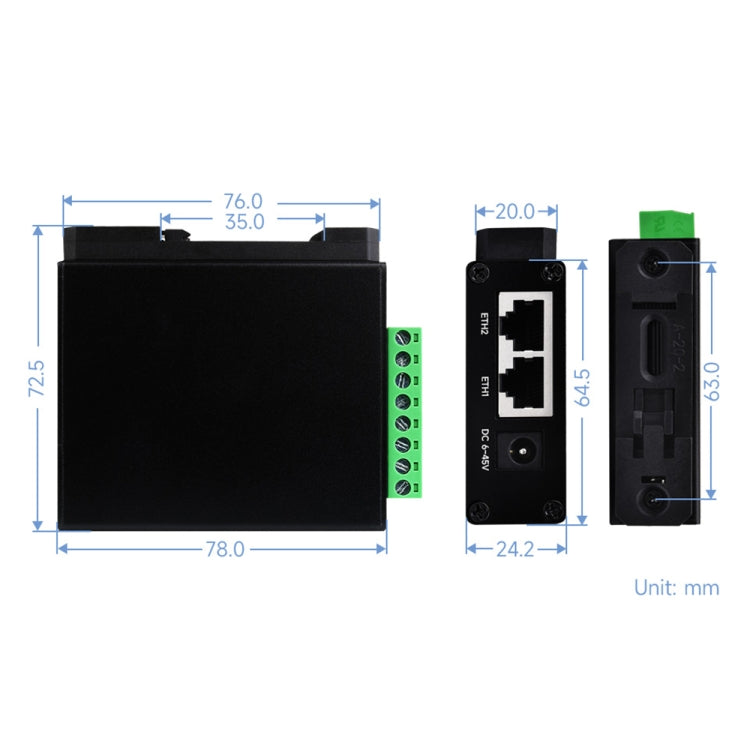

18. Product size: 78 x 72.5 x 24.2mm
19. Weight: 134 grams
