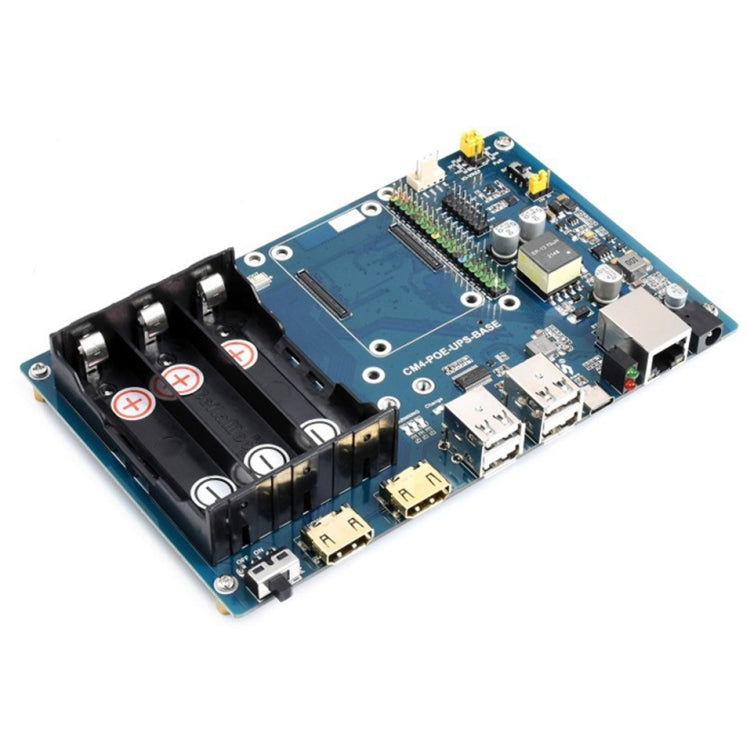

Waveshare PoE UPS Base Board for Raspberry Pi CM4, Gigabit Ethernet, Dual HDMI, Quad USB2.0
Waveshare PoE UPS Base Board for Raspberry Pi CM4, Gigabit Ethernet, Dual HDMI, Quad USB2.0
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R450.4/mo 3 months
- R227.75/mo 6 months
- R120.2/mo 12 months
- From R450.4/month over 3 months, or as low as R120.2/month over 12. Total repayable over 12 months: R1442.4. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes Included
Read shipping & tax policy ›This product is priced for DDP import handling. KifTech handles applicable import costs before delivery:
- Import duties – Included where applicable
- Customs fees – Handled before delivery
- Shipping – Free on orders over R750. R49 standard rate below R750.
✓ The checkout total shows the product and shipping amount you pay to KifTech. No separate import duty payment should be required on delivery.
Free Shipping over R750
R49 below R750. Taxes included. Read policy ›
Estimated Arrival
8–17 business days after order placement.
Delivery Timeline
Order Processing (0–3 days)
Order verified and dispatched. Tracking details provided by email.
Transit (8–14 business days)
Package is shipped internationally to South Africa via Buffalo Logistics.
30-day refund / replacement
Read full return policy ›Shipping Protection
Read full policy ›Encrypted Checkout
Read privacy policy ›Checkout uses encrypted payment processing to help protect your personal and payment details.
Accepted via PayFast:
Product Overview
1. PoE UPS Base For CM4: Uninterruptible power supply, powering the CM4 while recharging

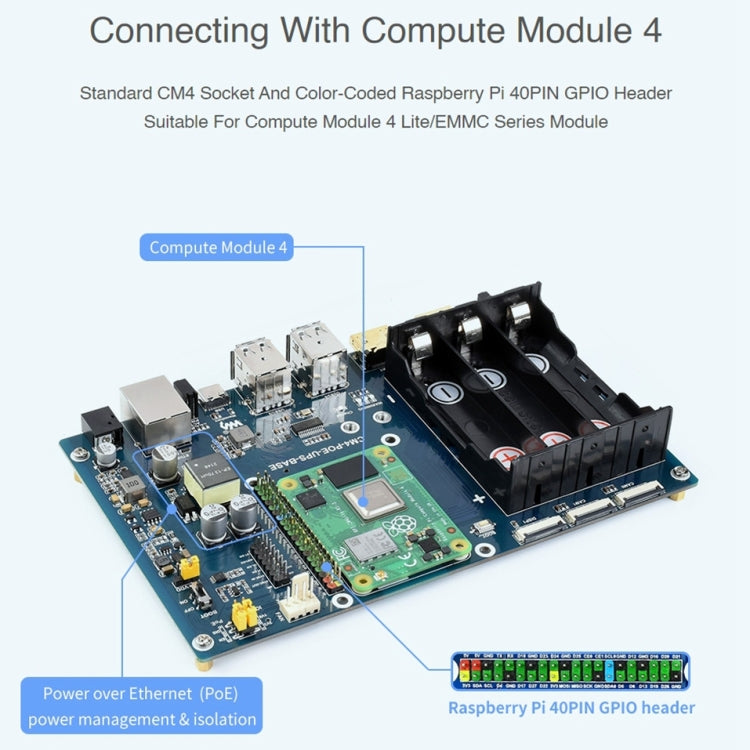

2. Connecting With Compute Module 4: Standard CM4 socket and color-coded Raspberry Pi 40PIN GPIO header. Suitable For Compute Module 4 Lite/EMMC Series Module

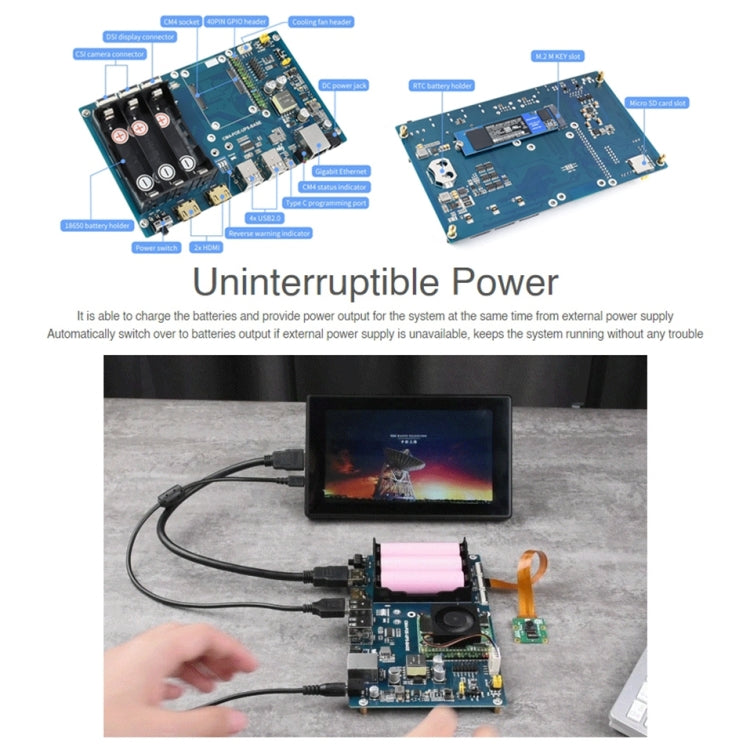

3. Uninterruptible Power: It is able to charge the batteries and provide power output for the system at the same time from external power supply. Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

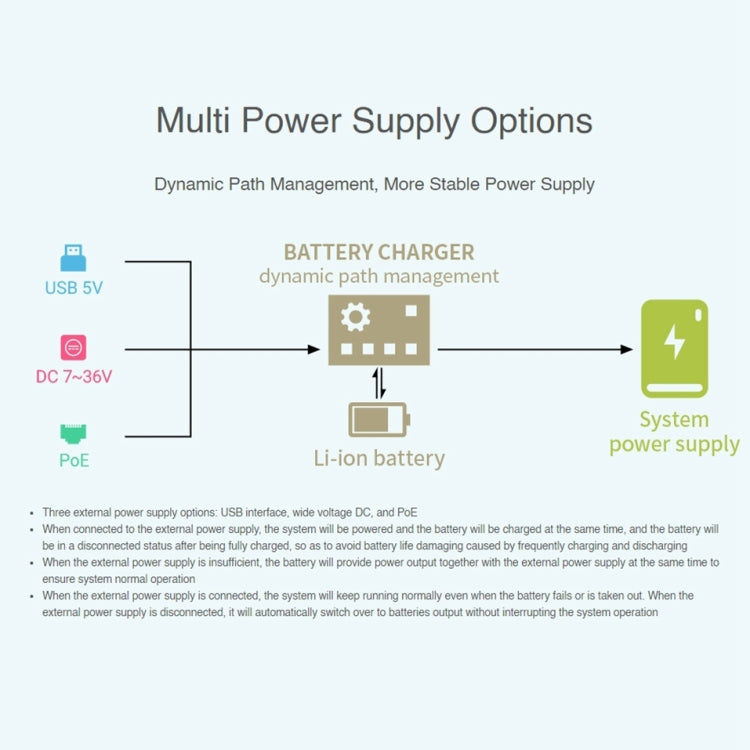

4. Multi Power Supply Options:
- Three external power supply options: USB interface, wide voltage DC, and PoE
- When connected to the external power supply, the system will be powered and the battery will be charged at the same time, and the battery will be in a disconnected status after being fully charged, so as to avoid battery life damaging caused by frequently charging and discharging
- When the external power supply is insufficient, the battery will provide power output together with the external power supply at the same time to ensure system normal operation
- When the external power supply is connected, the system will keep running normally even when the battery fails or is taken out. When the external power supply is disconnected, it will automatically switch over to batteries output without interrupting the system operation

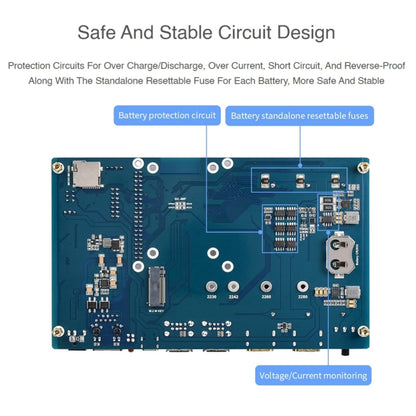

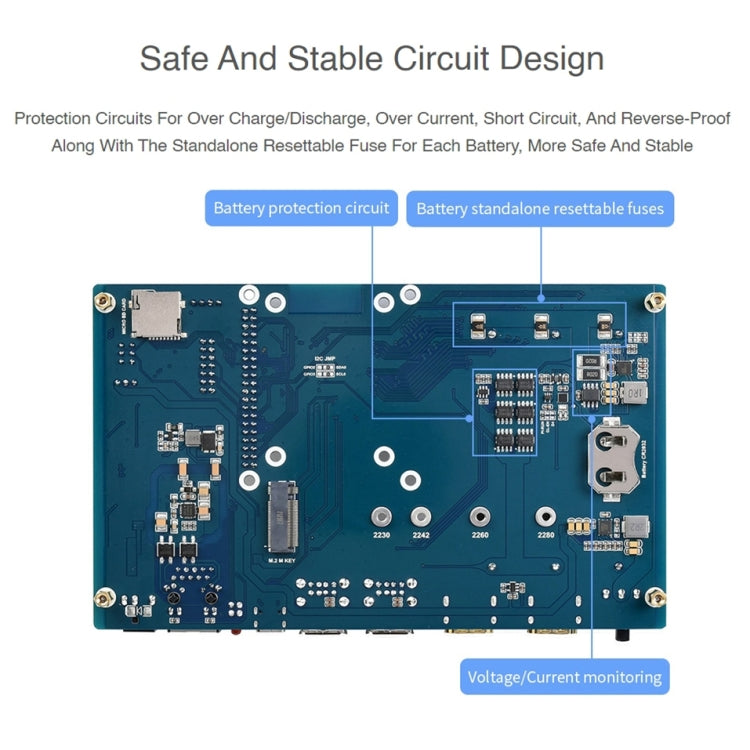

5. Safe And Stable Circuit Design: Protection circuits for over charge/discharge, over current, short circuit, and reverse-proof
along with the standalone resettable fuse for each battery, more safe and stable

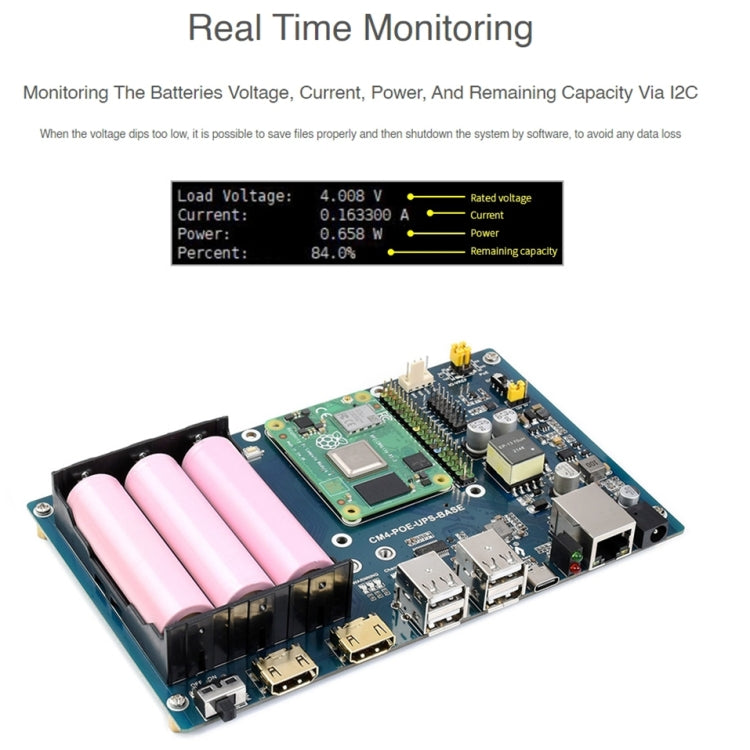

6. Real Time Monitoring: Monitoring the batteries voltage, current, power, and remaining capacity via I2C. (When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss)
Note: The 18650 batteries are not included
Specifications
1. CM4 socket: Suitable for all variants of Compute Module 4
2. Battery support: Parallel 18650 Li-ion battery x 3 (NOT included)
3. Networking: Gigabit Ethernet RJ45 connector, integrates 802.3af-compliant PoE circuit (5V/2.5A)
4. USB: USB 2.0 Type A ?? 4
5. Connector:
- Raspberry Pi 40PIN GPIO header
- M.2 M KEY slot, for connecting NVME SSD, or communication module with PCIE M.2 M KEY interface
6. Display: MIPI DSI port x 1 (22pin 0.5mm FPC connector)
7. Camera: MIPI CSI-2 port x 2 (22pin 0.5mm FPC connector)
8. Video: HDMI x 2, supports 4K 30fps output
9. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
10. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
11. Fan: Allows speed adjustment and measurement, 5V / 12V
12. Indicator:
- M.2 status LED
- CM4 status LED
13. Power input7-36V

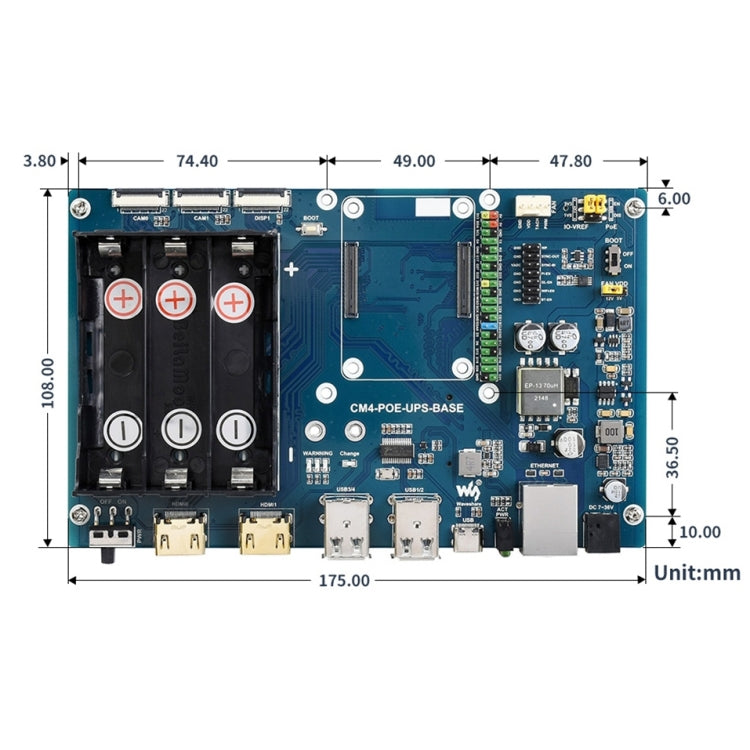

14. Dimensions: 175.0 x 108.0mm
