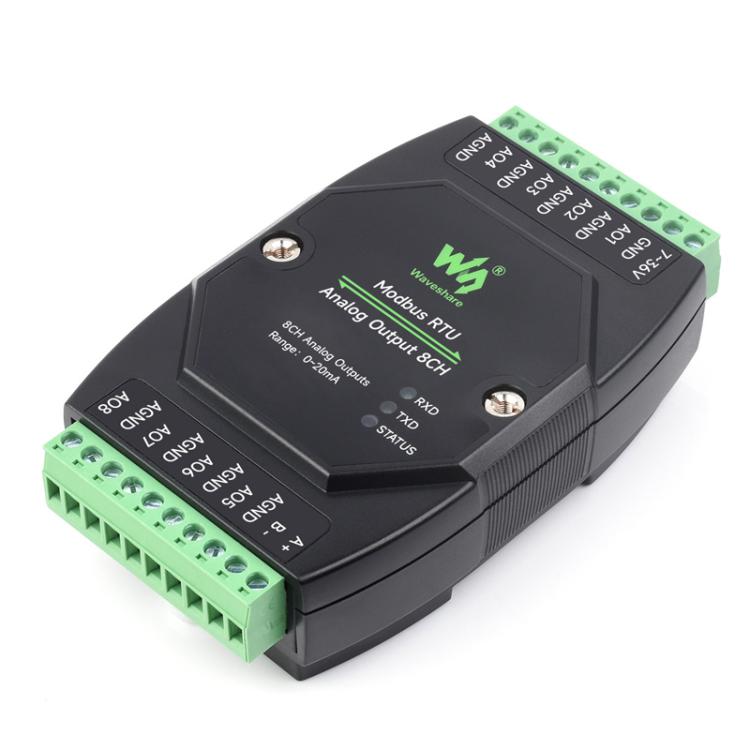

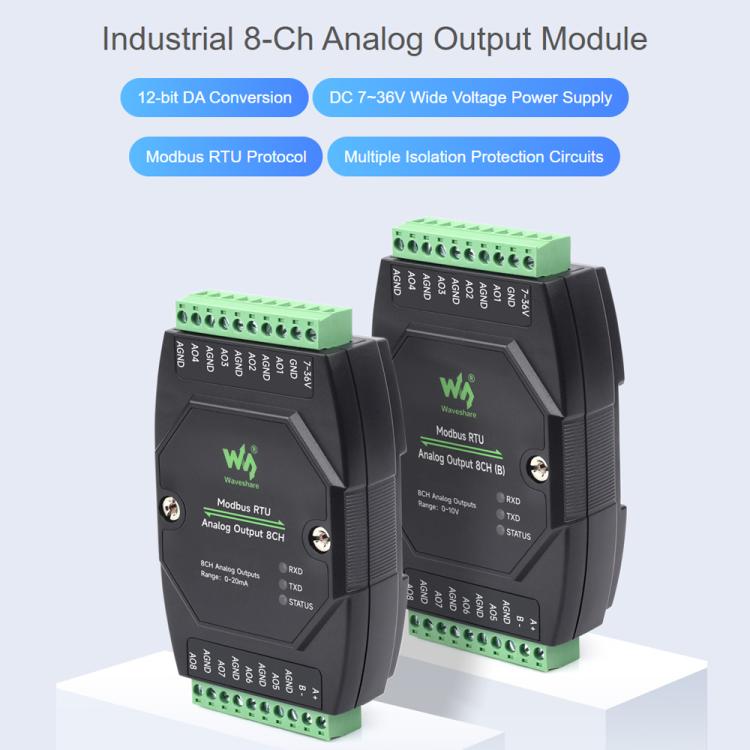

Waveshare Industrial 8-Ch Analog Output Module 12-Bit DA Conversion Current

1. Modbus RTU Analog Output 8CH is an industrial standard analog output module, supports 8-ch simultaneous output. Adopts Modbus RTU protocol with built-in protection circuits such as power isolation, magnetical isolation, resettable fuse, and TVS.

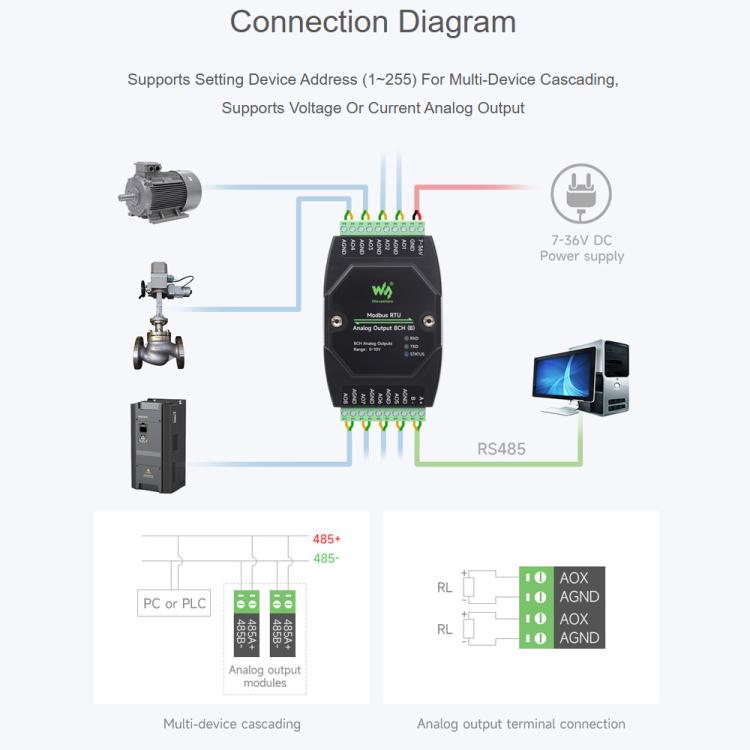

2. Supports setting device address (1 to 255) to cascade multiple devices via RS485 bus.

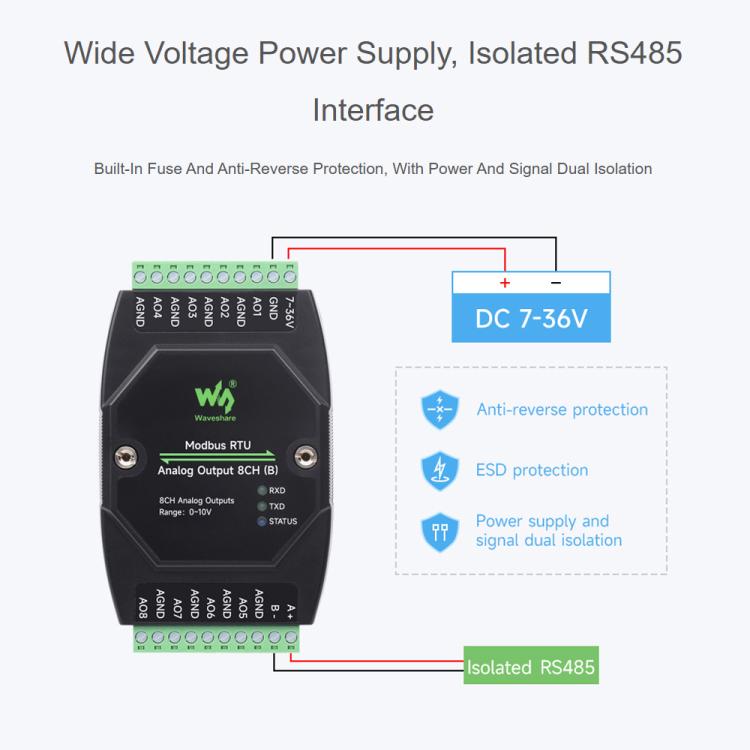

3. On-board voltage regulator chip supports wide voltage supply from 7 to 36V.

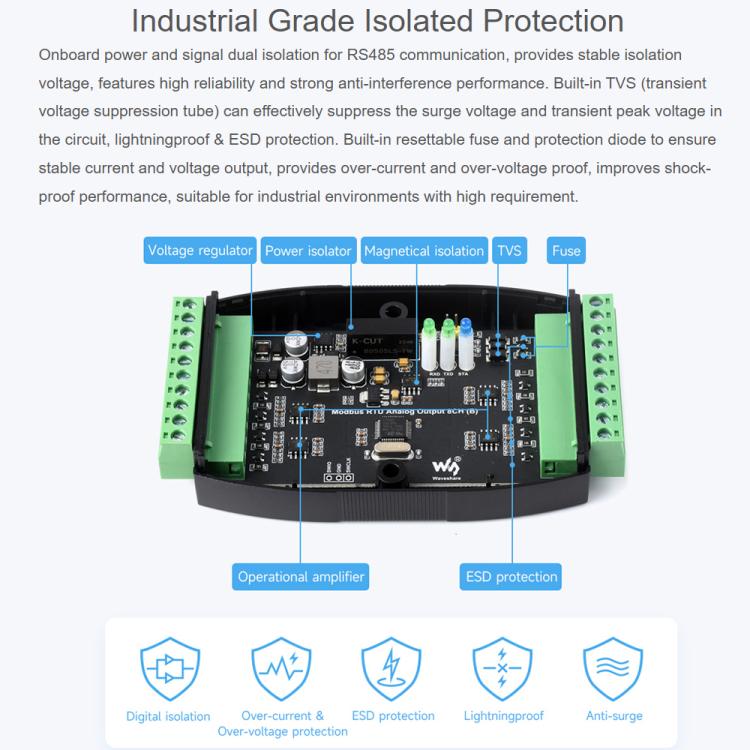

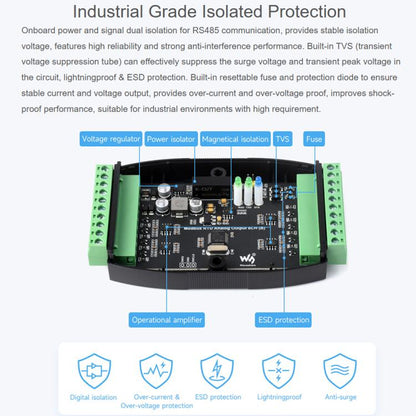

4. On-board integrated power isolation provides stable isolation voltage; the isolated end requires no additional power supply.
5. On-board integrated magnetic coupling isolation enables signal isolation, with high reliability and strong anti-interference capability.
6. On-board self-recovery fuse and TVS (Transient Voltage Suppressor) effectively suppress surge voltage and transient spike voltage in the circuit, protecting against overcurrent, overvoltage, lightning, and static electricity.

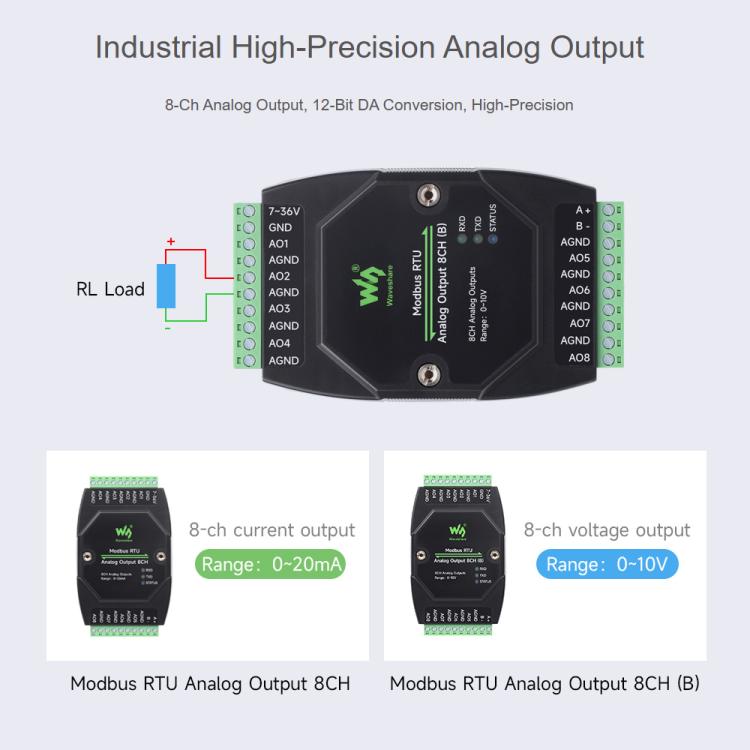

7. 12-bit DA conversion with high-precision resistors ensures more accurate output data.
8. Built-in watchdog ensures stable output without crashing.

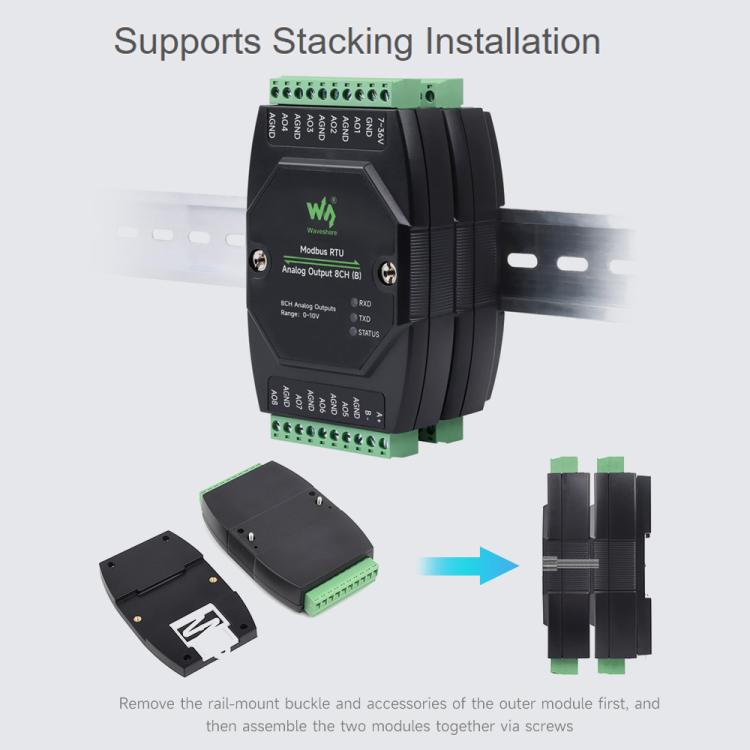

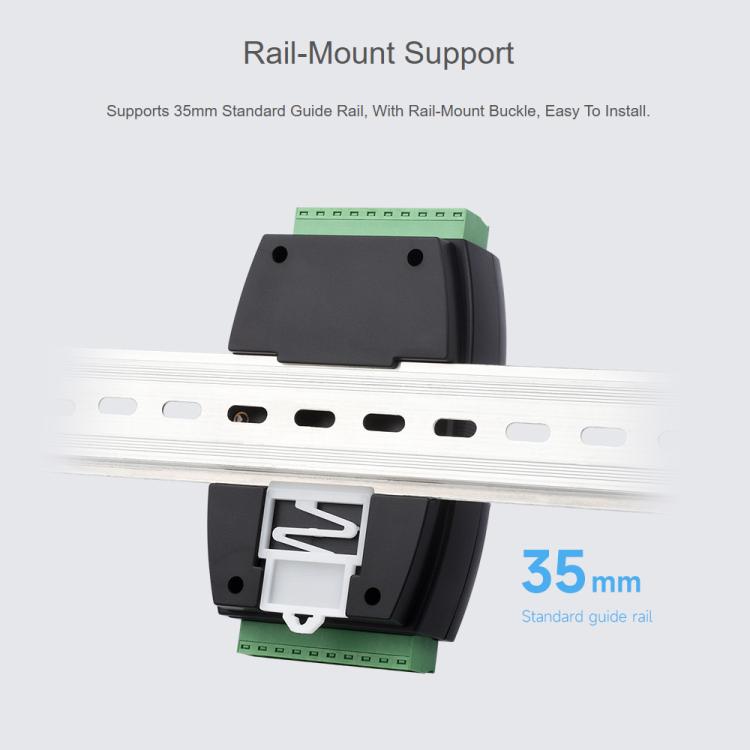

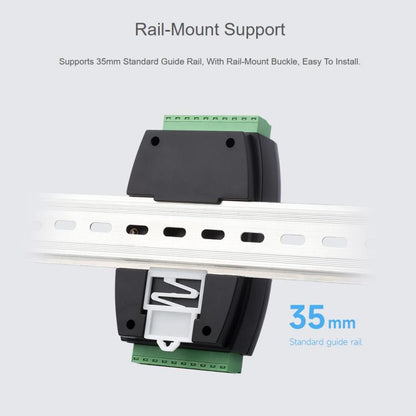

9. Rail-mounted enclosure design supports stackable combination, enabling easy installation and safer use.

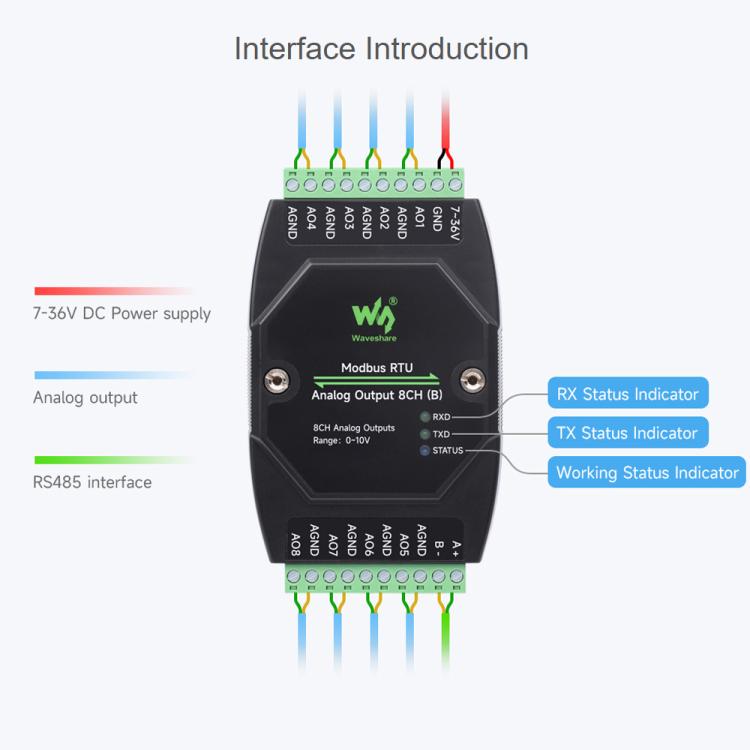

10. External 3 LED indicators for convenient viewing of MCU status and signal transmission/reception status.

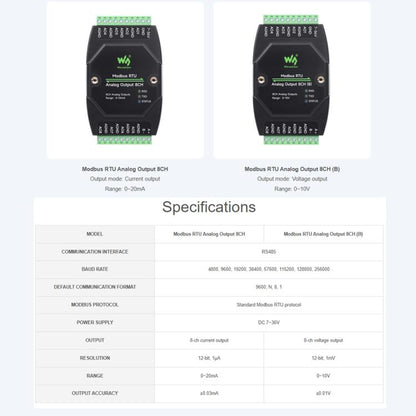

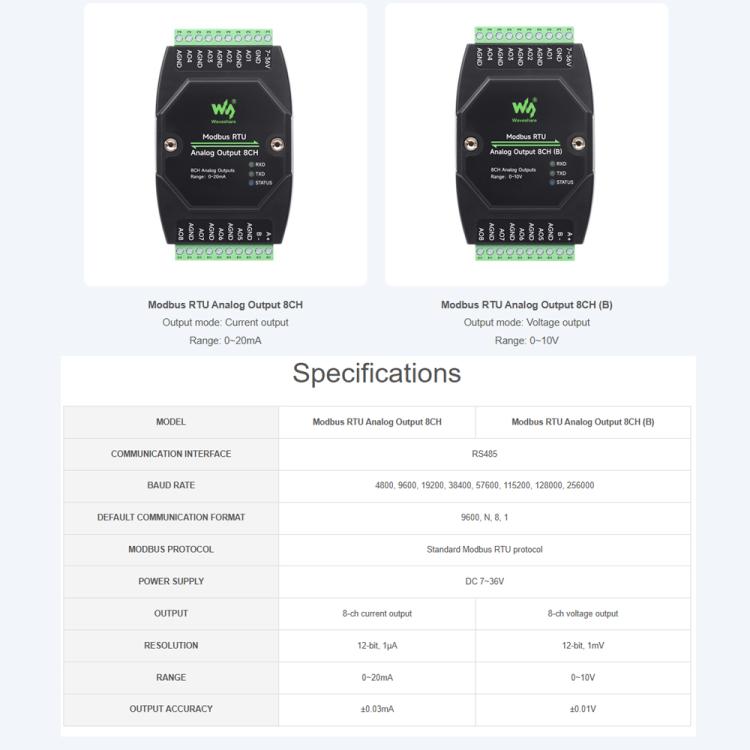

Parameters:
1. Communication Interface: RS485
2. Communication Baud Rate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
3. Default Communication Format: 9600, N, 8, 1
4. Modbus Protocol: Standard Modbus RTU Protocol
5. Supply Voltage: DC 7 to 36V
6. Output Mode: 8-channel current output / 8-channel voltage output
7. Resolution: 12-bit, 1 microampere / 12-bit, 1 millivolt
8. Range: 0~20mA / 0~10V
9. Output Accuracy: +/-0.03mA / +/-0.01V
