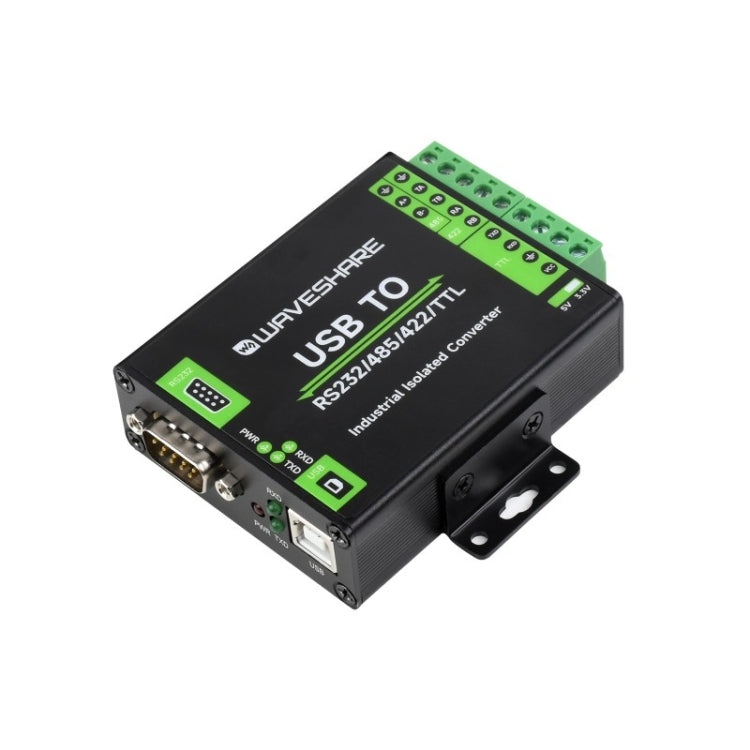

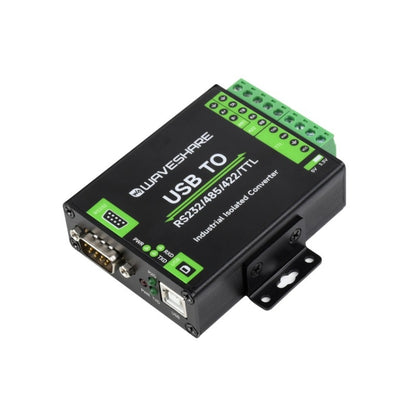

Waveshare FT232RNL USB To RS232/485/422/TTL Interface Industrial Isolation Converter, 23996
Waveshare FT232RNL USB To RS232/485/422/TTL Interface Industrial Isolation Converter, 23996
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R266.63/mo 3 months
- R134.83/mo 6 months
- R71.16/mo 12 months
- From R266.63/month over 3 months, or as low as R71.16/month over 12. Total repayable over 12 months: R853.92. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes Included
Read shipping & tax policy ›This product is priced for DDP import handling. KifTech handles applicable import costs before delivery:
- Import duties – Included where applicable
- Customs fees – Handled before delivery
- Shipping – Free on orders over R750. R49 standard rate below R750.
✓ The checkout total shows the product and shipping amount you pay to KifTech. No separate import duty payment should be required on delivery.
Free Shipping over R750
R49 below R750. Taxes included. Read policy ›
Estimated Arrival
8–17 business days after order placement.
Delivery Timeline
Order Processing (0–3 days)
Order verified and dispatched. Tracking details provided by email.
Transit (8–14 business days)
Package is shipped internationally to South Africa via Buffalo Logistics.
30-day refund / replacement
Read full return policy ›Shipping Protection
Read full policy ›Encrypted Checkout
Read privacy policy ›Checkout uses encrypted payment processing to help protect your personal and payment details.
Accepted via PayFast:
Product Overview
Features

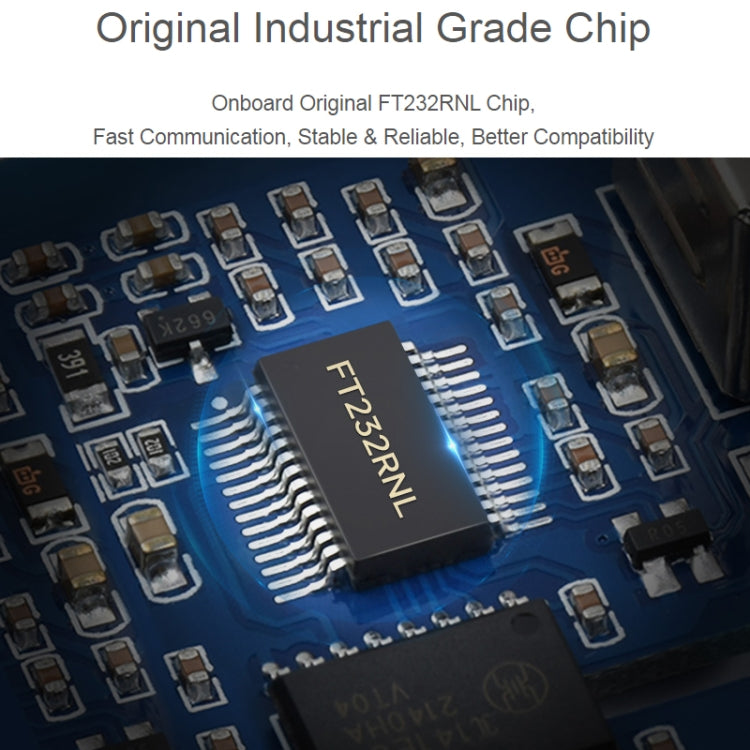

1. Adopt original FT232RNL chip, fast communicating, stable and reliable, better compatibility
2. Supports multiple communication interface conversion: USB to RS232, USB to RS485, USB to RS422, USB to TTL

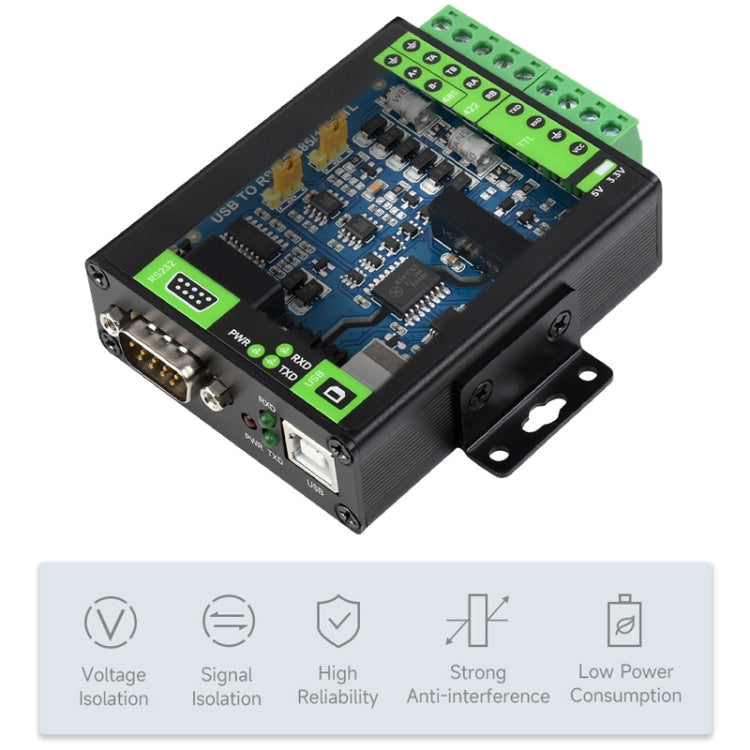

3. Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
4. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

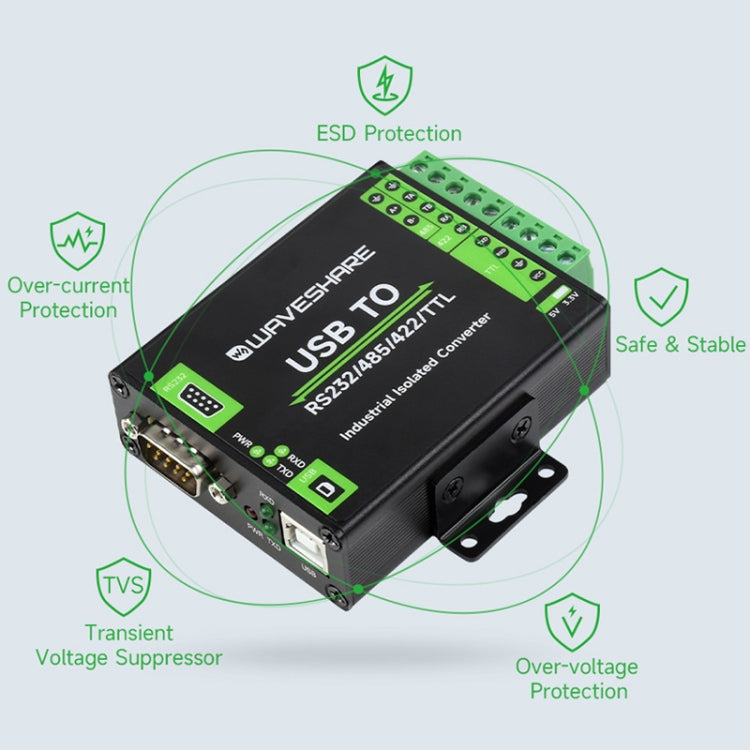

5. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
6. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
7. Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering with each other
8. Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch
9. 3 LEDs for indicating the power and transceiver status
10. High quality USB-B and RS232 connectors, smoothly plug/pull

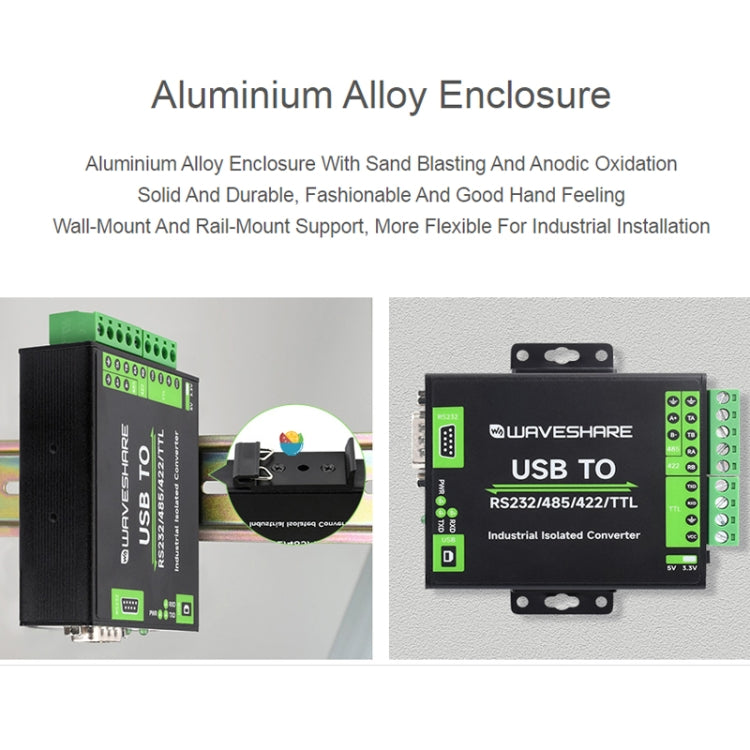

11. Industrial grade metal case, supports wall-mount and rail-mount installations, solid and beautiful, easy to install
Specifications
1. Product type: Industrial grade digital isolated converter
2. Operating system: for Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7
3. Operating temperature: -15℃ ~ 70℃

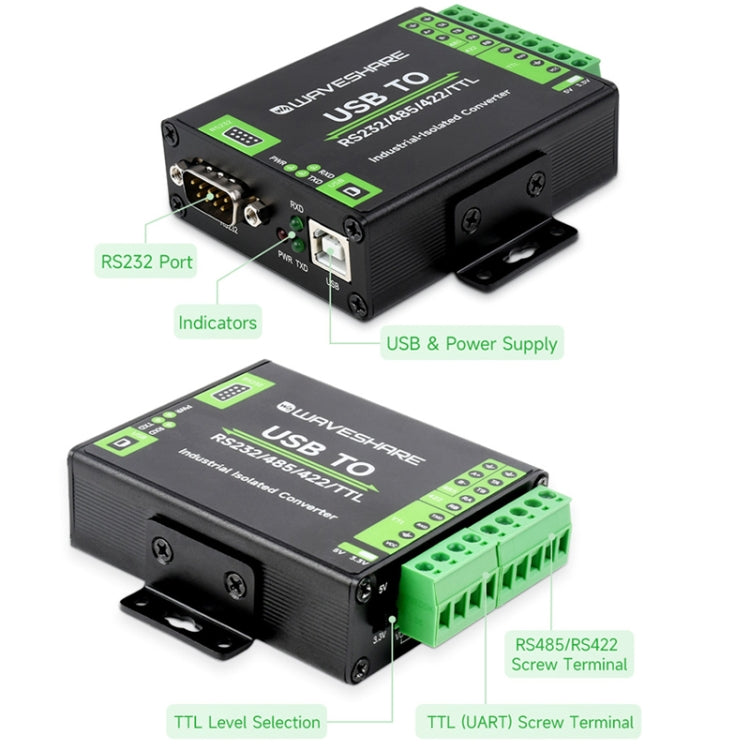

4. Device port: RS232/485/422/TTL
5. Host port: USB
6. USB:
- Operating voltage: 5V
- Connector: USB-B
- Protection: 200mA self-recovery fuse, isolated output
7. RS232:
- Connector: DB9 male
- Protection: TVS diode, surge protection & ESD protection
- Transmission mode: Point-to-point
- Baud rate: 300bps ~ 3Mbps

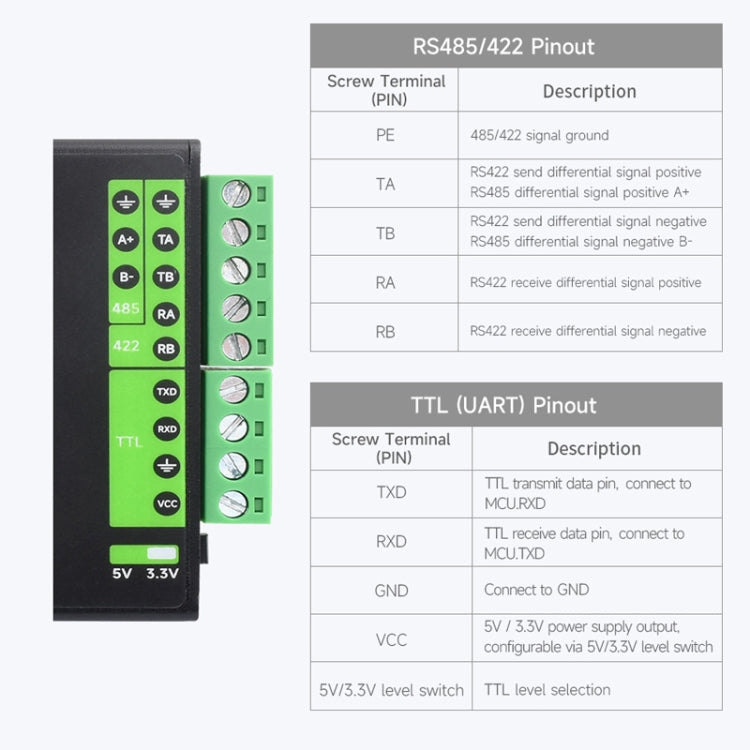

8. RS485/422:
- Connector: Screw terminal
- Direction control: Hardware automatic control
- Protection: 600W lightningproof and surge-suppress, 15KV ESD protection (reserved two 120R balancing resistors, enabled/disabled via jumper)
- Transmission mode: Point-to-multipoints (485 mode: up to 32 nodes, it is recommended to use repeaters for 16 nodes or more； 422 mode: up to 256 nodes, it is recommended to use repeaters for 16 nodes or more)
- Baud rate: 300bps ~ 3Mbps
9. TTL (UART):
- Connector: Screw terminal
- Pins: TXD, RXD, GND, 5V/3.3V
- Protection: Clamp protection diode, over-voltage/negative-voltage proof, shock resistance
- Transmission mode: Point-to-point
- Baud rate: 300bps ~ 3Mbps
10. Indicators:
- PWR: Red power indicator, light up when there is USB connection and voltage is detected
- TXD: TX indicator, light up when the USB port sends data
- RXD: RX indicator, light up when the device ports send data back
11. Package contents:
- USB TO RS232/485/TTL x1
- USB cable x1
