Waveshare AW9523B IO Expansion Board, I2C Interface, Expands 16 I/O Pins
Waveshare AW9523B IO Expansion Board, I2C Interface, Expands 16 I/O Pins
In Stock
Processed in 0–3 days
Regular price
R 279.00
Regular price
Sale price
R 279.00
Shipping R49 · free over R750
Pay monthly with
Pay with Mobicred
Mobicred is a revolving credit facility. One monthly account payment covers your purchases.
- Interest and fees apply. Your repayment amount, interest rate and applicable fees are set out in your Mobicred agreement.
- Credit is subject to approval and an affordability assessment. You need an approved Mobicred account and sufficient available credit.
Choose Payfast at checkout, then select Mobicred on the Payfast payment page where it is available.
Mobicred credit is provided by RCS Cards Proprietary Limited, trading as Mobicred. RCS is a registered credit provider (NCRCP38). Read Mobicred terms and conditions
Quantity
Free Shipping over R750
R49 on orders of R750 or less. Duties & import tax included. Read policy ›
Delivery timeline
1. Order processing (0–3 days)
Order verified and dispatched from our International Fulfillment Center (China). Tracking details are provided by email.
2. Transit (8–14 business days)
Your package is shipped to South Africa through KifTech’s Delivered Duty Paid (DDP) delivery process. The shipping method is shown in your cart and confirmed at checkout.
Shipping protection Read full policy ›
Late Delivery
If your order arrives later than the estimated timeframe, you may request a R20 store credit after delay verification.
15-calendar-day tracking
If your order has not been delivered and tracking shows no movement for 15 consecutive calendar days after dispatch, contact us. After verification and investigation, we may offer a free reshipment or refund.
30-calendar-day non-delivery
If your order has not been delivered within 30 calendar days after dispatch, contact us. After verification, you may choose a refund to your original payment method or a replacement shipment.
Duties & import tax included at checkout
Read shipping, duties & tax policy ›KifTech uses a Delivered Duty Paid (DDP) delivery process for all orders. Applicable import duties, import tax and customs fees are included in the amount shown at checkout and handled before delivery.
- Import duties – Included in the checkout amount where applicable
- Import tax & customs fees – Included in the checkout amount and handled before delivery
- Shipping – Free on orders over R750. R49 standard rate on orders of R750 or less.
✓ The checkout total shows the product amount, applicable import duties, import tax and customs fees, and any shipping charge. No separate import or customs payment should be required on delivery.
30-day returns & 6-month fault cover
Read full return policy ›Refund timeline
Processed to your original payment method within 5 calendar days after your return is received and inspected.
Shipping fee
Return shipping support is provided for confirmed faulty items. Customers cover return shipping for change-of-mind returns. No restocking or handling fee is deducted from the refund of change-of-mind returns. The original shipping fee is not refunded.
Exchanges
We do not process direct exchanges for change-of-mind returns. If you would like a different item, model, colour, size, or variant, return the original item under the Change-of-Mind Returns terms and place a new order for your preferred item. Faulty, damaged, or incorrect items may be replaced at no additional shipping cost once the return has been reviewed and approved. Where applicable, your rights to a repair, replacement, or refund remain unchanged.
Warranty
7-day cooling-off for online orders (refund of the price paid, less return costs; the original shipping fee is not refunded), 30 days for unused change-of-mind returns, plus a standard 6-month warranty for manufacturing faults.
Encrypted Checkout
Read privacy policy ›Checkout uses encrypted payment processing to help protect your personal and payment details.
Accepted payment methods:
Description
Features

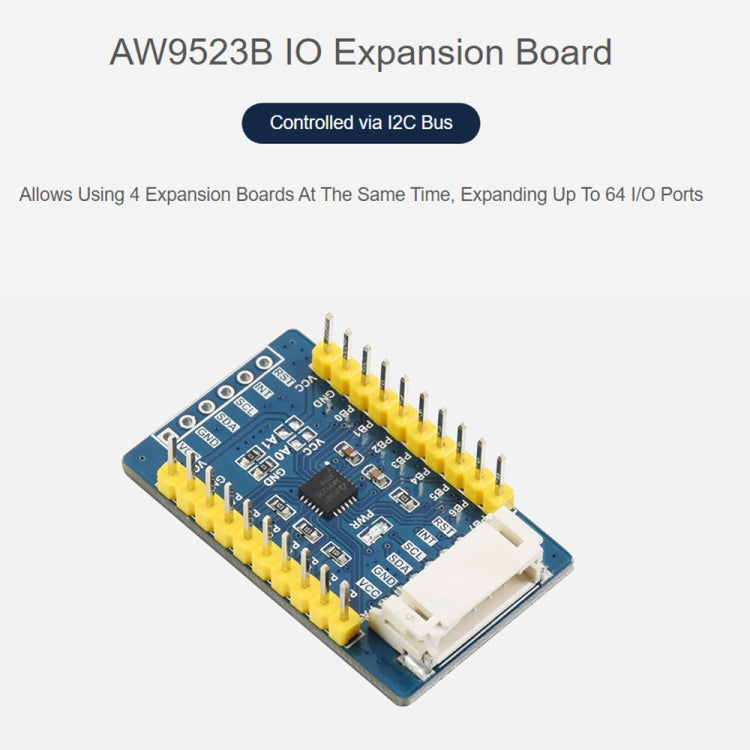

1. I2C bus, allows expanding 16 I/O ports by just using two wires
2. Support driving 16-ch common anode constant current LED, 256-step linear dimming, current controllable
3. Output interrupt (INT) signal when changing the state of an input port
4. I2C address configurable by shorting the A0/A1 jumpers

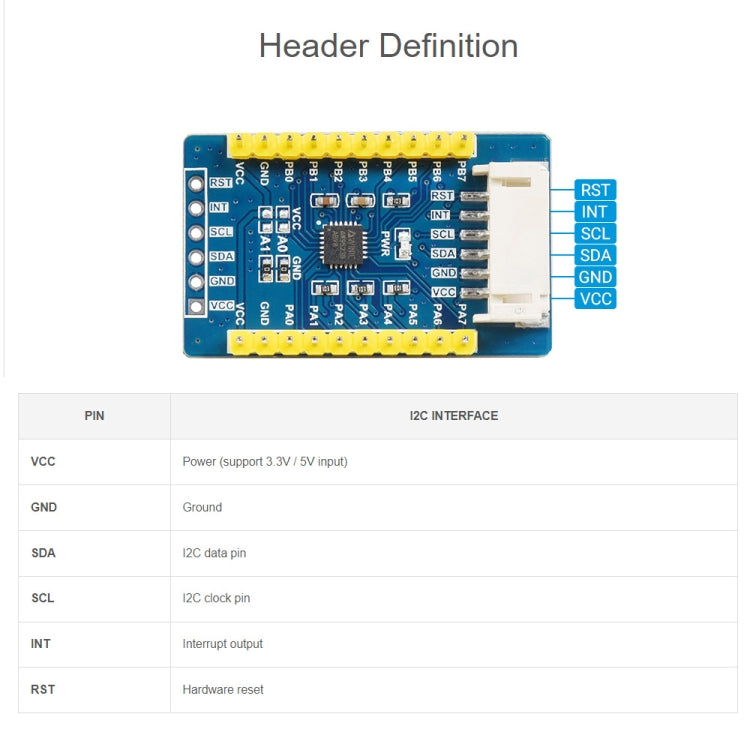

5. Provide two connector options: PH2.0 header and/or solder pads, allows multi I2C modules to be stacked
6. Onboard voltage translator, compatible with 3.3V/5V level

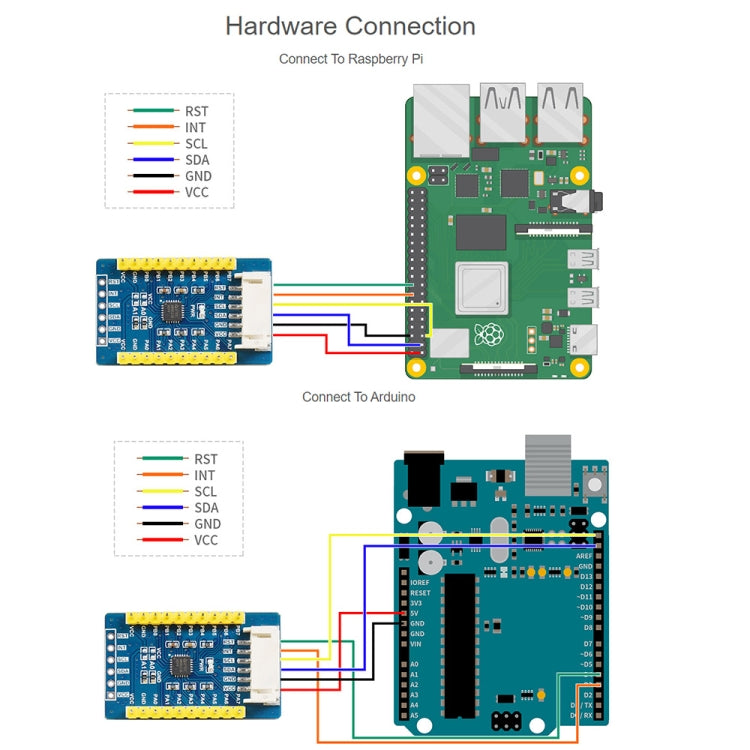

7. Come with development resources and manual (examples for Raspberry Pi / micro:bit / Arduino / STM32)
Specifications
1. Working voltage: 2.4-5.5V
2. Working temperature: -40-85 degree c
3. Low Standby Current: Less than 0.1uA
4. Control interface: I2C
5. Expansion I/O pins: 16

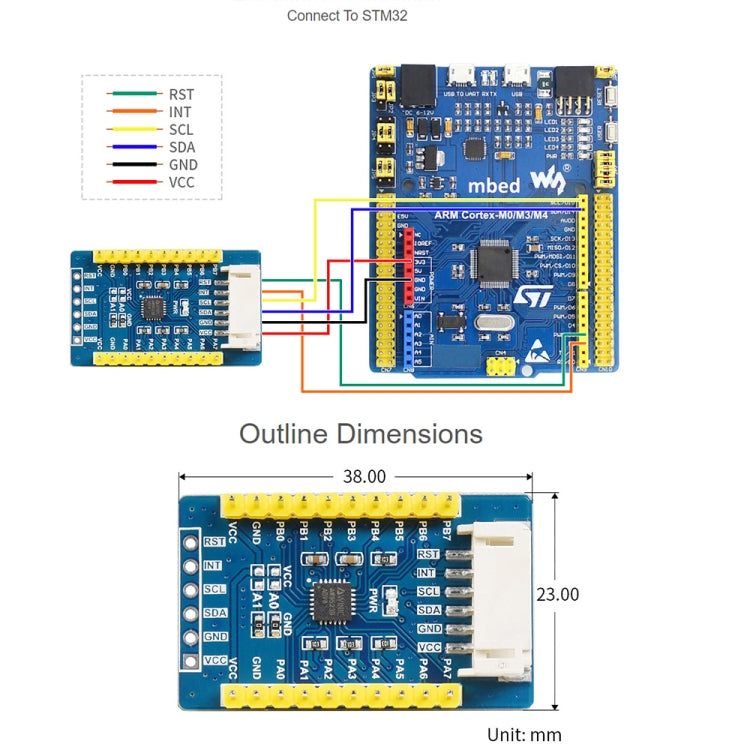

6. Size: 38x23mm
Package List

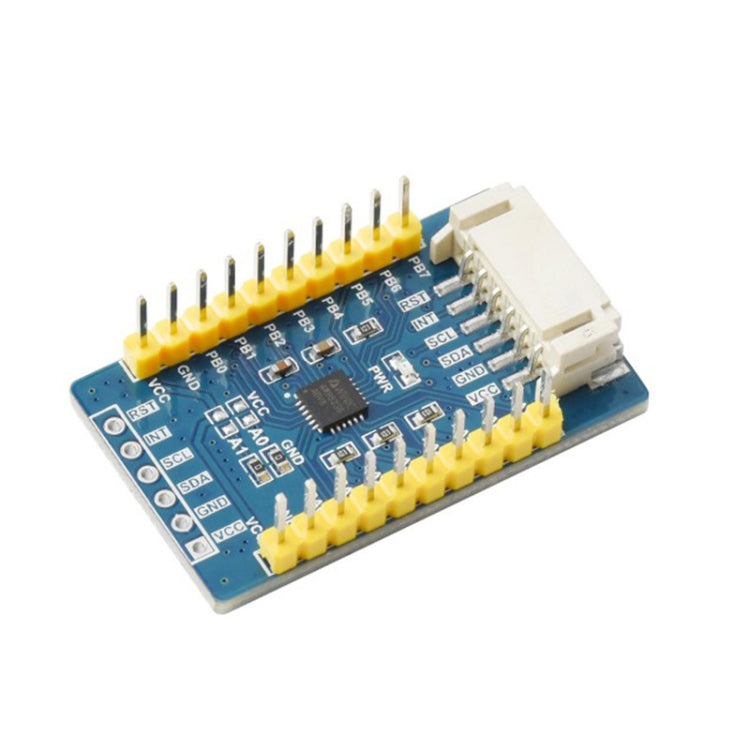

1. AW9523B IO Expansion Board x 1
2. PH2.0 6PIN wire x 1
1. I2C bus, allows expanding 16 I/O ports by just using two wires
2. Support driving 16-ch common anode constant current LED, 256-step linear dimming, current controllable
3. Output interrupt (INT) signal when changing the state of an input port
4. I2C address configurable by shorting the A0/A1 jumpers
5. Provide two connector options: PH2.0 header and/or solder pads, allows multi I2C modules to be stacked
6. Onboard voltage translator, compatible with 3.3V/5V level
7. Come with development resources and manual (examples for Raspberry Pi / micro:bit / Arduino / STM32)
Specifications
1. Working voltage: 2.4-5.5V
2. Working temperature: -40-85 degree c
3. Low Standby Current: Less than 0.1uA
4. Control interface: I2C
5. Expansion I/O pins: 16
6. Size: 38x23mm
Package List
1. AW9523B IO Expansion Board x 1
2. PH2.0 6PIN wire x 1
Specifications
- Brand
- WAVESHARE
- Product type
- Modules Expansions Accessories
- SKU
- DIY0290
- Dispatch facility
- International Fulfillment Center (China)
