TTGO Meshtastic T-Beam V1.1 ESP32 923MHz OLED WiFi Bluetooth GPS NEO-6M SMA 18650 Battery Holder
TTGO Meshtastic T-Beam V1.1 ESP32 923MHz OLED WiFi Bluetooth GPS NEO-6M SMA 18650 Battery Holder
In Stock
Processed in 0–3 calendar days
Regular price
R 1,219.00
Regular price
Sale price
R 1,219.00
Free shipping on this item
Pay monthly with
Pay with Mobicred
Mobicred is a revolving credit facility. One monthly account payment covers your purchases.
- Interest and fees apply. Your repayment amount, interest rate and applicable fees are set out in your Mobicred agreement.
- Credit is subject to approval and an affordability assessment. You need an approved Mobicred account and sufficient available credit.
Choose Payfast at checkout, then select Mobicred on the Payfast payment page where it is available.
Mobicred credit is provided by RCS Cards Proprietary Limited, trading as Mobicred. RCS is a registered credit provider (NCRCP38). Read Mobicred terms and conditions
Quantity
Free Shipping over R750
R49 on orders of R750 or less. Duties included, no VAT collected. Read policy ›
Delivery timeline
1. Order processing (0–3 calendar days)
Order verified and dispatched from our International Fulfillment Center (China). Tracking details are provided by email.
2. Transit (8–14 business days)
Your package is shipped to South Africa through KifTech’s Delivered Duty Paid (DDP) delivery process. The shipping method is shown in your cart and confirmed at checkout.
Shipping protection Read full policy ›
Late Delivery
If your order arrives later than the estimated timeframe, you may request a R20 store credit after delay verification.
15-calendar-day tracking
If your order has not been delivered and tracking shows no movement for 15 consecutive calendar days after dispatch, contact us. After verification and investigation, we may offer a free reshipment or refund.
30-calendar-day non-delivery
If your order has not been delivered within 30 calendar days after dispatch, contact us. After verification, you may choose a refund to your original payment method or a replacement shipment.
Duties included at checkout, no VAT collected
Read shipping and duties policy ›KifTech uses a Delivered Duty Paid (DDP) delivery process for all orders. Applicable import duties and customs fees are included in the price shown at checkout and handled before delivery. No VAT is collected from you at checkout.
- Import duties – Included in the price shown at checkout where applicable
- Customs fees – Included in the price shown at checkout and handled before delivery
- Shipping – Free on orders over R750. R49 standard rate on orders of R750 or less.
✓ The checkout total shows the product amount and any shipping charge. Applicable import duties and customs fees are included in the price shown at checkout. No VAT is collected from you at checkout. No separate duties or customs-fee payment should be required on delivery.
30-day returns & 6-month fault cover
Read full return policy ›Refund timeline
Processed to your original payment method within 5 calendar days after your return is received and inspected.
Shipping fee
Return shipping support is provided for confirmed faulty items. Customers cover return shipping for change-of-mind returns. No restocking or handling fee is deducted from the refund of change-of-mind returns. The original shipping fee is not refunded for change-of-mind returns. For an approved faulty, damaged, or incorrect item, where a refund is given, the original shipping fee is refunded as well as the item price.
Exchanges
We do not process direct exchanges for change-of-mind returns. If you would like a different item, model, colour, size, or variant, return the original item under the Change-of-Mind Returns terms and place a new order for your preferred item. Faulty, damaged, or incorrect items may be replaced at no additional shipping cost once the return has been reviewed and approved. Where applicable, your rights to a repair, replacement, or refund remain unchanged.
Warranty
7-day cooling-off for online orders (refund of the price paid, less return costs; the original shipping fee is not refunded), 30 days for unused change-of-mind returns, plus a standard 6-month warranty for manufacturing faults.
Encrypted Checkout
Read privacy policy ›Checkout uses encrypted payment processing to help protect your personal and payment details.
Accepted payment methods:
Description

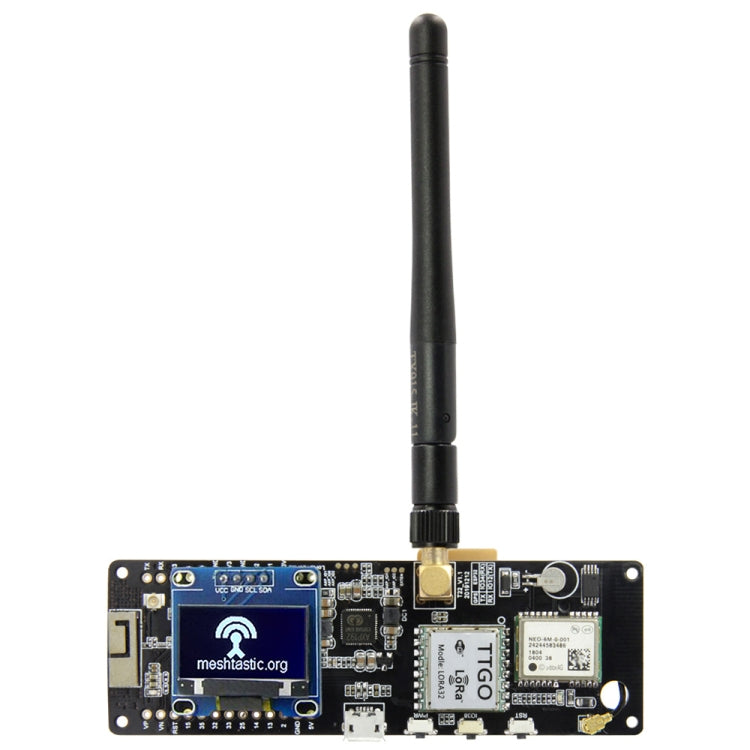

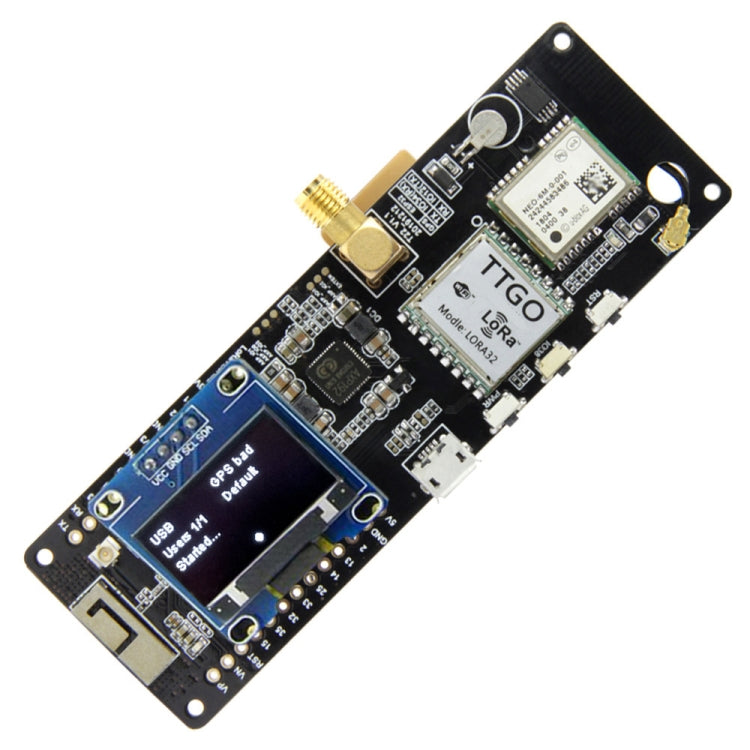

Product demonstration (Note: OLED is not soldered to T-beam)
Features:
1. ESP 32 version: Rev1
2. WiFi
3. Bluetooth
4. 4MB pSRAM
5. 4MB flash memory
6. Three-dimensional antenna
product description:
1. Working voltage: 1.8~3.7V
2. Acceptable current: 10~14 mA
3. Transmitting current: 120 mA@+20 dBm
4. 90 mA@+17 dBm
5. 29 mA@+13 dBm
6. Working frequency: 433/470 MHz (433 HMz version) SX1278 /868m/915 m (868 MHz version) SX1276
7. Transmitting power: +20 dBm
8. Receiving sensitivity:
-139 dBm@Lora&62.5Khz&SF=12&146 bps
-136 dBm@Lora&125 Khz&SF=12&293 bps
-118 dBm@Lora&125 Khz&SF=6&9380 bps
-123 dBm@FSK&5 Khz&1.2Kbps
9. Frequency error: +/-15 kHz
10. FIFO space: 64 bytes
11. Data rate:
1.2k~300 Kbps@FSK
0.018K~37.5Kbps@Lora
12. Modulation method: FSK, GFSK, MSK, GMSK, Lora TM, OOK
13. Interface form: SPI
14. Sleep current: 0.2uA
15. 1.5uA@Idle
16. Working temperature: -40 degrees Celsius-+85 degrees Celsius
17. Digital RSSI function
18. Automatic frequency correction
19. Automatic gain control
20. Low pressure detection
21. Fast wake-up and frequency hopping
22. Highly configurable packet handler
Global Positioning System:
1. GPS module neo-6m, 3V-5V power supply universal
2. The predetermined module with ceramic antenna, super signal
3. Save configuration parameter data EEPROM
4. With data backup battery
5. With LED signal indicator
6. The default baud rate: 9600
power:
1. TP 5400
2. 1A battery management
3. LED indicator: there are 4 LEDs to display the battery status in real time
4. USB
5. CP 2104-GMR
6. Pre-Flash firmware

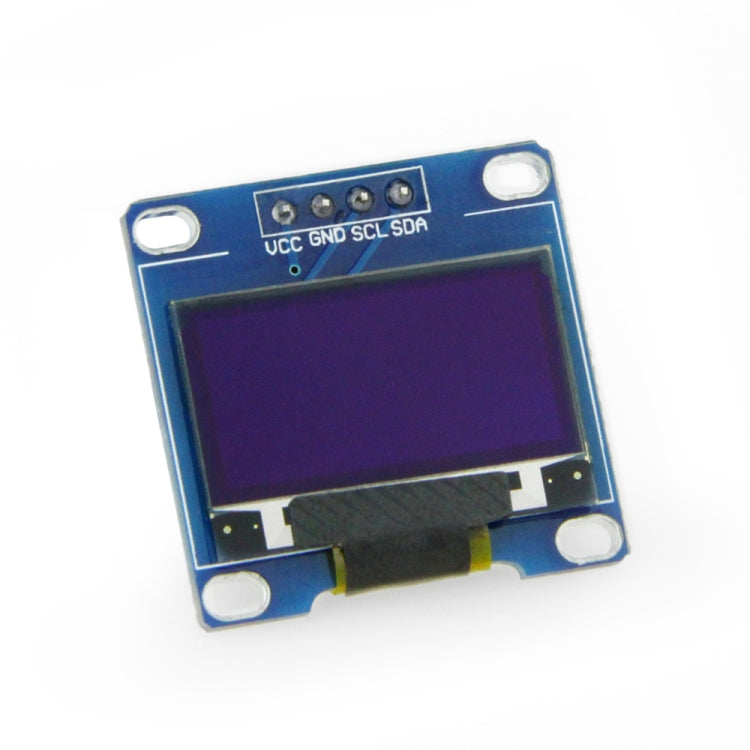

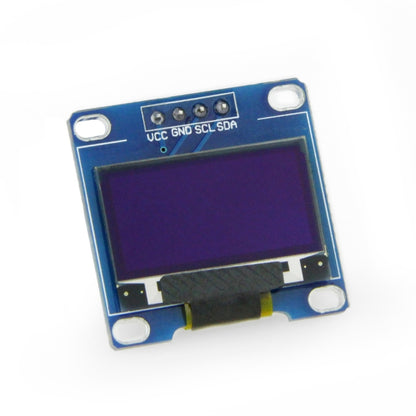

OLED description:
1. Size: 0.96 inches
2. High resolution: 128x64
3. Color: white
4. Viewing angle: >160 degrees
5.Driver IC: SSD 1306
6. Working temperature: -30~80 degrees Celsius
7. Module size (generous): 27.0mm x 27.0mm x 4.1mm
8. Support a variety of control chips: fully compatible with Arduino, 51 series, MSP 430 series, STM 32/2, CSR chips, etc. (a lot of examples are available for reference)
9. Wide voltage support: directly support 3.3V~5V DC power supply without any modification
10. Ultra-low power consumption: 0.04W in normal operation
11. IO port occupies the smallest display: IIC communication, as long as two IO ports
Features:
1. ESP 32 version: Rev1
2. WiFi
3. Bluetooth
4. 4MB pSRAM
5. 4MB flash memory
6. Three-dimensional antenna
product description:
1. Working voltage: 1.8~3.7V
2. Acceptable current: 10~14 mA
3. Transmitting current: 120 mA@+20 dBm
4. 90 mA@+17 dBm
5. 29 mA@+13 dBm
6. Working frequency: 433/470 MHz (433 HMz version) SX1278 /868m/915 m (868 MHz version) SX1276
7. Transmitting power: +20 dBm
8. Receiving sensitivity:
-139 dBm@Lora&62.5Khz&SF=12&146 bps
-136 dBm@Lora&125 Khz&SF=12&293 bps
-118 dBm@Lora&125 Khz&SF=6&9380 bps
-123 dBm@FSK&5 Khz&1.2Kbps
9. Frequency error: +/-15 kHz
10. FIFO space: 64 bytes
11. Data rate:
1.2k~300 Kbps@FSK
0.018K~37.5Kbps@Lora
12. Modulation method: FSK, GFSK, MSK, GMSK, Lora TM, OOK
13. Interface form: SPI
14. Sleep current: 0.2uA
15. 1.5uA@Idle
16. Working temperature: -40 degrees Celsius-+85 degrees Celsius
17. Digital RSSI function
18. Automatic frequency correction
19. Automatic gain control
20. Low pressure detection
21. Fast wake-up and frequency hopping
22. Highly configurable packet handler
Global Positioning System:
1. GPS module neo-6m, 3V-5V power supply universal
2. The predetermined module with ceramic antenna, super signal
3. Save configuration parameter data EEPROM
4. With data backup battery
5. With LED signal indicator
6. The default baud rate: 9600
power:
1. TP 5400
2. 1A battery management
3. LED indicator: there are 4 LEDs to display the battery status in real time
4. USB
5. CP 2104-GMR
6. Pre-Flash firmware
OLED description:
1. Size: 0.96 inches
2. High resolution: 128x64
3. Color: white
4. Viewing angle: >160 degrees
5.Driver IC: SSD 1306
6. Working temperature: -30~80 degrees Celsius
7. Module size (generous): 27.0mm x 27.0mm x 4.1mm
8. Support a variety of control chips: fully compatible with Arduino, 51 series, MSP 430 series, STM 32/2, CSR chips, etc. (a lot of examples are available for reference)
9. Wide voltage support: directly support 3.3V~5V DC power supply without any modification
10. Ultra-low power consumption: 0.04W in normal operation
11. IO port occupies the smallest display: IIC communication, as long as two IO ports
Specifications
- Brand
- TTGO
- Product type
- Module
- SKU
- DIY6148
- Dispatch facility
- International Fulfillment Center (China)
