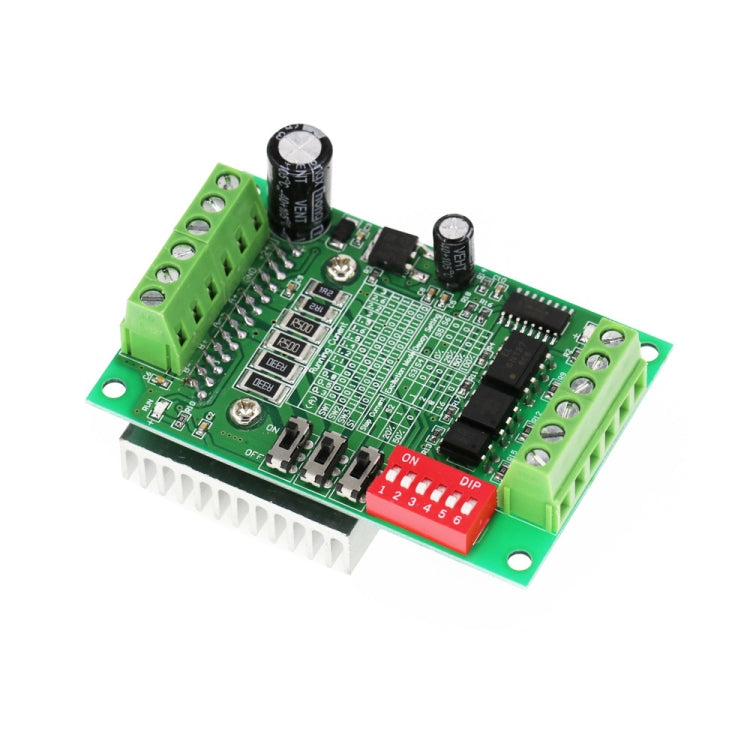

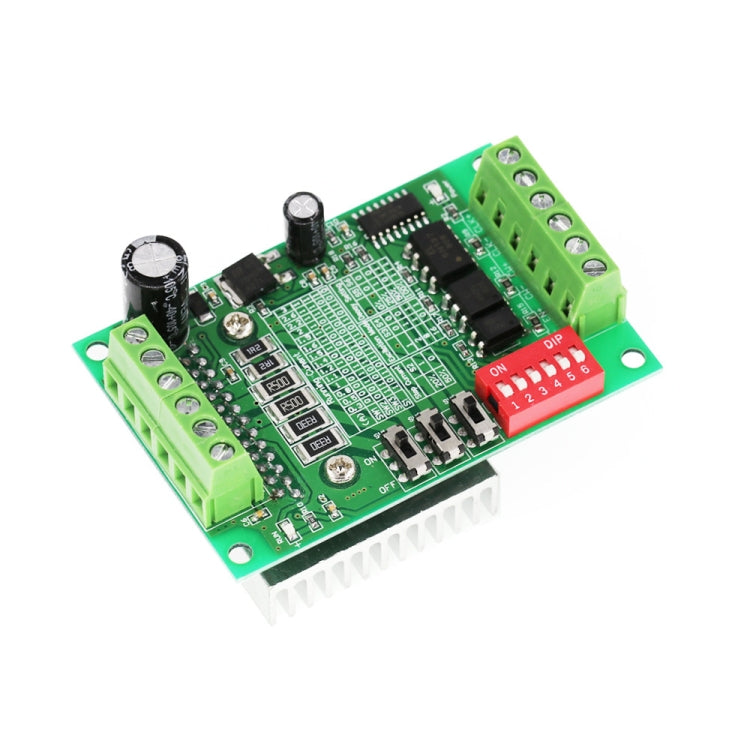

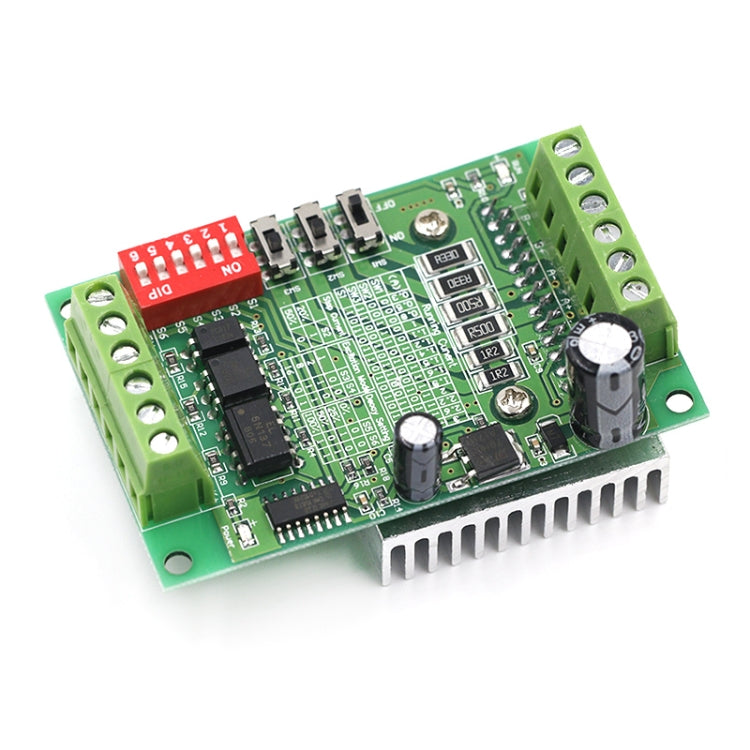

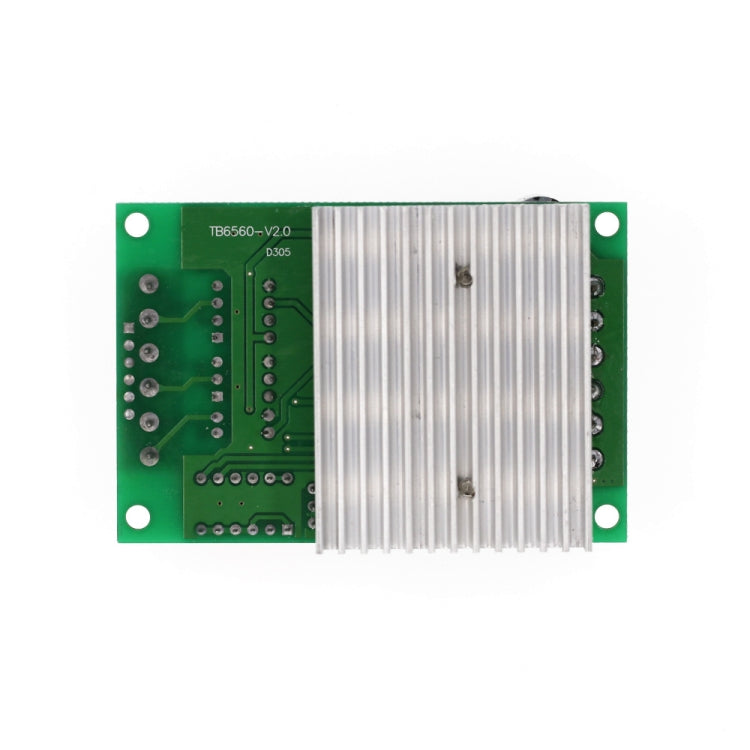

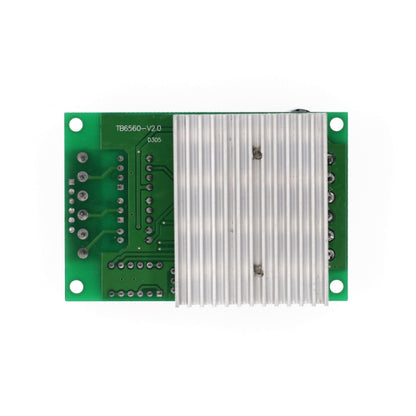

TB6560 3A 10V-35V Stepper Motor Driver Controller Board(Green)
TB6560 3A 10V-35V Stepper Motor Driver Controller Board(Green)
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R124.47/mo 3 months
- R62.94/mo 6 months
- R33.22/mo 12 months
- From R124.47/month over 3 months, or as low as R33.22/month over 12. Total repayable over 12 months: R398.64. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes Included
Read shipping & tax policy ›This product is priced for DDP import handling. KifTech handles applicable import costs before delivery:
- Import duties – Included where applicable
- Customs fees – Handled before delivery
- Shipping – Free on orders over R750. R49 standard rate below R750.
✓ The checkout total shows the product and shipping amount you pay to KifTech. No separate import duty payment should be required on delivery.
Free Shipping over R750
R49 below R750. Taxes included. Read policy ›
Estimated Arrival
8–17 business days after order placement.
Delivery Timeline
Order Processing (0–3 days)
Order verified and dispatched. Tracking details provided by email.
Transit (8–14 business days)
Package is shipped internationally to South Africa via Buffalo Logistics.
30-day refund / replacement
Read full return policy ›Shipping Protection
Read full policy ›Encrypted Checkout
Read privacy policy ›Checkout uses encrypted payment processing to help protect your personal and payment details.
Accepted via PayFast:
Product Overview
1. The working voltage is DC 10V-35V. It is recommended to use a switching power supply DC24V for power supply.
2. Using 6N137 high-speed optical coupling to ensure high speed without losing step.
3. Using Toshiba TB6560AHQ chip, there are built-in low-voltage shutdown, overheating shutdown and overcurrent protection circuits to ensure performance.
4. The rated output (max) is: +/-3A, with a vertex value of 3.5A.
5. It is suitable for two-phase/four-phase/four-wire/six-wire stepping motor with 42,57 stepping within 3A, but not suitable for stepping motor with more than 3A.
6. Automatic half-flow function.
7. Subdivision: Full step, half step, 1/8 step, 1/16 step, maximum 16 subdivision.
8. Dimensions: Width 50 x length 75 x height 35 (MM)
9. Weight: 83G
10. This module does not have any protection circuit, so you must be very careful when using it, otherwise the chip is easy to burn out.
Features in similar products:
1. The current level can be adjusted step by step to meet your multiple application requirements.
2. Automatic half flow is adjustable.
3. Using 6N137 high-speed optical coupling to ensure high speed without losing step.
4. The board printing instructions can be operated without manual.
5. Adopt thick and densely toothed radiator for good heat dissipation.
