Quartz Pendulum Clock Movement DIY Movement Kits with 2 Pairs Hands

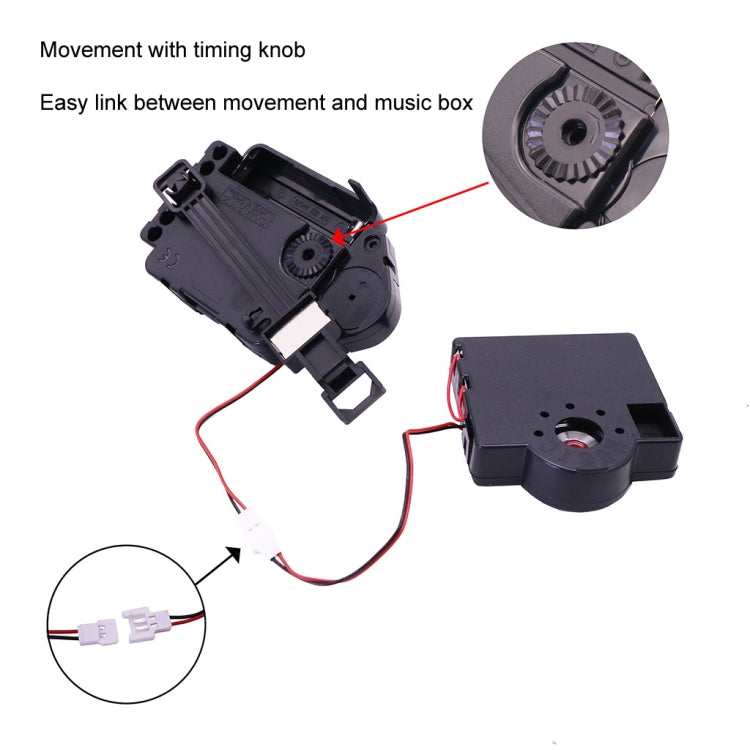

A complete DIY quartz pendulum clock movement kit with chime, music box, pendulum, and two sets of hands. The chime triggers on the whole hour and the music box silences automatically from 10pm to 5am so it doesn't wake anyone. Suits clock panels 2–6mm thick.

Batteries not included — the movement uses 1 x AA, the music box uses 2 x AA (both 1.5V).

Specifications

• Movement size: 110 x 56 x 20mm

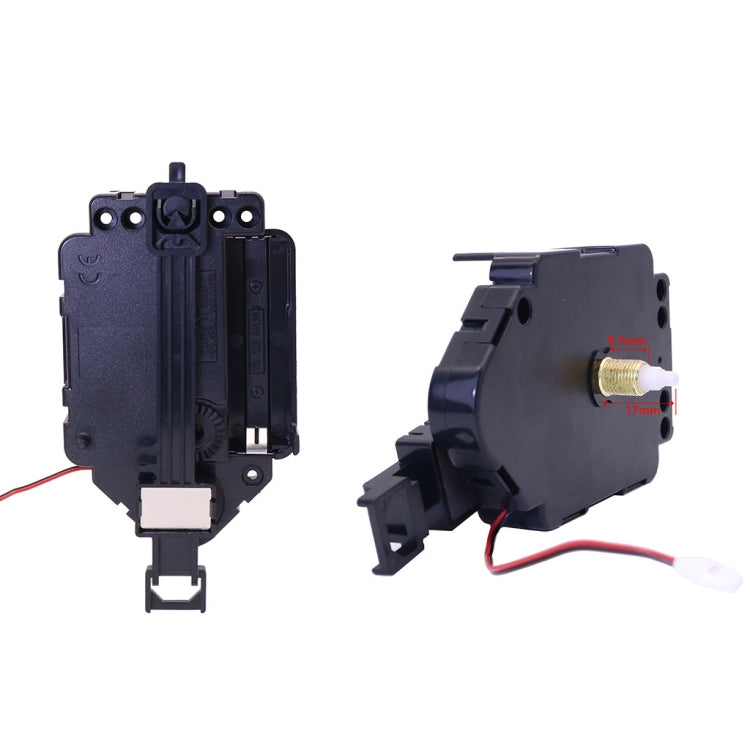

• Shaft: total 17mm, thread height 9.7mm
• Panel thickness: 2–6mm
• Music box: 60 x 56mm, night-silence 10pm–5am

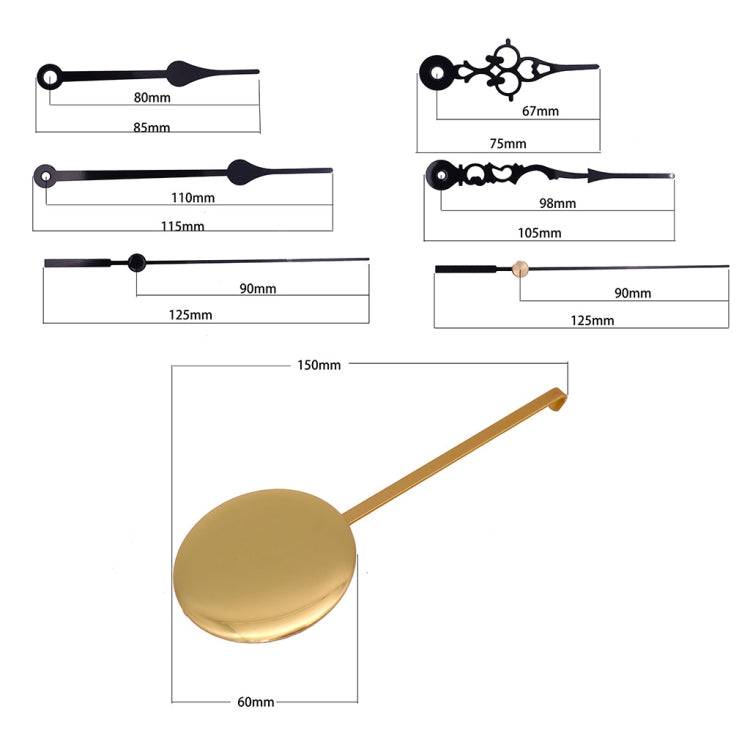

• Pendulum: gold, 60mm diameter weight, 150mm total length
• Hour hand: 80mm / 67mm (2 pairs)
• Minute hand: 110mm / 98mm (2 pairs)
• Second hand: 90mm / 90mm, for clocks over 250mm
• Hand colour: black metal
• Power: 1 x AA (movement), 2 x AA (music box) — not included

In the box

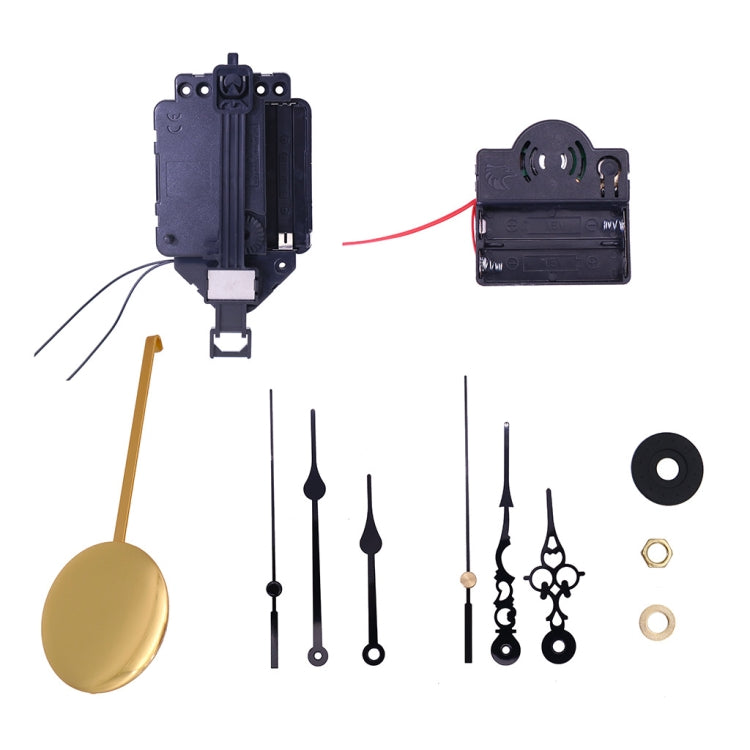

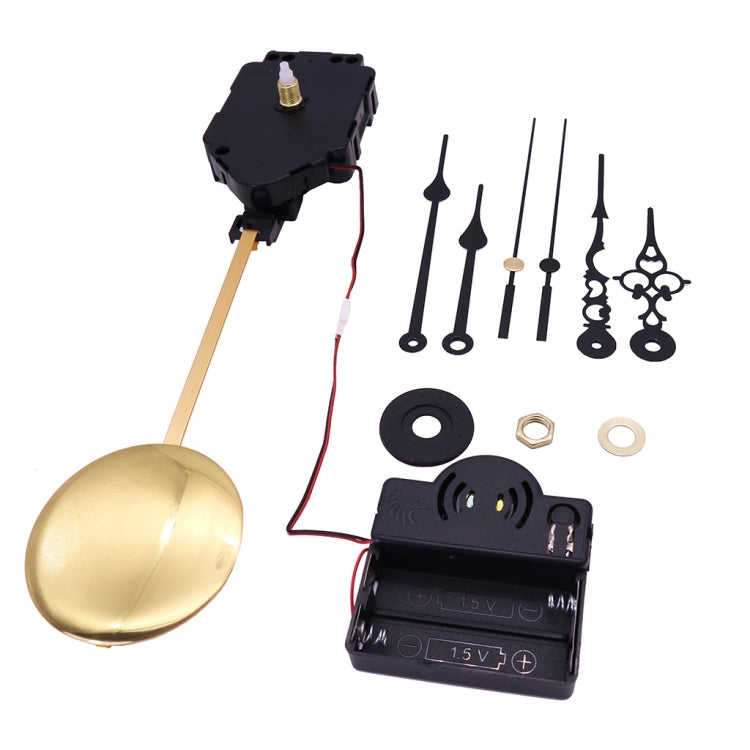

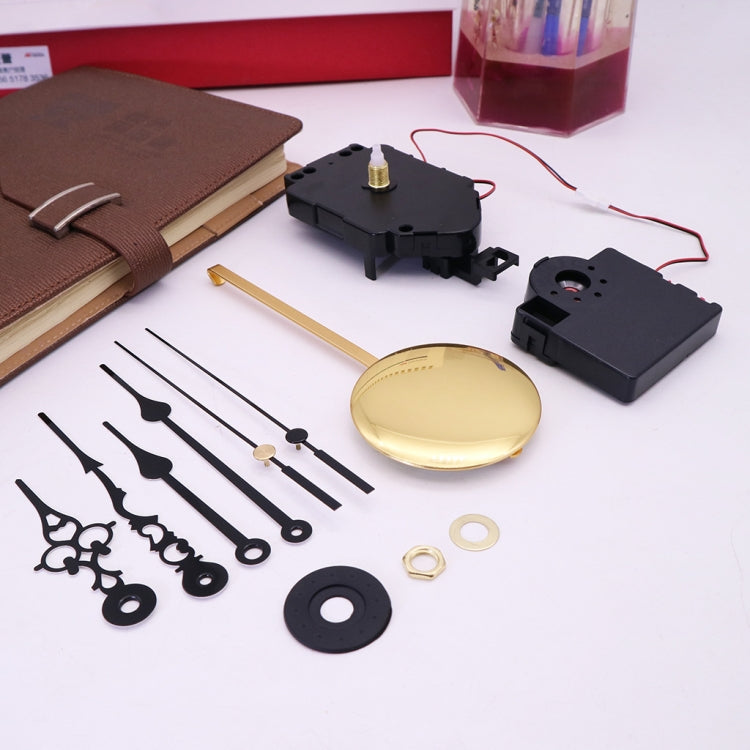

• Pendulum movement x 1, music box x 1, gold pendulum x 1, hour hands x 2, minute hands x 2, second hands x 2, rubber pad x 1, washer x 1, nut x 1
