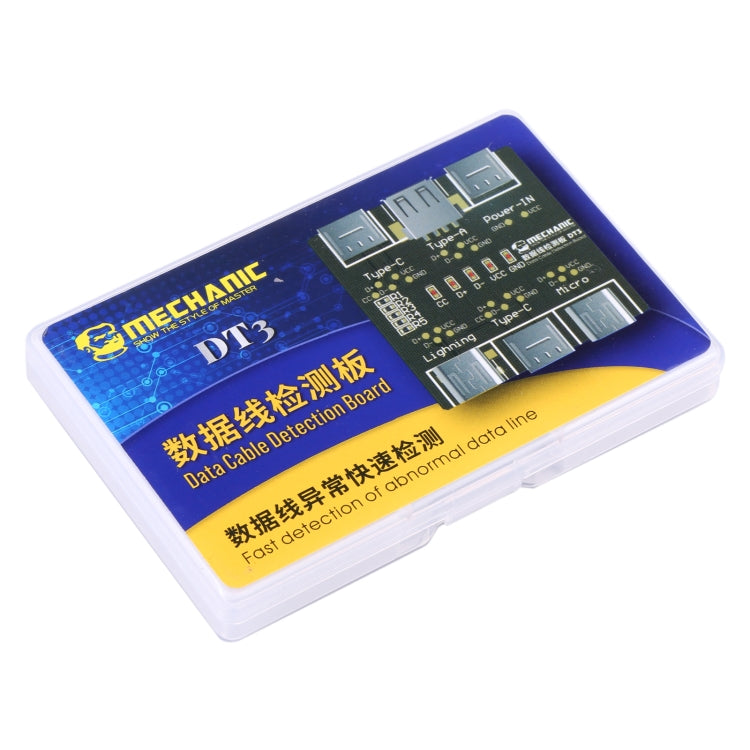

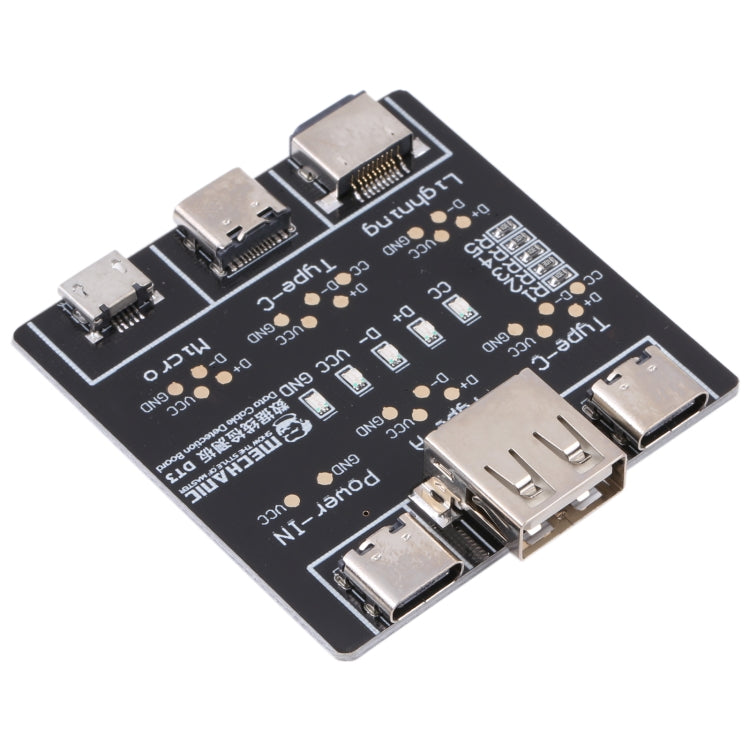

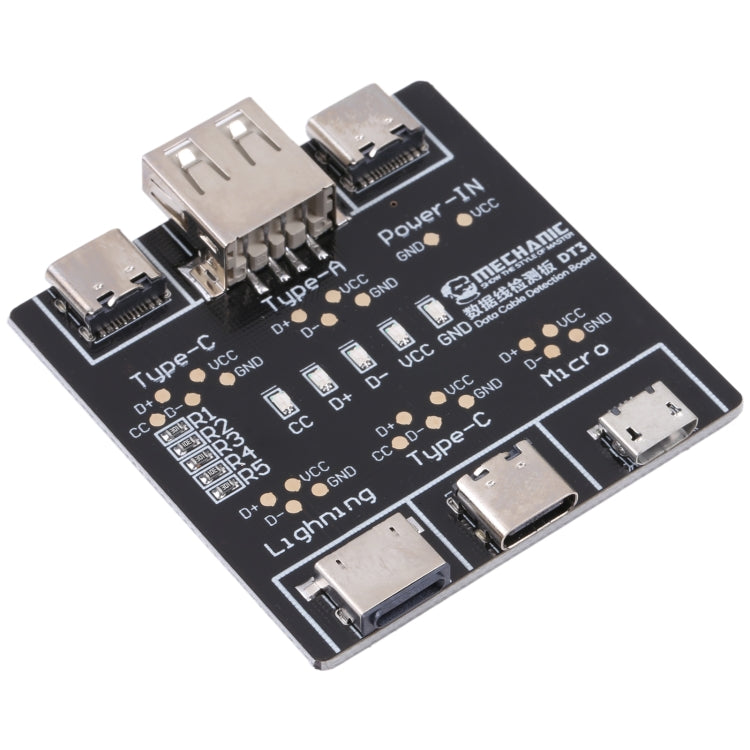

MECHANIC DT3 USB Data Cable Detection Board Short Circuit On-Off Switching Tester
MECHANIC DT3 USB Data Cable Detection Board Short Circuit On-Off Switching Tester
In Stock
Processed in 0–3 calendar days
Regular price
R 249.00
Regular price
Sale price
R 249.00
Shipping R49 · free over R750
Pay monthly with
Pay with Mobicred
Mobicred is a revolving credit facility. One monthly account payment covers your purchases.
- Interest and fees apply. Your repayment amount, interest rate and applicable fees are set out in your Mobicred agreement.
- Credit is subject to approval and an affordability assessment. You need an approved Mobicred account and sufficient available credit.
Choose Payfast at checkout, then select Mobicred on the Payfast payment page where it is available.
Mobicred credit is provided by RCS Cards Proprietary Limited, trading as Mobicred. RCS is a registered credit provider (NCRCP38). Read Mobicred terms and conditions
Quantity
Free Shipping over R750
R49 on orders of R750 or less. Duties included, no VAT collected. Read policy ›
Delivery timeline
1. Order processing (0–3 calendar days)
Order verified and dispatched from our International Fulfillment Center (China). Tracking details are provided by email.
2. Transit (8–14 business days)
Your package is shipped to South Africa through KifTech’s Delivered Duty Paid (DDP) delivery process. The shipping method is shown in your cart and confirmed at checkout.
Shipping protection Read full policy ›
Late Delivery
If your order arrives later than the estimated timeframe, you may request a R20 store credit after delay verification.
15-calendar-day tracking
If your order has not been delivered and tracking shows no movement for 15 consecutive calendar days after dispatch, contact us. After verification and investigation, we may offer a free reshipment or refund.
30-calendar-day non-delivery
If your order has not been delivered within 30 calendar days after dispatch, contact us. After verification, you may choose a refund to your original payment method or a replacement shipment.
Duties included at checkout, no VAT collected
Read shipping and duties policy ›KifTech uses a Delivered Duty Paid (DDP) delivery process for all orders. Applicable import duties and customs fees are included in the price shown at checkout and handled before delivery. No VAT is collected from you at checkout.
- Import duties – Included in the price shown at checkout where applicable
- Customs fees – Included in the price shown at checkout and handled before delivery
- Shipping – Free on orders over R750. R49 standard rate on orders of R750 or less.
✓ The checkout total shows the product amount and any shipping charge. Applicable import duties and customs fees are included in the price shown at checkout. No VAT is collected from you at checkout. No separate duties or customs-fee payment should be required on delivery.
30-day returns & 6-month fault cover
Read full return policy ›Refund timeline
Processed to your original payment method within 5 calendar days after your return is received and inspected.
Shipping fee
Return shipping support is provided for confirmed faulty items. Customers cover return shipping for change-of-mind returns. No restocking or handling fee is deducted from the refund of change-of-mind returns. The original shipping fee is not refunded for change-of-mind returns. Where a refund is given, the original shipping fee is refunded as well as the item price.
Exchanges
We do not process direct exchanges for change-of-mind returns. If you would like a different item, model, colour, size, or variant, return the original item under the Change-of-Mind Returns terms and place a new order for your preferred item. Faulty, damaged, or incorrect items may be replaced at no additional shipping cost once the return has been reviewed and approved. Where applicable, your rights to a repair, replacement, or refund remain unchanged.
Warranty
7-day cooling-off for online orders (refund of the price paid, less return costs; the original shipping fee is not refunded), 30 days for unused change-of-mind returns, plus a standard 6-month warranty for manufacturing faults.
Encrypted Checkout
Read privacy policy ›Checkout uses encrypted payment processing to help protect your personal and payment details.
Accepted payment methods:
Description

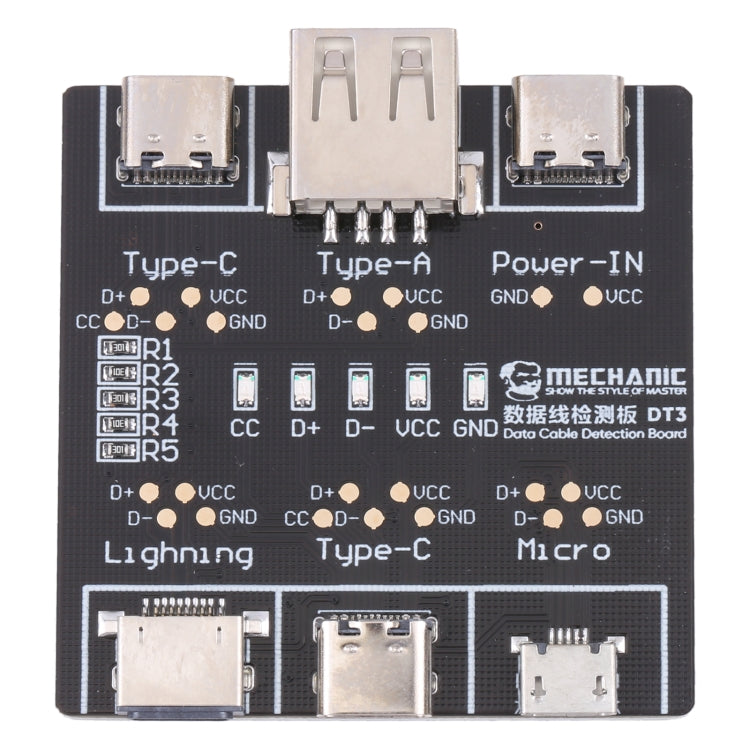

1. Interface Type:USB / Type-C 1 / Type-C 2 / USB-Micro / Lighting
2. Power Supply Port Type:Type-C
3. Output Current:1A
4. Output Voltage:5V
5. Product Size:About 48.5x45mm
6. Net Weight:About 12g
7. The measurement allowed error is +/- 1.0-2.0cm

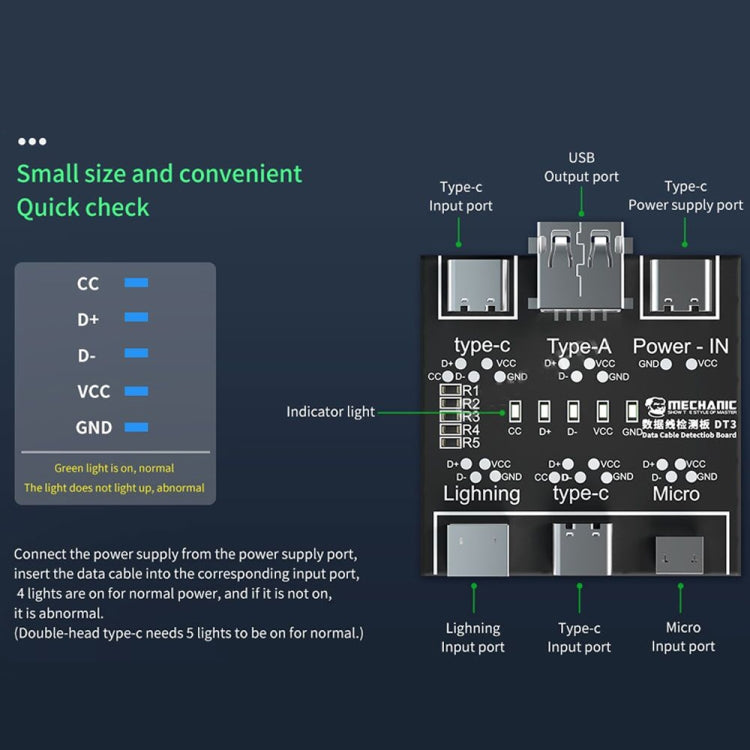

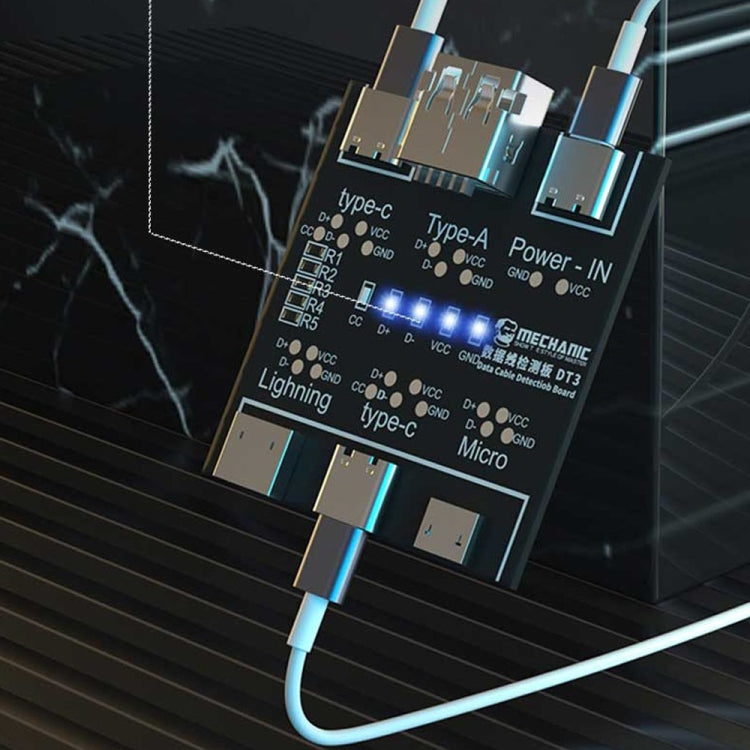

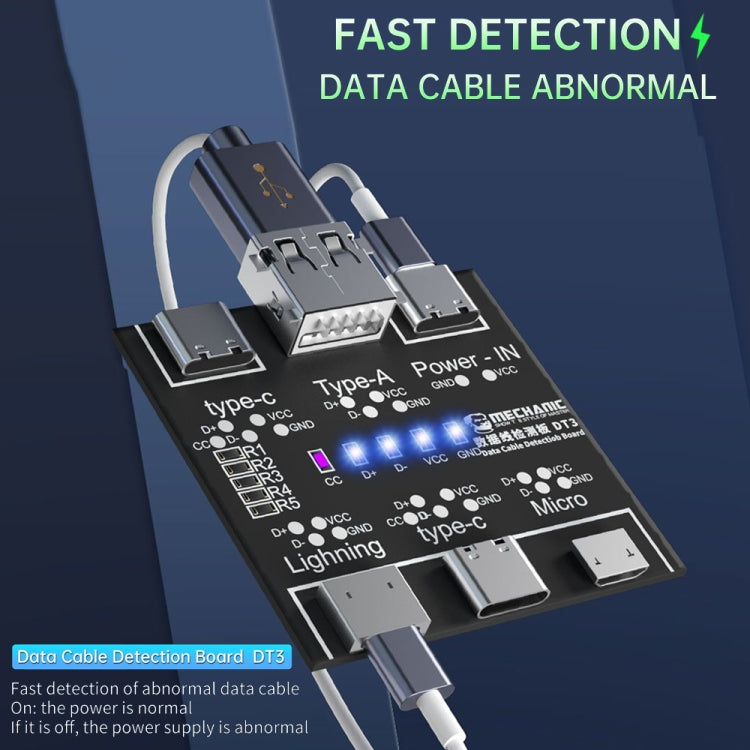

8. All 4 indicator lights are on, then the data line is normal (double-head type-C data line requires all 5 indicator lights to be on).
9. If VCC or GND is not lit, it indicates that the charging function of the data line is abnormal.
10. D+ or D- is off, indicating that the data transmission function is abnormal.
11. CC is dedicated to double-head type-C data line detection. When testing other data lines, the light will not turn on.
12. The operation is simple, the detection is convenient, and the detection efficiency of the data line is improved.
13. Uncompromising performance in an ultra-light body,heavyweight performance without the weight.
2. Power Supply Port Type:Type-C
3. Output Current:1A
4. Output Voltage:5V
5. Product Size:About 48.5x45mm
6. Net Weight:About 12g
7. The measurement allowed error is +/- 1.0-2.0cm
8. All 4 indicator lights are on, then the data line is normal (double-head type-C data line requires all 5 indicator lights to be on).
9. If VCC or GND is not lit, it indicates that the charging function of the data line is abnormal.
10. D+ or D- is off, indicating that the data transmission function is abnormal.
11. CC is dedicated to double-head type-C data line detection. When testing other data lines, the light will not turn on.
12. The operation is simple, the detection is convenient, and the detection efficiency of the data line is improved.
13. Uncompromising performance in an ultra-light body,heavyweight performance without the weight.
Specifications
- Brand
- MECHANIC
- Product type
- Test Tools
- SKU
- SPT0611
- Dispatch facility
- International Fulfillment Center (China)
Compatibility & fit
Product checks
Check fit before you buy
Review model, version, connector, size, photos, specifications and package contents before checkout.
Compatibility checklist
- Match the exact product, device, model, size, colour and variant shown in this listing.
- Brand names are used to identify compatibility unless the listing clearly states otherwise.
- This may be a repair or replacement part. Match the exact model, version, connector and part type before ordering.
- Professional installation may be required.
- For powered products, check voltage, wattage, current, connector type, charger compatibility and plug type before use.
