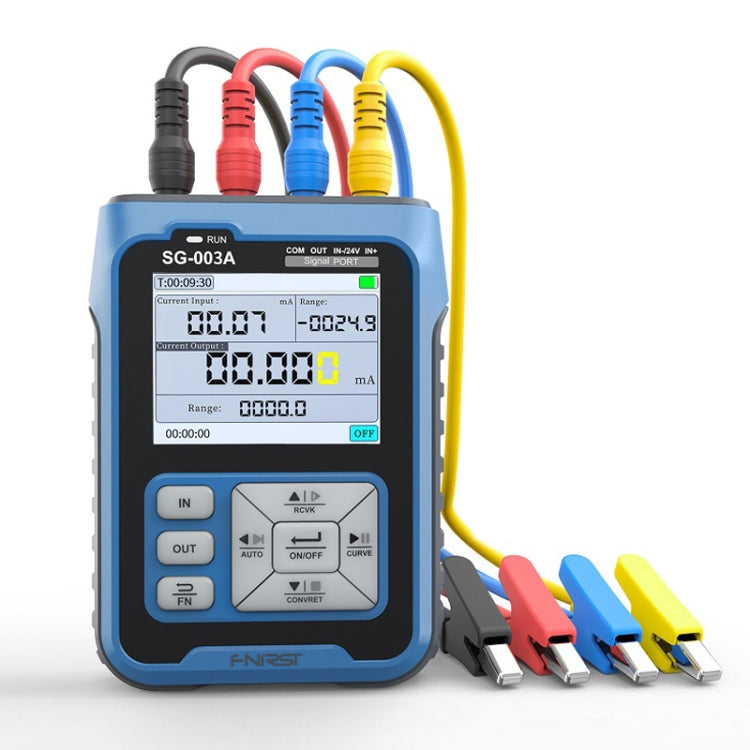

FNIRSI SG-003A Multifunctional PWM Signal Generator 4-20ma Voltage Current Calibrator, EU Plug(Blue)
FNIRSI SG-003A Multifunctional PWM Signal Generator 4-20ma Voltage Current Calibrator, EU Plug(Blue)
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R582.15/mo 3 months
- R294.37/mo 6 months
- R155.36/mo 12 months
- From R582.15/month over 3 months, or as low as R155.36/month over 12. Total repayable over 12 months: R1864.32. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes Included
Read shipping & tax policy ›This product is priced for DDP import handling. KifTech handles applicable import costs before delivery:
- Import duties – Included where applicable
- Customs fees – Handled before delivery
- Shipping – Free on orders over R750. R49 standard rate below R750.
✓ The checkout total shows the product and shipping amount you pay to KifTech. No separate import duty payment should be required on delivery.
Free Shipping over R750
R49 below R750. Taxes included. Read policy ›
Estimated Arrival
8–17 business days after order placement.
Delivery Timeline
Order Processing (0–3 days)
Order verified and dispatched. Tracking details provided by email.
Transit (8–14 business days)
Package is shipped internationally to South Africa via Buffalo Logistics.
30-day refund / replacement
Read full return policy ›Shipping Protection
Read full policy ›Encrypted Checkout
Read privacy policy ›Checkout uses encrypted payment processing to help protect your personal and payment details.
Accepted via PayFast:
Product Overview
1. It is mainly used for debugging of industrial site PLC, process instrument, electric valve, etc.
2. Friendly operation interface is easy to use
3. Small size, light weight, long standby time, high precision, easy to carry when going out to work
4. Adjustable button backlight and high-definition TFT color LCD screen make it more convenient for users to operate at night and during the day
5. With conventional signal input and output functions
6. Voltage and current have automatic output function, and three modes of single rise, single fall and cycle can be selected

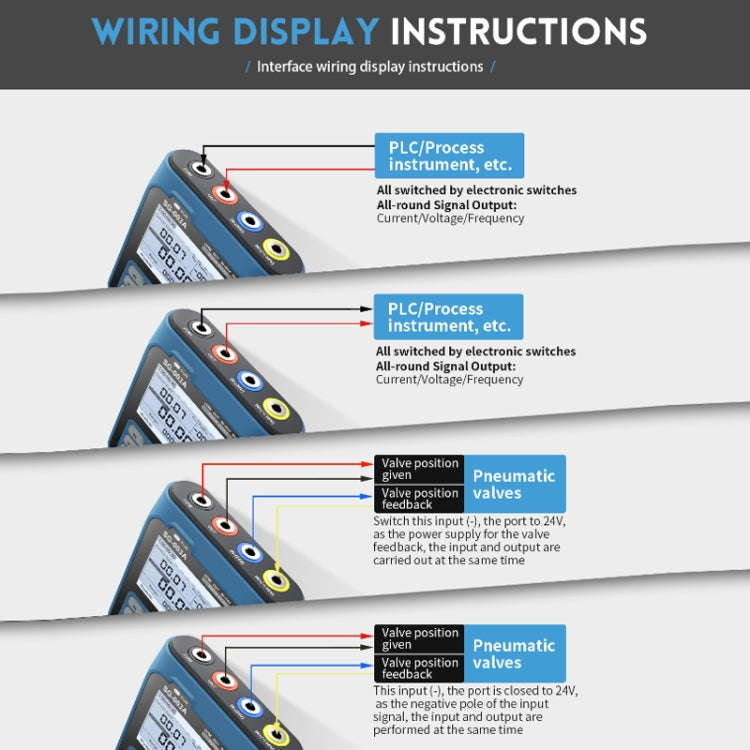

7. With input and output conversion, voltage conversion active current mode, passive mode and current conversion voltage mode
8. The output has a custom function, and the upper and lower limits of the output can be set arbitrarily
9. Voltage input diagram, current input diagram, frame rate is 10 frames
10. PWM output can set frequency and duty cycle separately

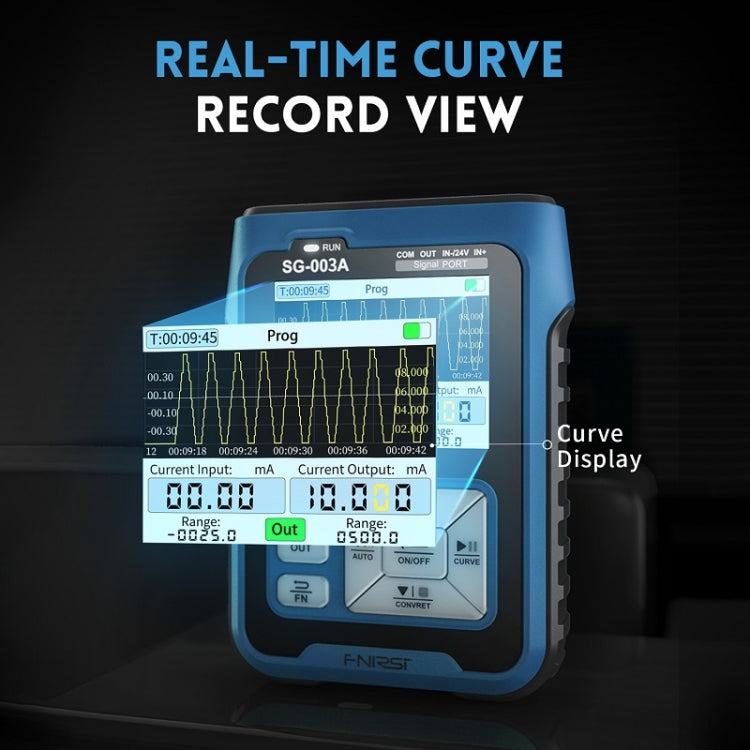

11. Real-time curve: real-time observation of voltage and current changes
12. Powered by large-capacity lithium battery, charged by Type-c interface (5V)
13. Lithium battery capacity 3000mah, super long working time

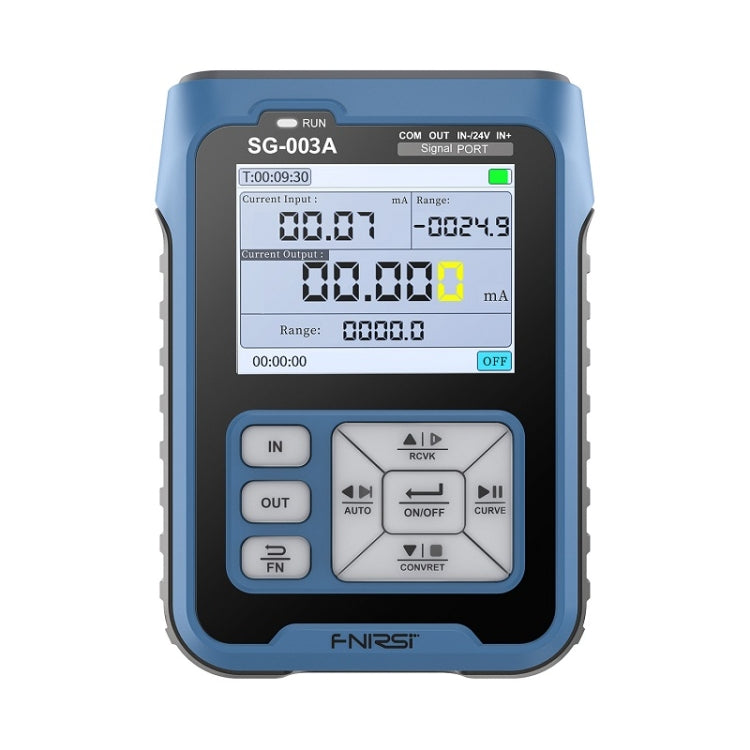

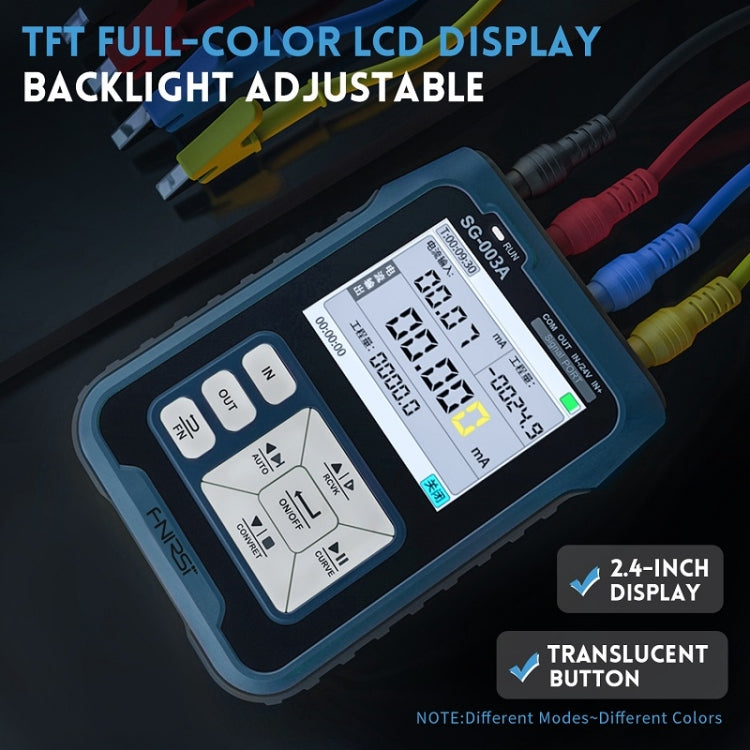

14. High-definition TFT color LCD screen, more eye-catching reading, with a resolution of 240x320
15. Power consumption (MAX): 0.32W
16. Standby time: 26 hours The use time varies according to the usage (20mA continuous output can be 8-10 hours)
17. Internal reverse and overcurrent protection, protection voltage 30V

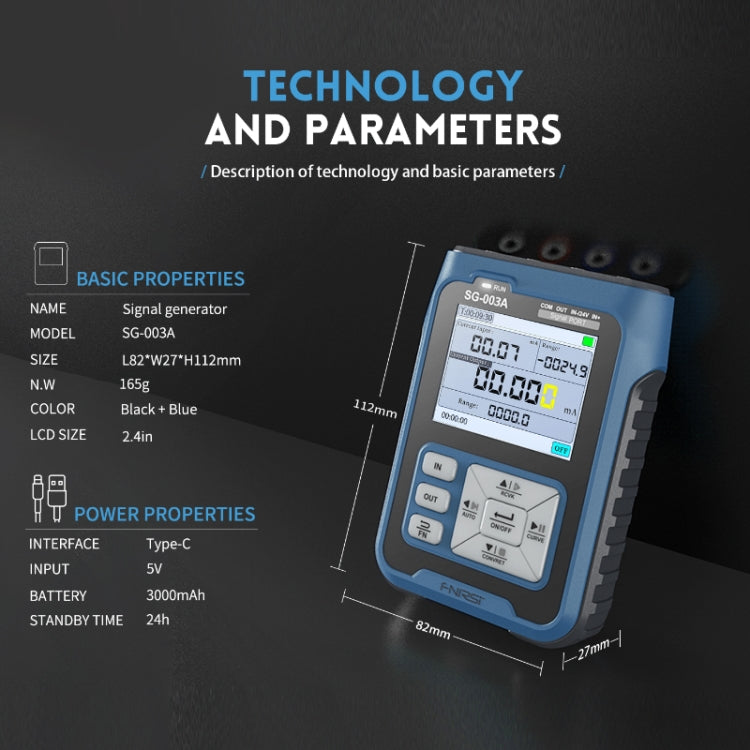

18. Dimensions: 92x72x30mm
19. Weight: 165 grams

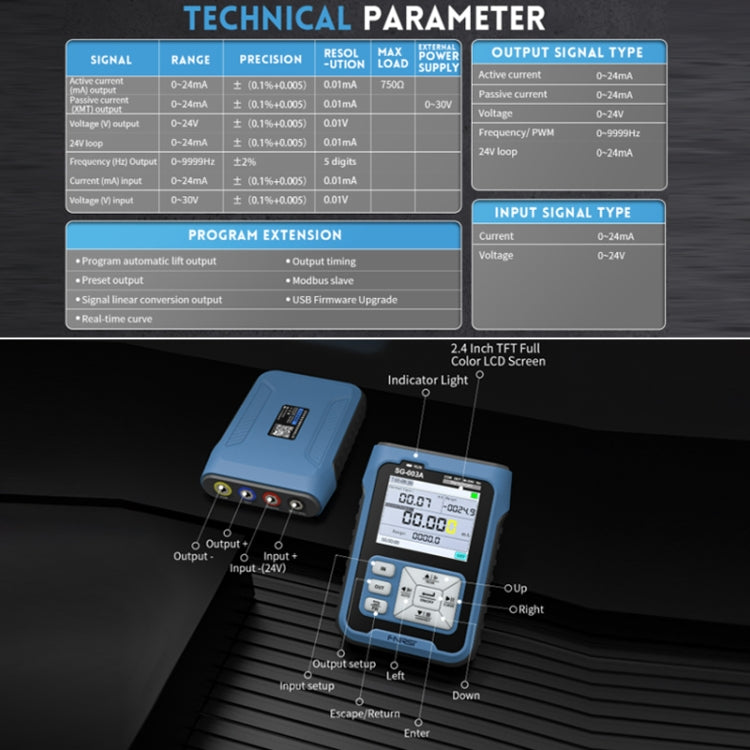

Active current output:
1. Range: 0~24mA
2. Resolution: 0.01 mA
3. Load (MAX): 750 ohms
Passive current output:
1. Range: 0-24mA
2. Resolution: 0.01 mA
3. The external power supply can reach 30V
Voltage output:
1. Range: 0-24V
2. Resolution: 0.01v
3. Current (MAX): 30mA
24V voltage output:
1. Drive current: 24mA
2. Resolution: 0.01mA
Current input measurement:
1. Range: 0-24mA
2. Resolution: 0.01 mA
3. Input impedance: 100 ohms
Voltage input measurement:
1. Range: 0-30V
2. Resolution: 0.01V
3. Input impedance: 2 milliohms
PWM output (frequency):
1. Range: 0-9999Hz
