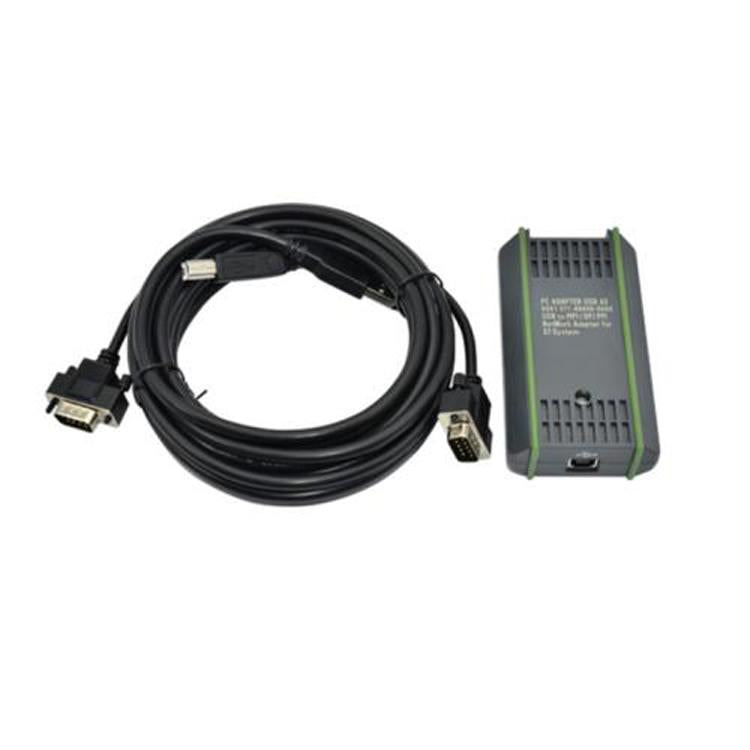

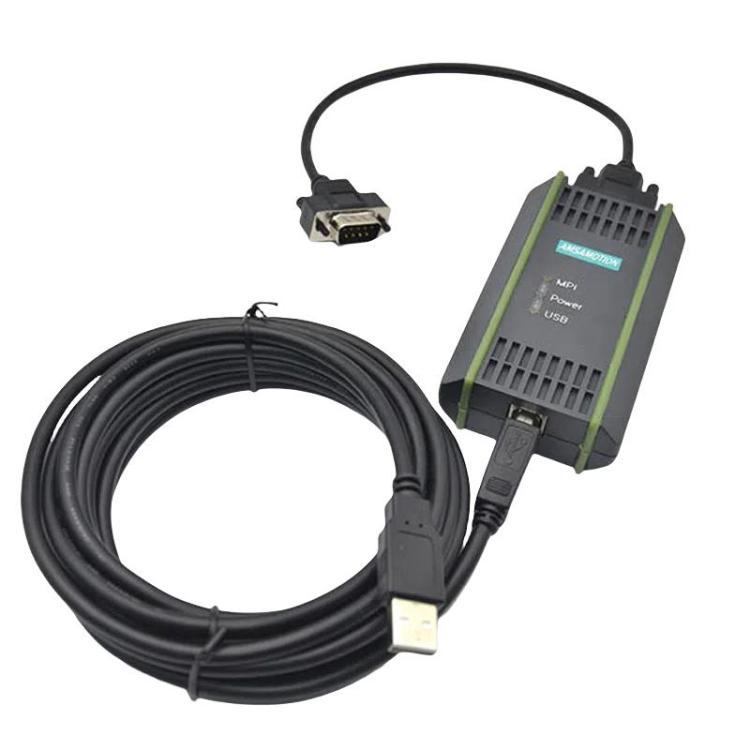

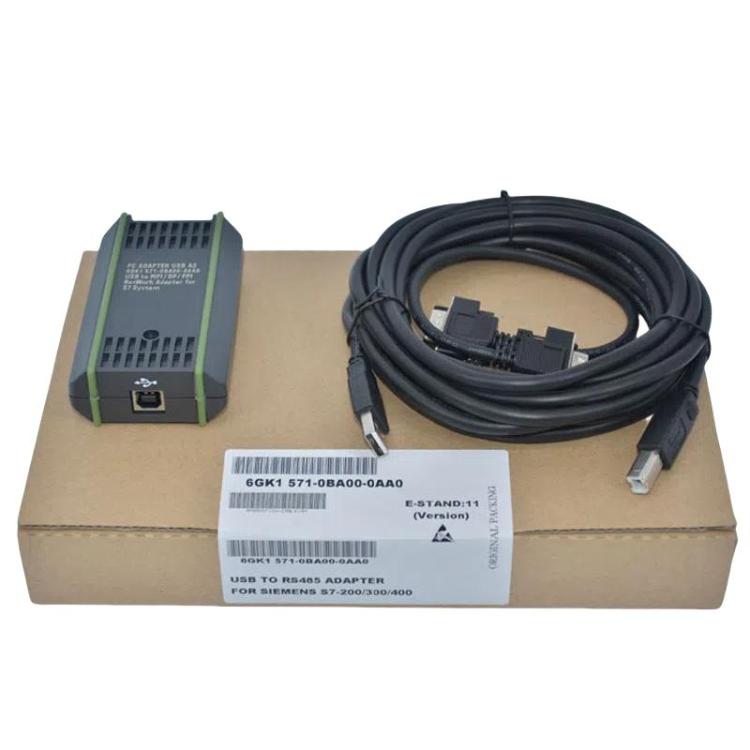

AMSAMOTION USB-MPI Programming Cable Converter For Siemens S7-200/S7-300/S7-400 PLCs 6GK1571-0BA00-0AA0

1. The MPI cable is protected by optical couplers, which not only provide protection for the circuit but also reduce external signal interference, ensuring communication quality. It supports MPI, PPI, and DP port programming. The baud rate is adaptive.
2. Isolated industrial-grade programming cable. The isolation chip mainly serves to protect and stabilize communication. The isolated cable is more stable during communication than the non-isolated one, with faster data transmission and stronger resistance to external interference. It is generally used in environments with high interference, such as frequency converters and modules in industrial sites with significant interference.
3. Suitable for Siemens S7-200-300/400 PLC programming adapter cables. 5-meter with a communication indicator light. Directly use the USB interface in the SIMATIC Manager software. Supports PG/PC master station.
4. Supports baud rates of 19.2 Kbps, 187.5 Kbps, 500 Kbps, and 1.5 Mbps for DP master station communication (the MPI port automatically adapts the communication rate).
5. Supports PPI/MPI/DP multi-master station communication.
6. Suitable for communication of some Siemens touch screens (TP170/177/270, OP25/35/77, MP177/270/277B, etc.).
7. Supports communication for 200 PLC and ET200.
8. Supports programming for the 840D numerical control system.
9. No driver required (no driver installation in V5.5), no need to generate a serial port, directly select USB.
10. Full signal photoelectric isolation, stronger anti-interference, and more stable communication.
11. System: Supports XP and Win 7 (32/64-bit).
12. Uses PTC self-recovery fuse, which provides excellent protection in cases of overvoltage, overcurrent, and short circuit.
